High filtration efficiency absolute rating 3 micron PP filter bag filter housing for coconut water milk oil filtration

High filtration efficiency absolute rating 3 micron PP filter bag filter housing for coconut water milk oil filtration

Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Stainless steel Bag filter housing
  •
+86 13316223340
info@lyfilter.com
+86 020-34460508
+86 020-34425655

Our company always insists on product quality is life, our aim is to provide more professional and attentive services for our global customers.

Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Lvyuan / OEM
Warranty:
Unavailable
After-sales Service Provided:
Online support
Product name:
filter bag housing
housing material:
ss304, ss316L
bag filters quantity:
Single or multi bags customized
Bag size:
180*450mm or 180*810mm, other
Inlet & Outlet type:
Flange / thread connection
Filter bag Material:
PP, PE, customized
Max. working pressure:
100/150/300 Psi
Usage:
liquid filtration
Package:
Wooden case
housing clousure by:
quick bolt, clamp, flange
Supply Ability
Supply Ability:
500 Piece/Pieces per Week single bag filter housing
Product Description

               High filtration efficiency absolute rating 3 micron PP filter bag filter housing for coconut water milk oil filtration

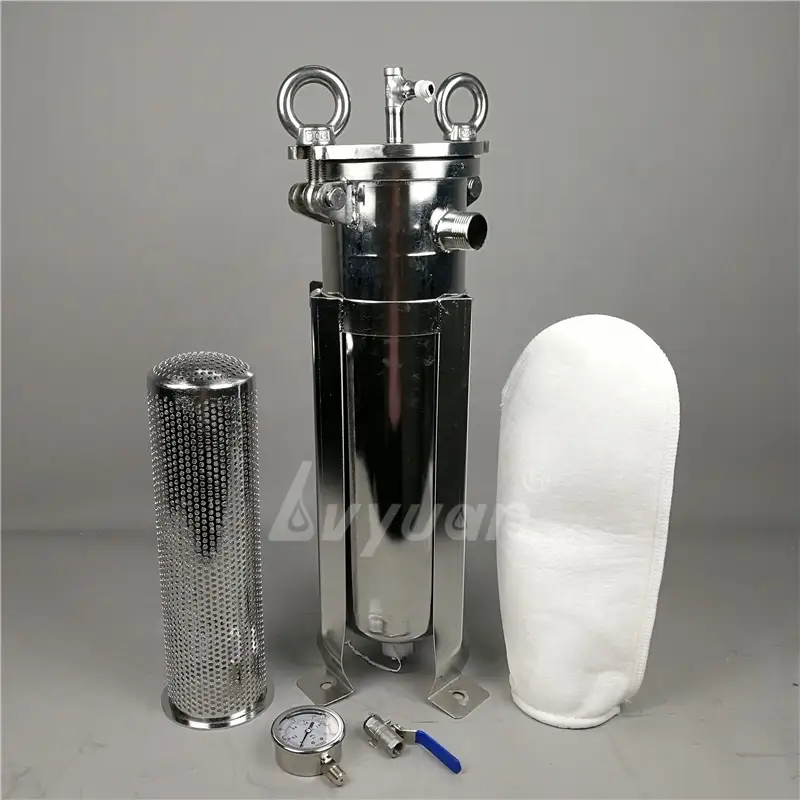

Bag filter is often characteristic of high flow rate and long service life. Bag filter is a widely used for liquid filtration, it can remove the particles of different size from liquid, in order to achieve liquid filtration, purification, separation, recovery purposes. It consists of three parts: bag housing, supporting basket and filter bags. According to flow rate, you may use multiple bags in a bag housing. First, the liquid enter into the housing from the inlet, which may placed in the side or on the top, and then flow into the filter bag which is braced by basket. Due to the impact pressure of fluid, the bag will extend and the liquid get evenly filtered through the bag and flow out of the outlet pipe. Impurities are trapped in the bag, the filtration process is complete.


Stainless steel bag filter housing Feature:
1. material: SS304, SS316L
2. stainless steel multi bag housing, the bag quantity can be customized from 1 to 18.
3. inlet and outlet port is flange connection.
4. Polished or sandblast external surface.


Stainless steel bag filter housing Application:

It's widely used in painting and dyeing, textile industry, beer, vegetable oil, pharmaceutical, Chinese herbal medicine, cosmetics, chemicals, petroleum products, chemicals, electroplating liquid, milk, mineral water, hot solvents, latex, industrial water, coatings and paints, sugar, molasses, resins, inks, industrial waste water, fruit juice, edible oil, waxes and other industries precision filtration, and more.


Filter Bags
Stainless Steel baskets
Filter Bag Specs
Bag type / Bag Number
Flow Rate (m3/H)
Filtration area (m2)
Filter bag Size
(DiameterxLength)
#1
20
0.25
7''x16'' (180mmx410mm)
#2
40
0.50
7''x32'' (180mmx810mm)
#3
6
0.10
4''x8.25'' (102mmx210mm)
#4
12
0.15
4''x14'' (102mmx356mm)
#5
25
0.30
6 7/8''x34'' (175mmx870mm)
Bag Filter housings

Single Bag filter housing Series, including Model BFL, BFH and BFC.

Multi bags filter housing, Model BFM multi-bag filter housing series:
