Application Scope
The
filter housing manufacturer produced by Lvyuan Water Purification Equipment is very popular in the market and is widely used in Manufacturing Machinery industry.Lvyuan Water Purification Equipment always adheres to the service concept to meet customers' needs. We are committed to providing customers with one-stop solutions that are timely, efficient and economical.
Company Advantages1. Owing to our hard-working professional production team, Lvyuan hi flow water filter replacement cartridge is of the finest craftsmanship.
2. Being high quality and cost competitive, high flow inline water filter of Lvyuan will surely become a highly marketable commodity.
3. With its large growth prospect, this product has helped Lvyuan won many long-term cooperation customers.

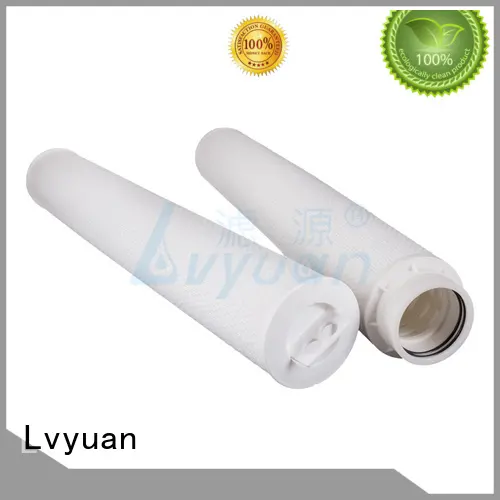

The LY-HFPK filter cartridge series is a replacement cartridges for the depth filtration and 2-1/2” diameter cartridges for the high flow applications. Pre-filtration for RO system is an example.The Lvyuan filter pleated design with high flow area and contamination removal capacity.
This design helps end user to reduce capital investment, save space, and easy to change-out and etc. Up to 1300LPM flow rate per filter cartridge reduced the number of filter cartridges and the dimension of the filter housing required. Water treatment volume per super-high flow filter cartridge equals to 10x40” length, 2-1/2” diameter filter cartridges. Inner O-ring insures no by pass and handle design makes the installation easier.
Product Feature
◪ High dirt-holding capacity and long service life.
◪ All contaminants can be removed within the cartridges because of the flow direction
◪ Up to 110m³/h flow rate per one filter cartridge for water filtration
◪ Max. 50% reduction of filter system
◪ Multi membrane layers for large dirt holding
◪ The sealing of o-ring assures the filtration integrity
◪ Handle design quick installation, safe and reduce the cost
Product Parameter
Product Name | HFPK Series high flow water filter cartridge PARK replacement (LY-HFPK) |
Filter media | PP/Polypropylene membrane |
Support | PP/Polypropylene |
Core/End cap | PP/Polypropylene |
Seal material | Silicone/EPDM/VITON/PTFE/NBR |
Outer diameter | 6”(152mm) |
Length | 20”, 40”, 60”, Customized |
Max.operating temperature | 82℃(Pleated PP) |
Micron rating(μm) | 1,4,5,10,15,20,40,70,100 |
Product Details
part.1
★ 100% pure polypropylene PP materials for wide chemical compatibility, reduce the filter elements quantities to large water flow rate.
part.2
★ Thermally bonded polypropylene and support media prevent particle leaking out, the large water flow rate is in one high flow filter element, super cost efficiency in the pre-treatment process of RO water plant.
Product Applications
Municipal tap water, Prefiltration of RO, Pre treatment of sea water desalination
Condensate water filtration, hot water recovery in power generation
API, solvents, and water filtration in BioPharm market
The filtration of bottled water, high fructose, edible oil, soft drinks and milk
Paints and coatings, Petrochemical, refineries, CD/DVD, magnetic media, Petrochemical, Refineries
Microelectronics, film, fiber and resin
Company Features1. Guangzhou Lvyuan Water Purification Equipment Co., Ltd., far ahead other similar enterprises, is popular among the customers.
2. Guangzhou Lvyuan Water Purification Equipment Co., Ltd. has advanced production equipment and strong technical force.
3. Based on the principle of hi flow water filter replacement cartridge is beneficial to the establishment of a more harmonious working environment in Lvyuan. Get info! high flow inline water filter is now a central notion in Guangzhou Lvyuan Water Purification Equipment Co., Ltd.'s service system. Get info! The realization of high flow filter cartridge is the mission of Lvyuan. Get info!
