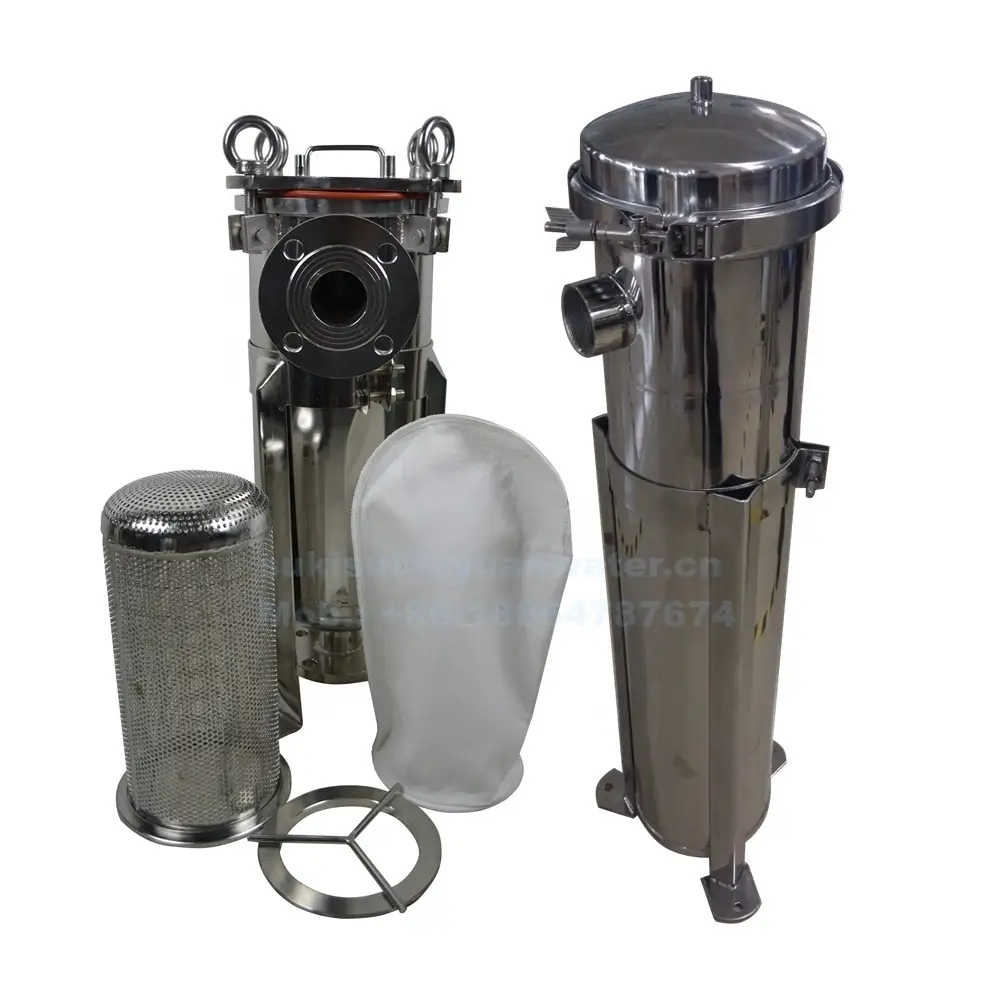

High pressure single stainless steel O ring filter ss bag filter housing with 1 micron oil bag filter PP/PE/Nylon/SS wire mesh 1
High pressure single stainless steel O ring filter ss bag filter housing with 1 micron oil bag filter PP/PE/Nylon/SS wire mesh 2
High pressure single stainless steel O ring filter ss bag filter housing with 1 micron oil bag filter PP/PE/Nylon/SS wire mesh 3
High pressure single stainless steel O ring filter ss bag filter housing with 1 micron oil bag filter PP/PE/Nylon/SS wire mesh 4
High pressure single stainless steel O ring filter ss bag filter housing with 1 micron oil bag filter PP/PE/Nylon/SS wire mesh 5
High pressure single stainless steel O ring filter ss bag filter housing with 1 micron oil bag filter PP/PE/Nylon/SS wire mesh 6
High pressure single stainless steel O ring filter ss bag filter housing with 1 micron oil bag filter PP/PE/Nylon/SS wire mesh 1
High pressure single stainless steel O ring filter ss bag filter housing with 1 micron oil bag filter PP/PE/Nylon/SS wire mesh 2
High pressure single stainless steel O ring filter ss bag filter housing with 1 micron oil bag filter PP/PE/Nylon/SS wire mesh 3
High pressure single stainless steel O ring filter ss bag filter housing with 1 micron oil bag filter PP/PE/Nylon/SS wire mesh 4
High pressure single stainless steel O ring filter ss bag filter housing with 1 micron oil bag filter PP/PE/Nylon/SS wire mesh 5
High pressure single stainless steel O ring filter ss bag filter housing with 1 micron oil bag filter PP/PE/Nylon/SS wire mesh 6

High pressure single stainless steel O ring filter ss bag filter housing with 1 micron oil bag filter PP/PE/Nylon/SS wire mesh

    oops...!

    no product data.

    Go to homepage
    Overview
    Quick Details
    Condition:
    New
    Applicable Industries:
    Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
    After Warranty Service:
    Online support
    Local Service Location:
    none
    Showroom Location:
    none
    Video outgoing-inspection:
    Provided
    Machinery Test Report:
    Provided
    Marketing Type:
    Ordinary Product
    Warranty of core components:
    1 Year
    Core Components:
    Engine
    Place of Origin:
    Guangdong, China
    Brand Name:
    Customized
    Material:
    Customized, SS304 / SS316L
    Weight:
    Customized
    Size:
    Customized
    Power:
    Customized
    Warranty:
    1 Year
    After-sales Service Provided:
    Online support
    Item Name:
    Single stainless steel O ring filter ss bag filter housing
    Filter bag material:
    PE/PP/NYLON/SS WIRE MESH
    Bag filter quantity:
    Single bag filter housing
    Surface treatment:
    Polished & Sandblast
    Seal o-ring:
    Silastic/NBR/EPDM/Viton
    Top cap installed type:
    Clamp type/Bolt type
    Inlet & Outlet type:
    Internal thread/Flange
    Connector type:
    222/226/DOE
    Packaging method:
    Export standard box

    Packaging & Delivery

    Selling Units:
    Single item
    Single package size:
    145X45X45 cm
    Single gross weight:
    30.000 kg
    Package Type:
    High flow stainless steel single filter SUS304 316 material 1 micron bag filter housing for water pre treatment system: Packaging: Export standard box/As required
    Lead Time :
    Quantity(Sets) 1 - 10 11 - 100 >100
    Est. Time(days) 5 10 To be negotiated
    High pressure single stainless steel O ring filter ss bag filter housing with 1 micron oil bag filter PP/PE/Nylon/SS wire mesh
    Product Description
    High pressure single stainless steel O ring filter ss bag filter housing with 1 micron oil bag filter PP/PE/Nylon/SS wire mesh 7

    High pressure single stainless steel O ring filter ss bag filter housing with 1 micron oil bag filter PP/PE/Nylon/SS wire mesh:

    LVYUAN stainless steel filter housing offers wide range of flow capacities & contaminant holding capacities. Cartridge filters are normally used as polishing filter in almost all process industries. Cartridge filter is constructed of filter housing, filter cartridges,tube sheet, positive sealing arrangement for cartridge depending upon type of cartridge & choice of end connections. Positive sealing arrangement for cartridge filter assures no particle migration or fiber migration, even after high differential pressures.

    Product name
    High pressure single stainless steel O ring filter ss bag filter housing with 1 micron oil bag filter PP/PE/Nylon/SS wire mesh
    Raw material
    SUS304, SUS316L
    Inlet & Outlet
    Flange/Thread
    Seal material
    EPDM/Silicone/Viton/PTFE
    Surface treatment
    Polished/Sandblast
    Working temperature
    50℉ to 250℉
    Max. working temperature
    100psi to 235psi
    Bag Item
    Flow rate
    Filtration area (m²)
    Length (mm)
    Bag diameter (mm)
    #1
    20
    0.25
    410
    180
    #2
    40
    0.5
    810
    180
    #3
    6
    1
    210
    102
    #4
    12
    0.15
    356
    102
    #5
    25
    0.3
    870
    175
    High pressure single stainless steel O ring filter ss bag filter housing with 1 micron oil bag filter PP/PE/Nylon/SS wire mesh 9
    FEATURE
    1
    Inlet & outlet size is 1/2", 3/4", 1 inch, easy installation.
    2
    Working pressure 8kg/0.8Mpa is supported.
    3
    Use the tap water pressure to provide power, no power consumption.
    4
    This is suitable for using in the water master switch, for the pre filtration system and RO system protection.
    5
    Resistance to strong acid and alkali.
    6
    Low cost, it fits different kind of filter elements.
    High pressure single stainless steel O ring filter ss bag filter housing with 1 micron oil bag filter PP/PE/Nylon/SS wire mesh 11
    Related Products
    High pressure single stainless steel O ring filter ss bag filter housing with 1 micron oil bag filter PP/PE/Nylon/SS wire mesh 13

    Model No.

    Code

    Bag size

    In & Out
    LY-BFH-01-B1

    #1
    180x450mm
    1" & 2"
    LY-BFH-01-B2

    #2
    180x810mm
    1" & 2"
    LY-BFH-01-B3
    #3
    105x210mm
    1" & 2"
    LY-BFH-01-B4
    #4
    105x345mm
    1" & 2"
    High pressure single stainless steel O ring filter ss bag filter housing with 1 micron oil bag filter PP/PE/Nylon/SS wire mesh 15

    Model No.

    Code

    Bag size

    In & Out
    LY-BFH02-B1
    #1
    180x450mm
    2" flange
    LY-BFH02-B2
    #2
    180x810mm
    2" flange
    LY-BFH02-B3
    #3
    105x210mm
    2" flange
    LY-BFH02-B4
    #4
    105x345mm
    2" flange
    High pressure single stainless steel O ring filter ss bag filter housing with 1 micron oil bag filter PP/PE/Nylon/SS wire mesh 17

    Model No.

    Code

    Bag size

    In & Out


    LY-BFH03-B1


    #1


    180x450mm


    2" Flange


    LY-BFH03-B1


    #2


    180x810mm


    2" Flange
    Application

    1.It can be widely used in UF, RO, EDI security filtration and end- filtration, medicine injection, large infusion, eye drops,.
    2. Chinese herbal medicine, such as liquid filtration, biological agents extraction, purification and concentration.
    3. Electronics, semiconductor industry with high purity water preliminary filter, terminal filter.
    4. Oil field back to water injection, boiler makeup water, chemical reagent, liquid organic products, high purity chemicals, strong medicine and other filtration.
    5. Drinking pure water, mineral water, fruit juice, tea beverages, health drinks filtering.
    6. Liquor, wine, beer, yellow wine and other fruit wine filtration, pure draft beer aseptic filtration (alternative pasteurized)
    7. The life and production waste water treatment and water recycling process of pre-treatment filtering or security filtering.
    8. Biological engineering, oil refining, printing and dyeing, textile industry water supply and waste water treatment, research and test filter, etc.

    High pressure single stainless steel O ring filter ss bag filter housing with 1 micron oil bag filter PP/PE/Nylon/SS wire mesh 19

    RO WATER TREATMENT

    High pressure single stainless steel O ring filter ss bag filter housing with 1 micron oil bag filter PP/PE/Nylon/SS wire mesh 21

    BOTTLED MINERAL WATER

    High pressure single stainless steel O ring filter ss bag filter housing with 1 micron oil bag filter PP/PE/Nylon/SS wire mesh 23

    BIOLOGY TECHNOLOGY

    High pressure single stainless steel O ring filter ss bag filter housing with 1 micron oil bag filter PP/PE/Nylon/SS wire mesh 25

    SEA WATER DESALINATION

    High pressure single stainless steel O ring filter ss bag filter housing with 1 micron oil bag filter PP/PE/Nylon/SS wire mesh 27

    CHEMICAL INDUSTRY

    High pressure single stainless steel O ring filter ss bag filter housing with 1 micron oil bag filter PP/PE/Nylon/SS wire mesh 29

    FOOD & BEVERAGE
