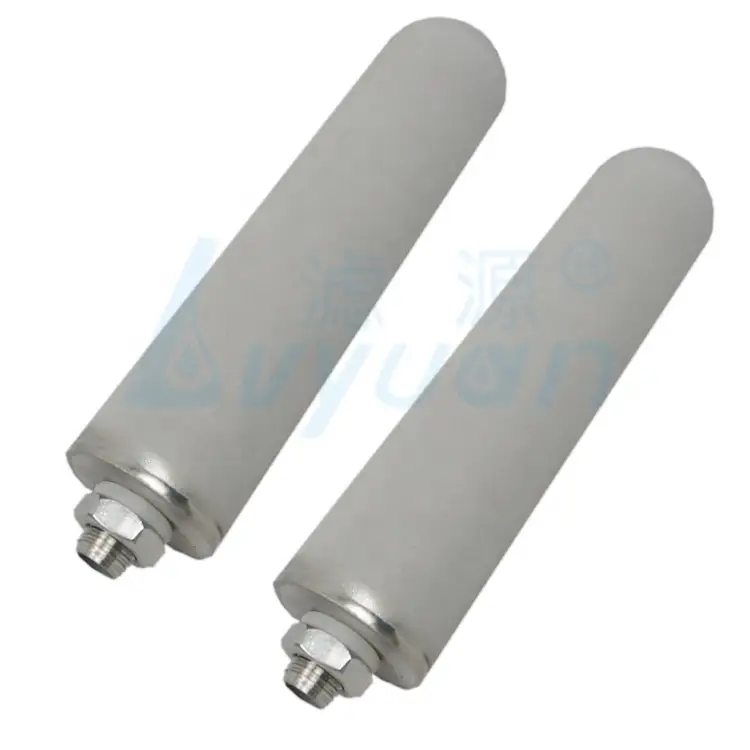

High quality 10 20 40 inch titanium powder micron filter/5 micron titanium filter
High quality 10 20 40 inch titanium powder micron filter/5 micron titanium filter is based on pure titanium powder(Purity 99.7% or higher)
as the main raw material, through high heating sintering. The uniform structure,
small pore density is high, the filtration resistance, good permeability;
Also it has the high filtration precision, acid & alkali corrosion, high temperature resistant
characteristics. It can be used for solid liquid, gas seperationand purification.
The service performance is excellent, but the suction filter and press filter,
it will not form secondary pollution, simple operation, it can be on-line regeneration,
easy to clean, and long service life.
1.Uniform structure, narrow pore size distribution, and high separation efficiency.
2.High porosity, the resistance of filtration less, and the penetration efficiency is high.
3.High temperature resistant, it can be normally used below in 280 degree.
4.Good chemical stability, acid & alkali corrosion resistance, and oxidation resistance.
5.No particles fall off, it will not make the concentrate form secondary pollution, it conforms to the food hygiene and pharmaceutical GMP requirements.
6.Good mechanical performance, it can have the sunction filtration and press-filtration, simple operation.
7.Low differential pressure, the area of cover is small, and the large water flow rate.
8.Strong antimicrobial ability, no microbes.
9.The finished products technology is good, the overlength of overall length can be reached
to 1000mm.
10.It can be on-line regeneration, easy to clean, and long service life.
Parameter of Titanium Water Filter Cartridge |
|
Filtration Micron |
0.2 - 100um |
Length |
5”(125mm) 10”(250mm) 20”(500mm) 30”(750mm) 40”(1000mm) |
Outer Diameter |
50mm 60mm 70mm |
Connector Type |
Flat type;215/222/226/M20/M30/M42 |
Sealing Material |
Silicone rubber; NBR; EPDM; Fluoro rubber |
Porosity |
28 - 50% |
Outer-diameter |
60mm 70mm |
Temperature Tolerance |
≤300℃ |
Maximum Operating Pressure Differential |
0.6Mpa |
Diameter |
Φ22mm Φ30mm Φ50mm Φ60mm Φ80mm Φ100mm Φ120mm |
Flow Rate (L/H) |
180 200 250 280 300 350 500 8001000 1500 1600 |
♦Pharmaceutical Industry
Active pharmaceutical ingredients, such as solvent solution, decarburization filtration
of material filtering.
Pharmaceutical industry infusion, injection, oral liquid concentration with link of the decarburization
filtration and security filtration for the dilute with terminal filter.
Filtrating the impurities in the active pharmaceutical ingredients processing,
also the decarburization filtration of material and precision filtration.
♦Chemical industry
The liquid of chemical industry products and raw materials, and the decarburization
filtration of material and precision filtration of pharmaceutical intermediates.
Superfine crystal,the filter recycling of the catalyst, the precision filtration and heat
conduction oil system after absorption of resin.Removing the impurities in the materials,
and the catalytic gas purification, etc.
♦Electronic Industry:
Electronic, Microelectronics, semiconductor industrial waater filter, etc.
♦Water Treatment Industry
It can used in the security filter SS housing as the pre-treatment for UF, RO, EDI system,
the filtration after the ozone sterilization and the ozone after aeration.
The oiled field water filter,and the security filter SS housing before the reverse osmosis in
desalination field.
♦Sewage Treatment
The micropore pure titanium aerator compared with the normal aerator, the energy consumption
of the micropore pure titanium aerator is lower 40% than the normal aerator, the sewage treatment
is nearly doubled.
The service is long, it can be used for 10 years, especially for the urban sewage,
large-scale water plant expansion, and the old remould of the water aeration tank.
♦Food Industry
The beverage, wine, beer, vegetable oil, soy sauce, vinegar clarification filtration.
♦Oil refining industry
The oiled field water filter,and the security filter SS housing before the reverse osmosis
in desalination field.
♦Other Industry
The high temperature of dye industry decarburization, the filtration of clay taking off.
The gas purification of steam, the air compressed, and the catalytic gas purification.
Pls feel free to contact us for more details or quotes
if you are interested in us or our products. ^_^
