Lvyuan Filter-Industrial Water Filter Cartridge & Housing Manufacturer Since 2009.
Hot sale sintered plastic filter factory for water
OEM/ODM Promotional Good Quality carbon water filter 10 inch for water filters machine
Customized dimension Micron Activated carbon block air filter plate/sheet/mesh/tube/disc/pipe

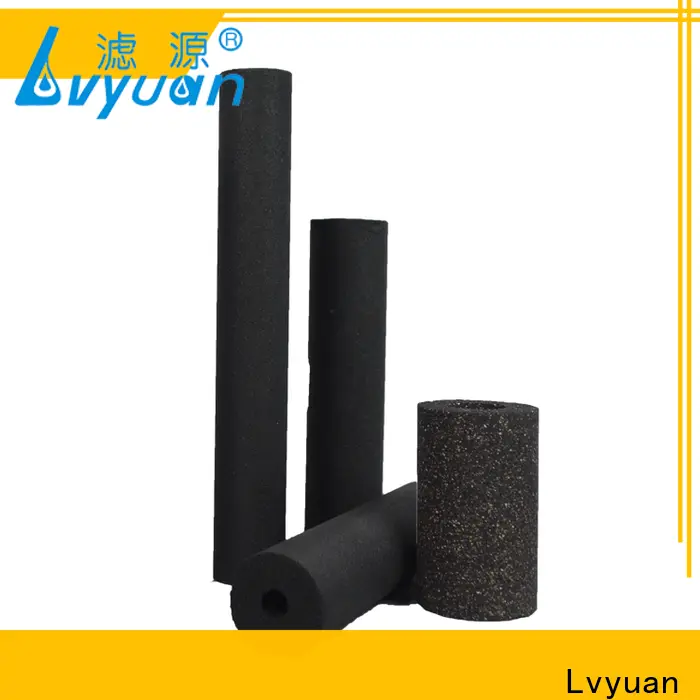

LVYUAN can custom-make industry-standard sized sintered carbon blocks Filter Element to suit the requirements of OEMs worldwide.
We use the world's advanced technology of sintering molding and SGS compliant raw materials and the finest grades of activated carbon to make CTO carbon block filter cartridges. Sintered CTO carbon block filter cartridges have strong adsorption ability and good rigid structure.
Sintered carbon block filter can remove chlrine, bad taste and odor, choramines, fine sediment, organic chemicals with high filtration efficiency. It can deliver superior performance to a variety of water and gas purification applications.
Name | Sintered / Compressed Activated Carbon Block Filter Cartridge |
Filter Media | Activated carbon, (other anti-scale, heavy metal removal material available for option.) |
Material | Coconut shell, Coal carbon |
Iodine value | 600 to 1500 available |
Filtration rate | 1um, 3um, 5um, 10um, 20um, 30um, 50um, 80um, 100um, 120um. |
Dimension | can be custom-made according to customer's requirement |
Length | 5, 10, 20, 30, 40 inch, OEM |
Outer diameter | 50, 60, 70, 80mm, OEM |
End cap | DOE, M20, M30,M36, M42, 215, 222, 226, OEM |
Gasket/Oring material | Silicone, EPDM, NBR, Viton etc |
Netting material | Polypropylene |
Operating temperature | ≤60ºC |
Maximum operating pressure | 10 bar |
1. High flow rate and low drop-out, high filter efficiency and longer service life.
2. Sintered carbon filters have very large filtration area and super strong adsorption.
3. Sintered carbon cartridges have many porous and good consistency of performance.
4. Effectively remove chlorinated compounds, organic matter, bad smell, colors, Vocs and THMS.
5. SGS approved high-quality coconut shell & high iodine value activated carbon materials.
1. Air Purifier/Purification
2. Water Purification
3. Drinking Water
4. Plating Industry
5. Pre RO Water Filtration
6. Industry Water Treatment
7. Food & Beverage Industry
