Industrial SS304/316L Stainless Steel beer food milk wine liquid filtration system

Industrial SS304/316L Stainless Steel beer food milk wine liquid filtration system

Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Stainless steel Bag filter housing
  •
+86 13316223340
info@lyfilter.com
+86 020-34460508
+86 020-34425655

Our company always insists on product quality is life, our aim is to provide more professional and attentive services for our global customers.

Overview
Quick Details
Applicable Industries:
Garment Shops, Building Material Shops, Machinery Repair Shops, Food & Beverage Factory, Restaurant, Food Shop, Energy & Mining, Food & Beverage Shops
After Warranty Service:
Online support
Local Service Location:
none
Showroom Location:
none
Video outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
Ordinary Product
Warranty of core components:
1 Year
Core Components:
Pump, Engine
Place of Origin:
China
Brand Name:
OEM
Material:
stainless housing
Weight:
30-65kg
Size:
customized
Warranty:
1 Year
After-sales Service Provided:
Online support
Product name:
liquid filtration system
housing material:
ss304, sus 316, ss316L
bag filters quantity:
Single or multi bags customized
Bag size:
180*450mm or 180*810mm, other
Inlet & Outlet type:
Flange/thread connection
Filter bag Material:
PP, PE, customized
Max. working pressure:
100/150/300 Psi
Usage:
liquid filtration
Bag number:
#1, 2, 3, 4, 5, OEM
housing clousure by:
quick bolt, clamp, flange
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month

Industrial SS304/316L Stainless Steel beer food milk wine liquid filtration system

Product Description

China Factory Custom Dual Triple Stages Stainless Steel beer housing bag filter for wine filtering machine

Bag filter is often characteristic of high flow rate and long service life. Bag filter is a widely used for liquid filtration, it can remove the particles of different size from liquid, in order to achieve liquid filtration, purification, separation, recovery purposes. It consists of three parts: bag housing, supporting basket and filter bags. According to flow rate, you may use multiple bags in a bag housing. First, the liquid enter into the housing from the inlet, which may placed in the side or on the top, and then flow into the filter bag which is braced by basket. Due to the impact pressure of fluid, the bag will extend and the liquid get evenly filtered through the bag and flow out of the outlet pipe. Impurities are trapped in the bag, the filtration process is complete.


Stainless steel Single bag filter housing and multi-bags filter housing, customized wall mounted or trolley type pneumatic big filter system/equipment/machine are provided.

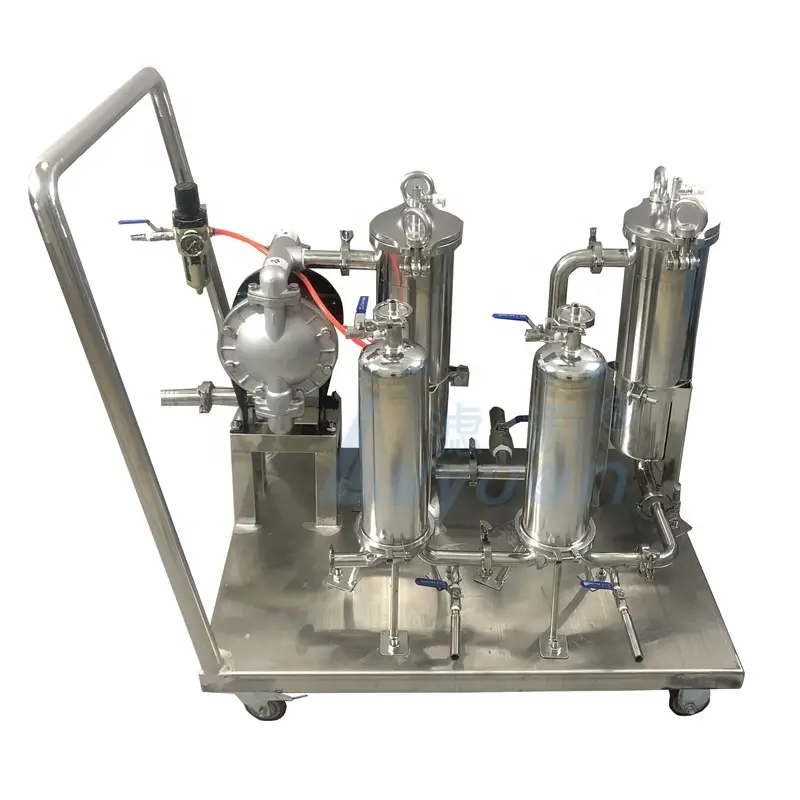

Industrial pneumatic oil filtration system with bag filter equipment and mobile trolley

OEM Wall-mounted pneumatic stainless steel bag filter system

Specifications
Product name:
Stainless Steel bag filter housing
Material
SUS304, SUS316, SUS316L
Bag quantity
single bag or multi-bag
Bag number
# 1, 2, 3, 4, 5 or OEM
Quantity option
1 to 18 bags
Surface treatment
Polished or sandblast external
Seal O-ring
silicon,NBR, EPDM, Viton, PTFE
In&outlet connection
V-clamp, thread or flange
Bag Filtration rate
0.5, 1 5, 10, 20, 50, 100, 200 to 500 micron
Usage
Liquid filtration
Max working pressure
100, 150, 300Psi, OEM
Wall thickness
1.5~5mm

Filter Bag Material and Specification:

Polyester Needle Felt (PET), Polypropylene Needle Felt (PPF), Polypropylene Plain (PPP), Nylon Monofilament (NMO), and many other materials..

Type
Flow rate
(m³/H)
Filtration Area (㎡)
Size
(DiameterxLength)
#1
20
0.25
7''x16'' (180mmx410mm)
#2
40
0.50
7''x32'' (180mmx810mm)
#3
6
0.10
4''x8.25'' (102mmx210mm)
#4
12
0.15
4''x14'' (102mmx356mm)
#5
25
0.30
6 7/8''x34'' (175mmx870mm)

Stainless Steel Bag Filter Housing with all accessories

Application

1. Automotive
2. Food and Beverage
3. Chemical Processing
4. Paints, Inks, Resins and Coatings
5. Electronics
6. Petrochemicals
7. Municipal Water Treatment
8. Industrial Water Treatment
9. Pulp and Paper
10. Pharmaceutical
11. Lubricants, Metalworking Fluids
12. Solvents

Bag Filter housings

BFH-01 V-clamp Closure Stainless steel single Bag Filter Housing

BFH-02 Flange/bolt lifting type Stainless Steel Single Bag Filter Housing

BFH-03 Flange/top install type Stainless steel Single Bag Filter Housing

BFH-04 Muti-bags Stainless Steel Bag Filter Housing

Custom-made Small flow rate Stainless Steel single Bag Filter Housing

Custom-made Stainless Steel Single Bag Filer Housing

Custom-made Dual Bag Filter Housing with trolley, pneumatic system available for option.
For more information, please feel free to contact us for the detail Catalog.

Single Bag filter housing Series, including Model BFL, BFH and BFC.

Multi bags filter housing, Model BFM multi-bag filter housing series:
