Liquid industry filtration bag type stainless steel 316L single filter housing for beer brewing filter equipment

Overview
Quick Details
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
After Warranty Service:
Online support
Local Service Location:
none
Showroom Location:
none
Place of Origin:
Guangdong, China
Brand Name:
Customized
Material:
Customized, SS304 / SS316L
Weight:
Customized
Size:
Customized
Power:
0
Warranty:
1 Year
After-sales Service Provided:
Online support
Item Name:
Bag type stainless steel 316L sinlge filter housing
Filter bag material:
PE BAG/PP BAG
Bag filter quantity:
Single bag filter housing
Surface treatment:
Polished & Sandblast
Seal o-ring:
Silastic/NBR/EPDM/Viton
Top cap installed type:
Clamp type/Bolt type
Inlet & Outlet type:
Internal thread/Flange
Connector type:
222/226/DOE
Packaging method:
Export standard box

Packaging & Delivery

Selling Units:
Single item
Single package size:
88X38X68 cm
Single gross weight:
68.000 kg
Package Type:
Liquid industry filtration bag type stainless steel 316L single filter housing for beer brewing filter equipment: Packaging: Export standard box/As required
Lead Time :
Quantity(Units) 1 - 10 11 - 100 >100
Est. Time(days) 5 10 To be negotiated
Product Description
Liquid industry filtration bag type stainless steel 316L single filter housing for beer brewing filter equipment 7

Liquid industry filtration bag type stainless steel 316L single filter housing for beer brewing filter equipment:

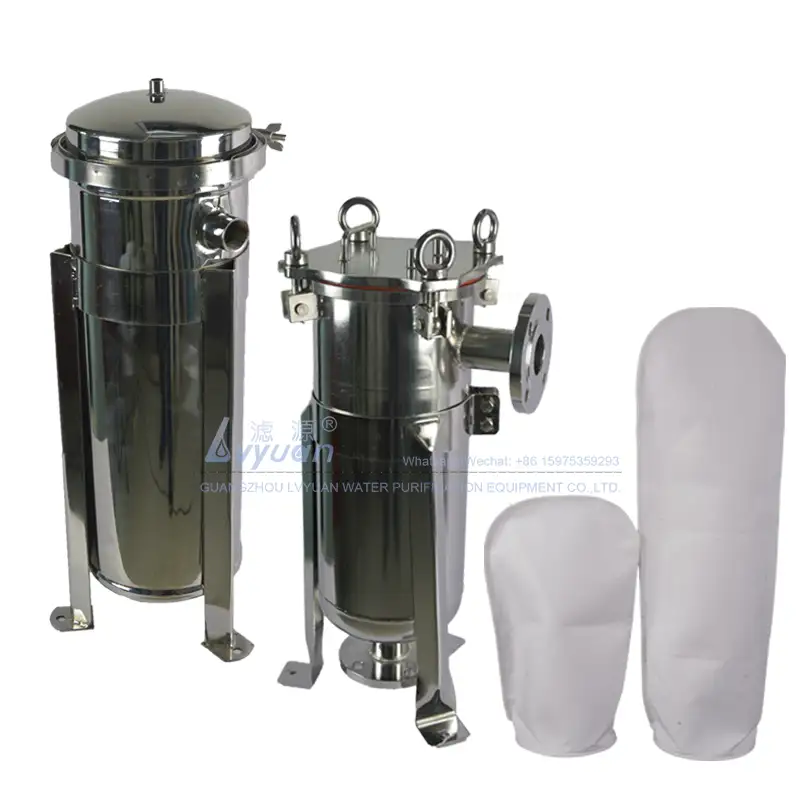

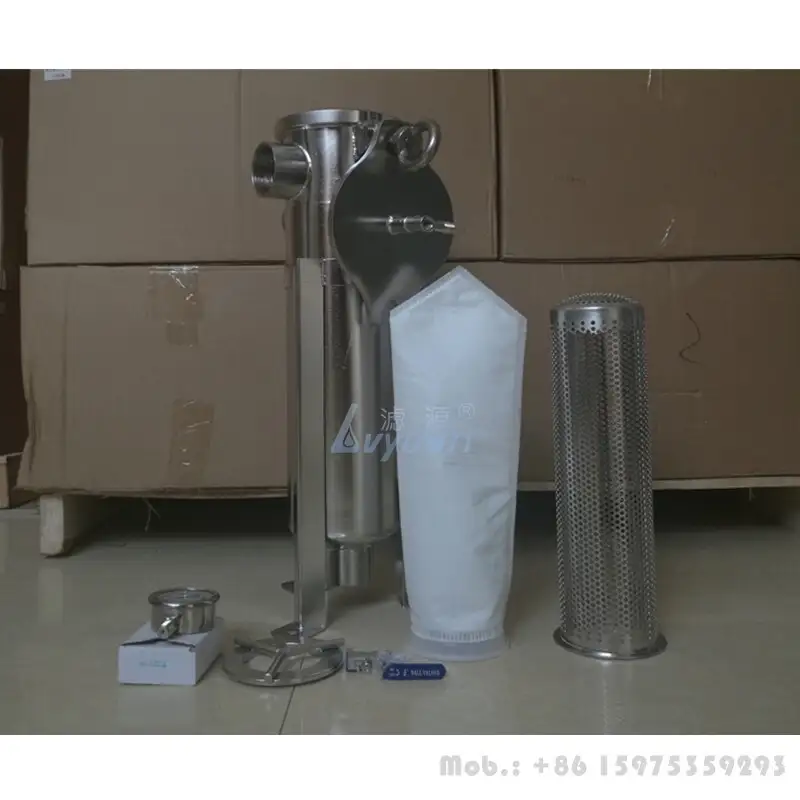

LVYUAN stainless steel filter housing offers wide range of flow capacities & contaminant holding capacities. Cartridge filters are normally used as polishing filter in almost all process industries. Cartridge filter is constructed of filter housing, filter cartridges,tube sheet, positive sealing arrangement for cartridge depending upon type of cartridge & choice of end connections. Positive sealing arrangement for cartridge filter assures no particle migration or fiber migration, even after high differential pressures.

Product name
Liquid industry filtration bag type stainless steel 316L single filter housing for beer brewing filter equipment
Raw material
SUS304, SUS316L
Inlet & Outlet
Flange/Thread
Seal material
EPDM/Silicone/Viton/PTFE
Surface treatment
Polished/Sandblast
Working temperature
50℉ to 250℉
Max. working temperature
100psi to 235psi
Bag Item
Flow rate
Filtration area (m²)
Length (mm)
Bag diameter (mm)
#1
20
0.25
410
180
#2
40
0.5
810
180
#3
6
1
210
102
#4
12
0.15
356
102
#5
25
0.3
870
175
Liquid industry filtration bag type stainless steel 316L single filter housing for beer brewing filter equipment 9
FEATURE
1
Inlet & outlet size is 1/2", 3/4", 1 inch, easy installation.
2
Working pressure 8kg/0.8Mpa is supported.
3
Use the tap water pressure to provide power, no power consumption.
4
This is suitable for using in the water master switch, for the pre filtration system and RO system protection.
5
Resistance to strong acid and alkali.
6
Low cost, it fits different kind of filter elements.
Liquid industry filtration bag type stainless steel 316L single filter housing for beer brewing filter equipment 11
Related Products
Liquid industry filtration bag type stainless steel 316L single filter housing for beer brewing filter equipment 13

Model No.

Code

Bag size

In & Out
LY-BFH-01-B1

#1
180x450mm
1" & 2"
LY-BFH-01-B2

#2
180x810mm
1" & 2"
LY-BFH-01-B3
#3
105x210mm
1" & 2"
LY-BFH-01-B4
#4
105x345mm
1" & 2"
Liquid industry filtration bag type stainless steel 316L single filter housing for beer brewing filter equipment 15

Model No.

Code

Bag size

In & Out
LY-BFH02-B1
#1
180x450mm
2" flange
LY-BFH02-B2
#2
180x810mm
2" flange
LY-BFH02-B3
#3
105x210mm
2" flange
LY-BFH02-B4
#4
105x345mm
2" flange
Liquid industry filtration bag type stainless steel 316L single filter housing for beer brewing filter equipment 17

Model No.

Code

Bag size

In & Out


LY-BFH03-B1


#1


180x450mm


2" Flange


LY-BFH03-B1


#2


180x810mm


2" Flange
Application

1.It can be widely used in UF, RO, EDI security filtration and end- filtration, medicine injection, large infusion, eye drops,.
2. Chinese herbal medicine, such as liquid filtration, biological agents extraction, purification and concentration.
3. Electronics, semiconductor industry with high purity water preliminary filter, terminal filter.
4. Oil field back to water injection, boiler makeup water, chemical reagent, liquid organic products, high purity chemicals, strong medicine and other filtration.
5. Drinking pure water, mineral water, fruit juice, tea beverages, health drinks filtering.
6. Liquor, wine, beer, yellow wine and other fruit wine filtration, pure draft beer aseptic filtration (alternative pasteurized)
7. The life and production waste water treatment and water recycling process of pre-treatment filtering or security filtering.
8. Biological engineering, oil refining, printing and dyeing, textile industry water supply and waste water treatment, research and test filter, etc.

Liquid industry filtration bag type stainless steel 316L single filter housing for beer brewing filter equipment 19

RO WATER TREATMENT

Liquid industry filtration bag type stainless steel 316L single filter housing for beer brewing filter equipment 21

BOTTLED MINERAL WATER

Liquid industry filtration bag type stainless steel 316L single filter housing for beer brewing filter equipment 23

BIOLOGY TECHNOLOGY

Liquid industry filtration bag type stainless steel 316L single filter housing for beer brewing filter equipment 25

SEA WATER DESALINATION

Liquid industry filtration bag type stainless steel 316L single filter housing for beer brewing filter equipment 27

CHEMICAL INDUSTRY

Liquid industry filtration bag type stainless steel 316L single filter housing for beer brewing filter equipment 29

FOOD & BEVERAGE
