Lvyuan titanium stainless steel filter housing manufacturers with fin end cap for sea water desalination118
1. The material of Lvyuan undergoes unusual selection from suppliers. It is resistant to putridity, acid and alkali, organic or inorganic solvent
2. There is less disappointment with the use of this product because there is high accuracy in the work done by this product. There is different porosity across the depth of its filter medium
3. The product is not susceptible to deformation. Its bulky metal structure is built to withstand heavy-duty use and abuse. It offers excellent filtration and good thermal stability
4. The product features the desired accuracy. It is able to provide adequate dynamic accuracy for the application without any human errors. It will trap larger particles in the outer layers and capture smaller particles in the deep layer
5. The product stands out for its good deformation resistance. When a sufficient load from other objects is applied to it, it will be never out of shape. Being thermally welded, its caps are not prone to crack or fall off
SS304/316 Stainless steel single bag filter for water treatment filter housing
Bag filter is often characteristic of high flow rate and long service life. Bag filter is a widely used for liquid filtration, it can remove the particles of different size from liquid, in order to achieve liquid filtration, purification, separation, recovery purposes. It consists of three parts: bag housing, supporting basket and filter bags. According to flow rate, you may use multiple bags in a bag housing. First, the liquid enter into the housing from the inlet, which may placed in the side or on the top, and then flow into the filter bag which is braced by basket. Due to the impact pressure of fluid, the bag will extend and the liquid get evenly filtered through the bag and flow out of the outlet pipe. Impurities are trapped in the bag, the filtration process is complete.
Stainless steel Single bag filter housing and multi-bags filter housing, customized wall mounted or trolley type pneumatic big filter system/equipment/machine are provided.
Industrial pneumatic oil filtration system with bag filter equipment and mobile trolley
OEM Wall-mounted pneumatic stainless steel bag filter system
Product name: | Stainless Steel bag filter housing | Material | SUS304, SUS316, SUS316L |
Bag quantity | single bag or multi-bag | Bag number | # 1, 2, 3, 4, 5 or OEM |
Quantity option | 1 to 18 bags | Surface treatment | Polished or sandblast external |
Seal O-ring | silicon,NBR, EPDM, Viton, PTFE | In&outlet connection | V-clamp, thread or flange |
Bag Filtration rate | 0.5, 1 5, 10, 20, 50, 100, 200 to 500 micron | Usage | Liquid filtration |
Max working pressure | 100, 150, 300Psi, OEM | Wall thickness | 1.5~5mm |
Filter Bag Material and Specification:
Polyester Needle Felt (PET), Polypropylene Needle Felt (PPF), Polypropylene Plain (PPP), Nylon Monofilament (NMO), and many other materials..
Type | Flow rate (m³/H) | Filtration Area (㎡) | Size (DiameterxLength) |
#1 | 20 | 0.25 | 7''x16'' (180mmx410mm) |
#2 | 40 | 0.50 | 7''x32'' (180mmx810mm) |
#3 | 6 | 0.10 | 4''x8.25'' (102mmx210mm) |
#4 | 12 | 0.15 | 4''x14'' (102mmx356mm) |
#5 | 25 | 0.30 | 6 7/8''x34'' (175mmx870mm) |

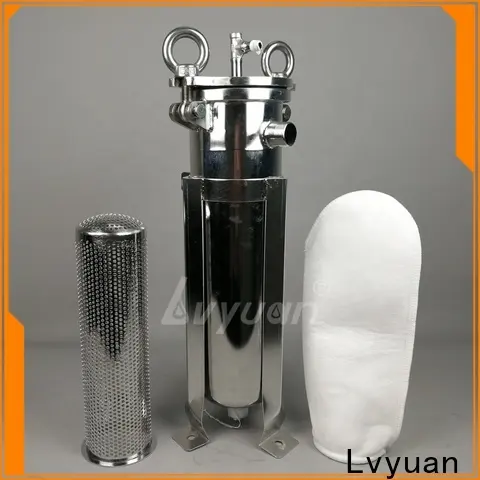

Stainless Steel Bag Filter Housing with all accessories
1. Automotive
2. Food and Beverage
3. Chemical Processing
4. Paints, Inks, Resins and Coatings
5. Electronics
6. Petrochemicals
7. Municipal Water Treatment
8. Industrial Water Treatment
9. Pulp and Paper
10. Pharmaceutical
11. Lubricants, Metalworking Fluids
12. Solvents
BFH-01 V-clamp Closure Stainless steel single Bag Filter Housing
BFH-02 Flange/bolt lifting type Stainless Steel Single Bag Filter Housing
BFH-03 Flange/top install type Stainless steel Single Bag Filter Housing
BFH-04 Muti-bags Stainless Steel Bag Filter Housing
Custom-made Small flow rate Stainless Steel single Bag Filter Housing
Custom-made Stainless Steel Single Bag Filer Housing
Custom-made Dual Bag Filter Housing with trolley, pneumatic system available for option.
For more information, please feel free to contact us for the detail Catalog.
Single Bag filter housing Series, including Model BFL, BFH and BFC.
Multi bags filter housing, Model BFM multi-bag filter housing series:
Company Features
1. After several years of arduous pioneering, Guangzhou Lvyuan Water Purification Equipment Co., Ltd. has established a good management system and market network.
2. Applying the best technology to the has become a good idea.
3. Guangzhou Lvyuan Water Purification Equipment Co., Ltd. aims to improve the brand reputation and promote development with its customers. Check it!
