Lvyuan Filter-Industrial Water Filter Cartridge & Housing Manufacturer Since 2009.


Lvyuan titanium stainless steel filter housing manufacturers with fin end cap for sea water desalination144 1
Lvyuan titanium stainless steel filter housing manufacturers with fin end cap for sea water desalination144 2
Lvyuan titanium stainless steel filter housing manufacturers with fin end cap for sea water desalination144 3
Lvyuan titanium stainless steel filter housing manufacturers with fin end cap for sea water desalination144 4
Lvyuan titanium stainless steel filter housing manufacturers with fin end cap for sea water desalination144 5
Lvyuan titanium stainless steel filter housing manufacturers with fin end cap for sea water desalination144 1
Lvyuan titanium stainless steel filter housing manufacturers with fin end cap for sea water desalination144 2
Lvyuan titanium stainless steel filter housing manufacturers with fin end cap for sea water desalination144 3
Lvyuan titanium stainless steel filter housing manufacturers with fin end cap for sea water desalination144 4
Lvyuan titanium stainless steel filter housing manufacturers with fin end cap for sea water desalination144 5

Lvyuan titanium stainless steel filter housing manufacturers with fin end cap for sea water desalination144

Inquiry

Overview
Quick Details
Applicable Industries:
Home Use
After Warranty Service:
Online support
Local Service Location:
none
Showroom Location:
none
Video outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
Ordinary Product
Warranty of core components:
1 Year
Core Components:
Pressure vessel
Place of Origin:
China
Warranty:
1 Year
After-sales Service Provided:
Online support
Item:
wound string sediment water filter cartridges
Material:
polypropylene fiber , absorbent cotton , glass fiber
Core:
PP/SS
Micron:
1/5/10/20/30/50/75/100
Inner Diameter:
28mm / 30mm / OEM
Length:
5" / 10" / 20" / 30" / 40" / 50" / 60"
PP wound filter+PP core:
65℃
PP wound filter+SS:
120℃
Cotton filter+SS:
180℃
Glass fiber+SS:
180 - 300℃

Packaging & Delivery

Selling Units:
Single item
Single package size:
53X33X33 cm
Single gross weight:
0.200 kg
Package Type:
Stainless steel cotton filter 10 20 inch 5 microns wound string sediment water filter cartridges for water purifying machine: 51x31x33cm- 10" 25pcs/20" 25pcs
Lead Time :
Quantity(Pieces) 1 - 500 501 - 1000 1001 - 5000 >5000
Est. Time(days) 2 5 7 To be negotiated
Stainless steel cotton filter 10 20 inch 5 microns wound string sediment water filter cartridges for water purifying machine
Product Description
Lvyuan titanium stainless steel filter housing manufacturers with fin end cap for sea water desalination144 6

Stainless steel cotton filter 10 20 inch 5 microns wound string sediment water filter cartridges for water purifying machine

Our string wound water filter cartridges are structured loose outer layers and tight inner layers which can offer true depth filtration for high dirt holding capacity and extremely low media migration to ensure temperature and chemical compatibility. The main advantage of the string wound filter cartridge is its exceptionally high structural strength, therefore, they can withstand severe operating conditions.

Product name
Stainless steel cotton filter 10 20 inch 5 microns wound string sediment water filter cartridges for water purifying machine
Material
Polypropylene fiber , Absorbent cotton , Glass fiber
Precision
1-100 micron
Outer diameter
28mm-30mm/OEM
Inner diameter
60mm-63mm /115mm /OEM
Length
9.75" 9.87" 10'' 20'' 30'' 40'' 50" 60" / OEM
Connector
DOE/215/222/226/Fin/OEM


Max operating temperature
PP with PP core : 60 °C
PP with SS core : 100 °C
Cotton with SS core : 120 °C
Glass fiber with SS core : 180 °C -- 300 °C
Detailed Images

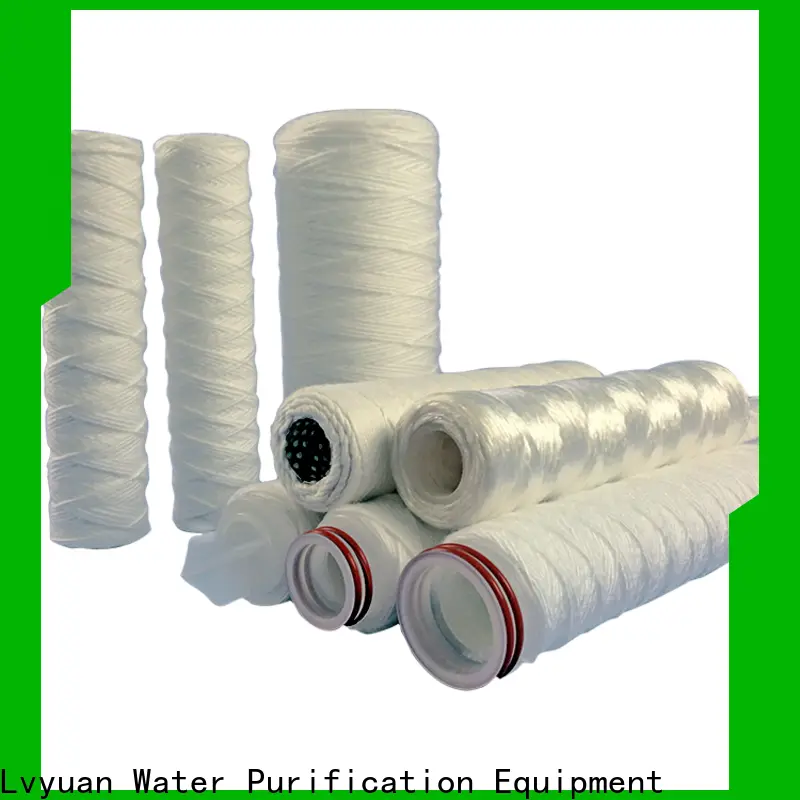

String wound PP sediment Filter with OEM size

This filter cartridge is made of textile fiber (polypropylene string, Absorbent cotton string, acrylic fiber yarn, fiberglass). According to the specified precess, it is winded tightly with the string in the polyporous core, structured by loose outer layers and tight inner layers, the filter cartridge porous outside it is big, inside it is small, it has the true deep filtration effect, it can remove the suspension, rust, particles, etc.

Lvyuan titanium stainless steel filter housing manufacturers with fin end cap for sea water desalination144 8
Lvyuan titanium stainless steel filter housing manufacturers with fin end cap for sea water desalination144 10
Lvyuan titanium stainless steel filter housing manufacturers with fin end cap for sea water desalination144 12
Lvyuan titanium stainless steel filter housing manufacturers with fin end cap for sea water desalination144 14
Lvyuan titanium stainless steel filter housing manufacturers with fin end cap for sea water desalination144 16
Lvyuan titanium stainless steel filter housing manufacturers with fin end cap for sea water desalination144 18

Jumbo PP yarn string wound water filter

Big jumbo string wound water filter is designed for the removal of sediment, sands, dirt and rust from raw water. 10 20 30 40 inch length size is available, outer diameter is 110mm, inner diameter 28mm/30mm.


The rated temperature is up to 165℉, polypropylene yarn construction for excellent chemical resistance.

Fiberglass wire wound filter cartridge

The fiberglass wire wound filter cartridge is a kind of deep filtration. It is made of glass fiber according to a specific winding process by different winding methods. The glass fiber wire wound filter adopts the structure of inner tight outer pine.
Applications:
Organic solvent filtration, food & beverage & wine, pharmaceutical industry, high & low temperature gas steam filtration.

Lvyuan titanium stainless steel filter housing manufacturers with fin end cap for sea water desalination144 20
Lvyuan titanium stainless steel filter housing manufacturers with fin end cap for sea water desalination144 22
Lvyuan titanium stainless steel filter housing manufacturers with fin end cap for sea water desalination144 24
Lvyuan titanium stainless steel filter housing manufacturers with fin end cap for sea water desalination144 26

Absorbent cotton string wound filter

Absorbent cotton water filter for organic solvents, water, oil, alkaline solution, beverages, medicine, etc.
The working temperature is ≤120℃
Non-toxic, odorless, no secondary pollution, and long service life.
Length: 10", 20", 30", 40"
Core: Stainless steel/SUS304 316L

Lvyuan titanium stainless steel filter housing manufacturers with fin end cap for sea water desalination144 28
Lvyuan titanium stainless steel filter housing manufacturers with fin end cap for sea water desalination144 30
Lvyuan titanium stainless steel filter housing manufacturers with fin end cap for sea water desalination144 32

Polypropylene string wound PP yarn filter

Filter media: Polypropylene
Micron: 1um, 5um, 10um, 20um, 25um, 50um, 75um, 100um
Polypropylene with PP core: ≤80℃
High dirt holding capacity, longer service life.
Fits to all the standard filter housings.
Wide chemical compatibility and high filtration micron.
Various filter media fit with various applications.
All kinds of adaptors are available.

Lvyuan titanium stainless steel filter housing manufacturers with fin end cap for sea water desalination144 34
Lvyuan titanium stainless steel filter housing manufacturers with fin end cap for sea water desalination144 36
Lvyuan titanium stainless steel filter housing manufacturers with fin end cap for sea water desalination144 38
Lvyuan titanium stainless steel filter housing manufacturers with fin end cap for sea water desalination144 40
Lvyuan titanium stainless steel filter housing manufacturers with fin end cap for sea water desalination144 42
Application
Lvyuan titanium stainless steel filter housing manufacturers with fin end cap for sea water desalination144 44

RO SEA WATER TREATMENT

Lvyuan titanium stainless steel filter housing manufacturers with fin end cap for sea water desalination144 46

POWER PLANT

Lvyuan titanium stainless steel filter housing manufacturers with fin end cap for sea water desalination144 48

BIOLOGY TECHNOLOGY

Lvyuan titanium stainless steel filter housing manufacturers with fin end cap for sea water desalination144 50

PETROCHMICAL INDUSTRY

Lvyuan titanium stainless steel filter housing manufacturers with fin end cap for sea water desalination144 52

BOTTLED MINERAL WATER

Lvyuan titanium stainless steel filter housing manufacturers with fin end cap for sea water desalination144 54
BEER & BEVERAGE FILTRATION
Packing & Delivery
Lvyuan titanium stainless steel filter housing manufacturers with fin end cap for sea water desalination144 56
Our Company
Lvyuan titanium stainless steel filter housing manufacturers with fin end cap for sea water desalination144 58
Lvyuan titanium stainless steel filter housing manufacturers with fin end cap for sea water desalination144 60
Contact Us
Lvyuan titanium stainless steel filter housing manufacturers with fin end cap for sea water desalination144 62
Guangzhou Lvyuan Water Purification Equipment Co., Ltd. has developed a powerful distribution network for water filter cartridges. There is different porosity across the depth of its filter medium. Guangzhou Lvyuan Water Purification Equipment Co., Ltd. will strictly inspect product package to ensure water filter cartridges will be totally safe during transportation. There is different porosity across the depth of its filter medium.
