PP pleated filter cartridge deliver high efficiency and consistent filtration of fluids in a wide range of critical applications. They are constructed of pleated membrane filter media that provides removal of particles from 0.1 to 60um, the pore size is not affected by the vibration of
feeding pressure, due to its unique low differential pressure, high flow volume, excellent filtration microns. The high surface area ensures long service life and low initial pressure drops.
Lvyuan Filter-Industrial Water Filter Cartridge & Housing Manufacturer Since 2009.
Lvyuan titanium stainless steel filter housing manufacturers with fin end cap for sea water desalination43
Company Advantages
1. Lvyuan is well designed. It is carried out by our designers who design a complete water treatment system which include pretreatment, refined filtration, cleaning, and sterilization. It is manufactured from 100% Polypropylene construction
2. The product reduces the need for hiring a large workforce. It can greatly help save labor costs for business owners. Its filter medium is customizable according to the different water quality in the application
3. The product features outstanding stability at different temperatures. When exposed to the high temperature, the viscosity and texture won't be easy to change. It is suitable to use with aqueous and organic solvent samples due to its broad chemical compatibility
![Lvyuan titanium stainless steel filter housing manufacturers with fin end cap for sea water desalination43 6]()

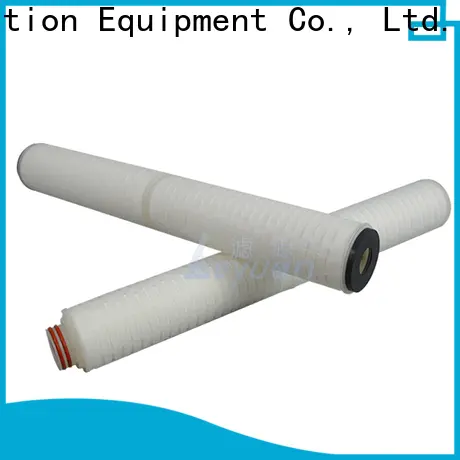

0.1 microns 10 20 inch pleated PP Nylon membrane filter cartridge for wine/liquid/ro/chemical filter treatment
![Lvyuan titanium stainless steel filter housing manufacturers with fin end cap for sea water desalination43 8]()
![Lvyuan titanium stainless steel filter housing manufacturers with fin end cap for sea water desalination43 10]()
![Lvyuan titanium stainless steel filter housing manufacturers with fin end cap for sea water desalination43 12]()
![Lvyuan titanium stainless steel filter housing manufacturers with fin end cap for sea water desalination43 14]()
Nylon N66 pleated membrane filter cartridge
![Lvyuan titanium stainless steel filter housing manufacturers with fin end cap for sea water desalination43 16]()
![Lvyuan titanium stainless steel filter housing manufacturers with fin end cap for sea water desalination43 18]()
![Lvyuan titanium stainless steel filter housing manufacturers with fin end cap for sea water desalination43 20]()
![Lvyuan titanium stainless steel filter housing manufacturers with fin end cap for sea water desalination43 22]()
![Lvyuan titanium stainless steel filter housing manufacturers with fin end cap for sea water desalination43 24]()
![Lvyuan titanium stainless steel filter housing manufacturers with fin end cap for sea water desalination43 26]()
![Lvyuan titanium stainless steel filter housing manufacturers with fin end cap for sea water desalination43 28]()
![Lvyuan titanium stainless steel filter housing manufacturers with fin end cap for sea water desalination43 30]()
![Lvyuan titanium stainless steel filter housing manufacturers with fin end cap for sea water desalination43 32]()
![Lvyuan titanium stainless steel filter housing manufacturers with fin end cap for sea water desalination43 34]()
![Lvyuan titanium stainless steel filter housing manufacturers with fin end cap for sea water desalination43 36]()
![Lvyuan titanium stainless steel filter housing manufacturers with fin end cap for sea water desalination43 38]()
![Lvyuan titanium stainless steel filter housing manufacturers with fin end cap for sea water desalination43 40]()
![Lvyuan titanium stainless steel filter housing manufacturers with fin end cap for sea water desalination43 42]()
![Lvyuan titanium stainless steel filter housing manufacturers with fin end cap for sea water desalination43 44]()
![Lvyuan titanium stainless steel filter housing manufacturers with fin end cap for sea water desalination43 46]()
![Lvyuan titanium stainless steel filter housing manufacturers with fin end cap for sea water desalination43 48]()
![Lvyuan titanium stainless steel filter housing manufacturers with fin end cap for sea water desalination43 50]()
![Lvyuan titanium stainless steel filter housing manufacturers with fin end cap for sea water desalination43 52]()
![Lvyuan titanium stainless steel filter housing manufacturers with fin end cap for sea water desalination43 54]()
![Lvyuan titanium stainless steel filter housing manufacturers with fin end cap for sea water desalination43 56]()
Company Features
1. The core competence of lies in .
2. Throughout the world, we have opened and maintained stable overseas markets. Our stable business partners are mainly from Europe, North & South America, and Asia countries.
3. Guangzhou Lvyuan Water Purification Equipment Co., Ltd. provide high quality , good service, and punctual delivery time. Inquire!
1. Lvyuan is well designed. It is carried out by our designers who design a complete water treatment system which include pretreatment, refined filtration, cleaning, and sterilization. It is manufactured from 100% Polypropylene construction
2. The product reduces the need for hiring a large workforce. It can greatly help save labor costs for business owners. Its filter medium is customizable according to the different water quality in the application
3. The product features outstanding stability at different temperatures. When exposed to the high temperature, the viscosity and texture won't be easy to change. It is suitable to use with aqueous and organic solvent samples due to its broad chemical compatibility
Product Description
0.1 microns 10 20 inch pleated PP Nylon membrane filter cartridge for wine/liquid/ro/chemical filter treatment
Microporous pleated filter element, the main filter material is : Polypropylene, Hydrophobic PTFE, Hydrophilic PTFE,Polyether sulfone, Nylon, etc.
Most of the raw materials are imported from abroad.Pleated filter element is a kind of deep filtration filter,it is usuaslly used as liquid overheating,clarification, filtration and terminal filter.
It has the following characteristics: the superfine polypropylene fiber membrane as the filtration medium, low pressure differential, high flux, good filtration precision, lower economic cost.
The whole structure of polypropylene, end cover, housing and center pole adopts polypropylene material; It adopts the hot melt welding process, PP and PP melt bonding,without any binder.
It has wide range of chemical compatibility, and also has a series of pore size and form a variety of interface.Material: Pleated filter, Support layer, End-cover, Inside & Outside cylinder are polypropylene.
Welding: It adopts the uniquehot melting methods, no glue, no foreign body fall off.
Typical use: Pharmaceutical, Food, Chemical, Electronics, Environmental protection, etc.
Microporous membrane pleated filter cartridge main features: High interception rate, high liquidity, low pressure differential and a wide range of chemical compatibility;
The production process adopts unique hot melting process technology, no any adhesive, no foreign body release.
It can meet the food,beverage, beer, chemical, pharmaceutical and other industries production requirements.
Polypropylene microporous membrane filter
PTFE membrane pleated filter
Hydrophobic PTFE filter
The filter medium is Hydrophobic PTFE microporous membrane filter: Strong hydrophobicity,
High holding rate, excellent chemical resistance and thermal stability, good strength, impact resistance of the forward & reverse pressure.
Hydrophilic PTFE filter
The filter element medium for hydrphilic PTFE microporous membrane filter: The hydrophilic stability, high entrapment rate, excellent chemical resistance thermal stability, good strength, impact resistance of the forward & reverse pressure.
Polyether Sulphone PES Pleated Filter
The PES pleated filter cartridge is constructed of imported polyethersulfone(PES) membrane media and non-woven support materials.The material of cage core and end caps are polypropylene.Adapters are thermally welded with media without using any glue, no any pollution. The PES filter cartridge is ideally suited for critical prefiltration in sterilizing applications and final filtration in a broad range of demanding non-sterile application, the inherently hydrophilic membrane contains no surfactant or wetting agents, which results in good filtration and flow rates.
Nylon N66 pleated membrane filter cartridge
The filter medium is hydrophilic nylon microporous membrane filter, It is composed by nylon membrane and the polypropylene support material hot melting, it is no dung, also applicable for the strict chemical and pharmaceutical industries.
PVDF pleated cartridge filter
The PVDF pleated cartridge filter is constructed of imported natural hydrophobic polyvinylenedifluoride(PVDF) membrane media and non-woven support materials. The adaptors are thermally welded with media without using any glue, no any pollution.
High filtration microns, high flow rate, better hydrophobicity, sterilization at high temperature as well as chemical resistance. It is widely used in gas or liquid pre-filtration and widely used in final filtration.
Jumbo pleated membrane filter cartridge
The big jumbo pleated filter cartridge is constructed of deep polypropylene membrane, melt blown polypropylene, hydrophilic PES & PTFE. The non-woven support materials. This filter cartridges design increased the effective filtration area, not only can reduct the filter cartridges quantity, but also it can make the smaller housing size. Big flow rate and long service life, lower cost and human cost. The size is divided into 2 kinds of size: 83mm diameter & 131mm diameter. Adaptors are thermally welded with media without using any glue, no any pollution and droppings. Clean & stable, each filter cartridge has passed strict testing by 100% integrity.
Filtration media | PP/PTFE/PES/PVDF/Nylon | ||||
Support material | Polypropylene | ||||
Core & Structural components | Polypropylene | ||||
Inner core | PP/Stainless steel | ||||
Packing method | Polybag/Vacuum | ||||
Filtration precision | 0.1μm, 0.2μm, 0.45μm, 0.65μm,0.8μm,1μm,2μm,3μm,5μm,10μm,20μm,25μm,30μm,50μm | ||||
Length | 2.5", 5". 10", 20", 30", 40", 50", 60", OEM | ||||
Adaptor | 215/222/226/Fin/Flat/Thread/OEM | ||||
Sealing method | Hot melting welding | ||||
Sealing gasket & O-ring material | Silicone rubber; Nitrile butadiene rubber, EPDM, Fluorine rubber. | ||||
Effect filtration area | ≥0.6m² | ||||
Filter cartridge diameter | 69mm | ||||
Max. working temperature | PP: 88℃,0.27Mpa PTFE: 80℃, 0.173Mpa PES: 85℃, 0.28Mpa PVDF: 80℃, 0.173Mpa Nylon: 49℃, 0.21Mpa | ||||
Max. positive differential pressure | 0.42Mpa (25℃) | ||||
Max. back pressure differential pressure | 0.28Mpa (25℃) | ||||
Sterilization conditions | 121℃ 30min | ||||
Applications | Chemical industry; Organic solvents; Various of alcohols; Chemical reagents filtration; Sterile tank breathing apparatus; Pharmaceutical industry; Food industry; Electronic industry; RO water treatment; Medical liquid filtration; | ||||
Detailed Images
DOE opened pleated filter
The membrane's micron rating is optional. Options to order for this site include 0.03 to 0.45 microns in 10" to 40" length with either.
OEM customized size filter
Different length & variety end cap are optional.
Different end caps pleated filter
Double Open End (DOE), 222 or 226 end configurations, all come standard with EPDM/PTFE/SILICONE/TEFLON seals.
Application
RO WATER TREATMENT
BOTTLED MINERAL WATER
CHEMICAL TECHNOLOGY FILTRATION
BEER & BEVERAGE FILTRATION
PETROCHMICAL INDUSTRY
SEA DESALINATION WATER EQUIPMENT
Packing & Delivery
Container for shipment
Container for shipment
Certifications
Our Company
Contact
The development of this product has good social and broad market prospects. It is suitable to use with aqueous and organic solvent samples due to its broad chemical compatibility.
water filter cartridges is inspected and tested by QC to guarantee its quality. It is suitable to use with aqueous and organic solvent samples due to its broad chemical compatibility.
