Lvyuan titanium stainless steel filter housing manufacturers with fin end cap for sea water desalination99
1. The design of Lvyuan reflects professionalism. It is designed takes into consideration that mechanical function, energy efficiency, and material efficiency. The star-shaped ring seal makes the filter element easy to disassemble and maintain
2. There is a warranty for . It contains no binders, agents, solvents, antistatic materials or wetting agents
3. The quality of the product has been greatly assured by out stringent process quality control system. It is manufactured from 100% Polypropylene construction
4. Adopting the advanced testing equipment to inspect the product during the production process guarantees the great performance and consistent quality of the product. There is different porosity across the depth of its filter medium
5. We have quality assurance to ensure the high quality of this product. It comes with a wide range of lengths for standard and full-flow housings

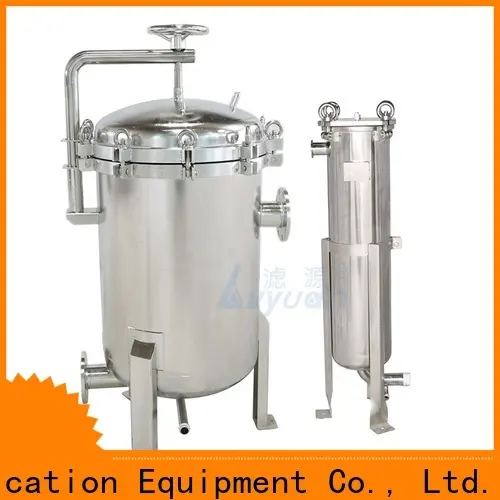

China Manufacture Custom Single Multi rounds SS 304 316L Stainless Steel Bag Filter Housing for Water Treatment
Bag filter is often characteristic of high flow rate and long service life. Bag filter is a widely used for liquid filtration, it can remove the particles of different size from liquid, in order to achieve liquid filtration, purification, separation, recovery purposes. It consists of three parts: bag housing, supporting basket and filter bags. According to flow rate, you may use multiple bags in a bag housing. First, the liquid enter into the housing from the inlet, which may placed in the side or on the top, and then flow into the filter bag which is braced by basket. Due to the impact pressure of fluid, the bag will extend and the liquid get evenly filtered through the bag and flow out of the outlet pipe. Impurities are trapped in the bag, the filtration process is complete.
Stainless steel Single bag filter housing and multi-bags filter housing, customized wall mounted or trolley type pneumatic big filter system/equipment/machine are provided.
Industrial pneumatic oil filtration system with bag filter equipment and mobile trolley
OEM Wall-mounted pneumatic stainless steel bag filter system
Product name: | Stainless Steel bag filter housing | Material | SUS304, SUS316, SUS316L |
Bag quantity | single bag or multi-bag | Bag number | # 1, 2, 3, 4, 5 or OEM |
Quantity option | 1 to 18 bags | Surface treatment | Polished or sandblast external |
Seal O-ring | silicon,NBR, EPDM, Viton, PTFE | In&outlet connection | V-clamp, thread or flange |
Bag Filtration rate | 0.5, 1 5, 10, 20, 50, 100, 200 to 500 micron | Usage | Liquid filtration |
Max working pressure | 100, 150, 300Psi, OEM | Wall thickness | 1.5~5mm |
Filter Bag Material and Specification:
Polyester Needle Felt (PET), Polypropylene Needle Felt (PPF), Polypropylene Plain (PPP), Nylon Monofilament (NMO), and many other materials..
Type | Flow rate (m³/H) | Filtration Area (㎡) | Size (DiameterxLength) |
#1 | 20 | 0.25 | 7''x16'' (180mmx410mm) |
#2 | 40 | 0.50 | 7''x32'' (180mmx810mm) |
#3 | 6 | 0.10 | 4''x8.25'' (102mmx210mm) |
#4 | 12 | 0.15 | 4''x14'' (102mmx356mm) |
#5 | 25 | 0.30 | 6 7/8''x34'' (175mmx870mm) |
Stainless Steel Bag Filter Housing with all accessories
1. Automotive
2. Food and Beverage
3. Chemical Processing
4. Paints, Inks, Resins and Coatings
5. Electronics
6. Petrochemicals
7. Municipal Water Treatment
8. Industrial Water Treatment
9. Pulp and Paper
10. Pharmaceutical
11. Lubricants, Metalworking Fluids
12. Solvents
BFH-01 V-clamp Closure Stainless steel single Bag Filter Housing
BFH-02 Flange/bolt lifting type Stainless Steel Single Bag Filter Housing
BFH-03 Flange/top install type Stainless steel Single Bag Filter Housing
BFH-04 Muti-bags Stainless Steel Bag Filter Housing
Custom-made Small flow rate Stainless Steel single Bag Filter Housing
Custom-made Stainless Steel Single Bag Filer Housing
Custom-made Dual Bag Filter Housing with trolley, pneumatic system available for option.
For more information, please feel free to contact us for the detail Catalog.
Single Bag filter housing Series, including Model BFL, BFH and BFC.
Multi bags filter housing, Model BFM multi-bag filter housing series:
Company Features
1. Guangzhou Lvyuan Water Purification Equipment Co., Ltd. is a highly popular company focused on . Lvyuan always keeps innovative to update the .
2. The high output of proves that Guangzhou Lvyuan Water Purification Equipment Co., Ltd. has solid technology ability.
3. Lvyuan relies on the technology to enable production of up to international standard. Guangzhou Lvyuan Water Purification Equipment Co., Ltd. is stably developing its international trade and logistics business and is committed to becoming a world-class distributor. Inquire now!
