Lvyuan activated carbon sintered filter suppliers manufacturer for industry
1. The outline of sintered filter suppliers is original and special.
2. The product consumes little energy. It has the Energy Star label which is the mark of energy-saving certification, confirming that it will not consume too much energy.
3. This product will perfectly match other designs been developed such as color of the wall, floor (whether it’s having wooden texture, tiled or granite so on), luxurious lamps and other lightings.

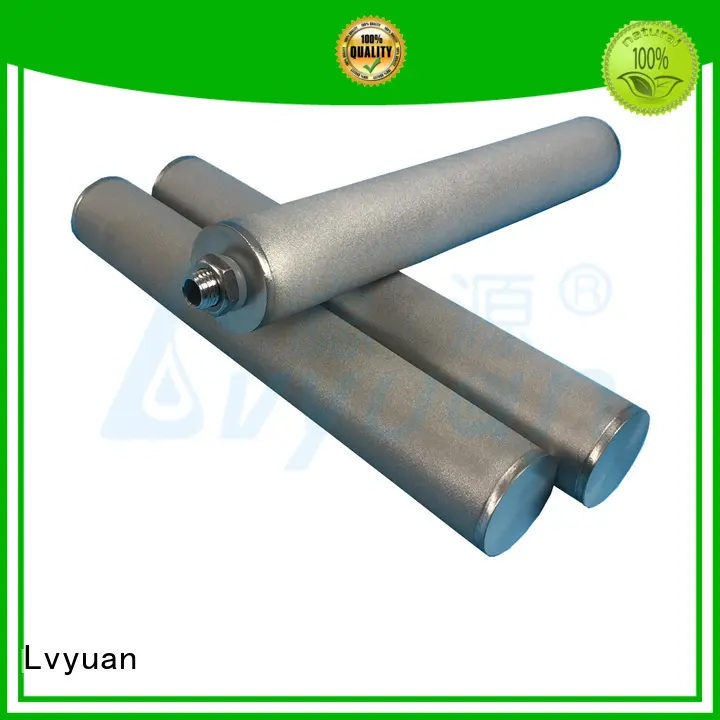

The stainless powder sintered filter is made by molding of stainless powder through high temperature sintering, also it adopts unique technology and strictly control production technique(include power grain distribution, molding and sintering).
The filter is characterized by high machinery strength, high conditions can be adjusted so as to produce the porous metal sintered filter with a wider precision scope. High-temperature resistance and Good air permeability.
Excellent machinery strength, applicable to the high temperature, high pressure and strong corrosivity.
◆◆ Main application cases
1. Filtration and recovery of catalyst.
2. Hot gas filtration in petrochemical industry
3. Purification of high temperature flue gas of metallurgy industry
4. Dust recovery of solid emulated bed and gas
5. Dust and end gas purification of thermal power and nuclear electric power generation.
Product Feature
◪ High-porosity and good air permeability, no media migration.
◪ High dirt holding capacity.
◪ High pressure resistance, withstand capacity and low pressure drop.
◪ High temperature resistance，Especially applicable to the hot gas filtration
◪ Various micron ratings available from 1 μm to 200 μm nominal.
◪ Strong corrosion resistant for wide chemical compatibility.
◪ Made entirely of SS316 or SS316L, cleanable and reusable
◪ Customized dimension are welcome.
Product Parameter
| Fiter Cartridge dimensions | |
| Length | 5’’ (125mm), 10’’ (250mm), 20’’ (500mm), 30’’ (750mm), 40’’ (1000mm) |
| Diameter | Ø60, 65, 70, 80 mm |
| Other dimensions | Customized by customer’s request. |
| Material of constructions | |
| Filter media | SUS316， 316L stainless steel |
| Connector type | Flat, Insert type, Thread type, Fin |
| End caps | DOE, SOE, 215, 222, 226, M20, M30, M42, 1’’ NPT/BSP or as request. |
| Sealing material | Silicone, NBR, EPDM, Buna, Teflon, etc |
| Performance | |
| Removal rate | 0.2-200 μm, etc |
| Operation Temperature | ≥ -270ºC, ≤500ºC |
| Cleaning method | back flushing, ultrasonic or other non-abrasive cleaning |
| Maximum Operating Pressure differential | 4.0 bar |
