Product Comparison
Closely following the market trend, Lvyuan Water Purification Equipment uses advanced production equipment and manufacturing technology to produce cartridge filter manufacturer. The product receives favors from the majority of customers for the high quality and favorable price.Lvyuan Water Purification Equipment 's cartridge filter manufacturer has better performances in the following aspects.
Application Scope
Lvyuan Water Purification Equipment 's cartridge housing manufacture has wide application. Here are a few examples for you.Lvyuan Water Purification Equipment insists on providing customers with reasonable solutions according to their actual needs.
Company Advantages1. The increasing notability of sintered filter suppliers can not be achieved without the unique design.
2. The product has characteristics of high intensity and durability thanks to the adoption of the quality system.
3. The product meets the set industry standards in all respects, including durability, performance, function, etc.
4. For my construction projects, this product could be an ideal solution. It is able to match my scheduled architectural styles.- Said one of our customers.
5. The product is lightweight enough, which makes sure that it is easy to use for healthcare practitioners and helps reduce hand fatigue.

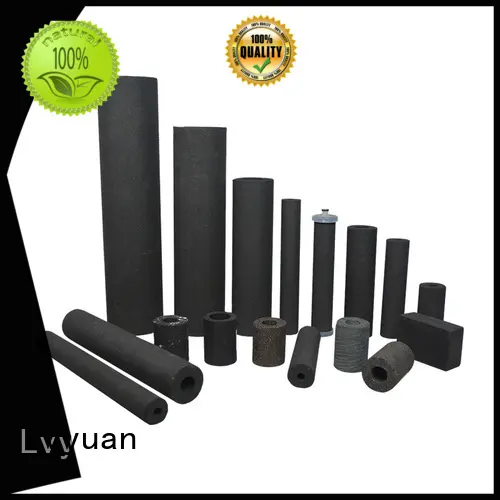

Lvyuan sintered carbon block filter cartridge is made of high quality and high iodine value activated carbon materials, such as coconut shell, coal. Sintering moulding type CTO carbon block filters have strong adsorption ability and good rigid structure. Sintered carbon block filter cartridge has high filtration efficiency. It can remove chlorine, bad taste and odor, chloramine, sediment, organic chemical and heavy metal etc. What’s more, sintered carbon block filters are more stable and more reliable, with longer service life than normal extruded type CTO carbon water filter catridges.
Product Feature
◪ Large filtration area, strong absorption capacity, high flow rate.
◪ High dirt holding capacity, low drop out, high filtration efficiency.
◪ Fits to all standard filter housings or sport bottles.
◪ High iodine value activated carbon materials
◪ Effectively remove bad smells, colors, chlorinated compounds, VOCS and THMS;
◪ Long service life
Product Parameter
Fiter Cartridge dimensions |
Outer diameter | 14, 16, 19, 25, 28, 30, 35, 38, 40, 45, 46, 50, 53, 55, 60, 63, 64, 67, 70, 76, 90, 96.5, 103, 105, 121mm |
Inner diameter | 6, 8, 10, 12, 14, 16, 18, 20, 22, 25, 28, 30, 32, 35, 38, 40, 45, 50mm |
Length | 5’’ (125mm), 10’’ (250mm), 20’’ (500mm), 30’’ (750mm), 40’’ (1000mm) |
Other dimensions | Customized by customer’s request. |
Material of constructions |
Filter media | Coconut shell carbon, coal carbon |
Enc caps | Polypropylene |
Netting | Polypropylene |
Gasket/oring material | Silicone, EPDM, NBR, Viton |
Performance |
Removal rate | 5, 10, 25 um |
Maximum Operating Temperature | ≦ 80℃ |
Maximum Operating Pressure | 10 bar |
Maximum differential pressure | 7 bar at 25℃ |
Product Details
part.1
Various dimensions. Dimension can be customized as request.
part.3
Innovative technology upgrade sintered carbon filter functions with anti-scale, heavy metal removal, anti-bacterial, fluorine and ammonia nitrogen removal, etc.
Product Applications
Pharmaceuticals and medical
Food and beverage processing
Company Features1. Established years ago, Guangzhou Lvyuan Water Purification Equipment Co., Ltd. is a well-known Chinese manufacturer of sintered filter suppliers with extensive experience in the business.
2. With the world leading equipment & technology, we provide you perfect sintered plastic filter.
3. We ensure our impact on the environment is minimized when achieving our business growth. We ask our staff to conduct all activities in a sustainable manner. We have implemented a wide range of initiatives to realize sustainable development. For example, we fulfill our social responsibility through reduce CO2 emission.
