Application Scope
Lvyuan Water Purification Equipment 's cartridge housing manufacture can play a role in various industries.With many years of practical experience, Lvyuan Water Purification Equipment is capable of providing comprehensive and efficient one-stop solutions.
Company Advantages1. The raw material of Lvyuan high flow household replacement filter goes through a rigorous selection procedure.
2. The product is praised by our customers for its high performance and good durability.
3. Strict quality tests are conducted before shipment.
4. Its foreign markets have been developed by our identifying foreign consumer groups and consumer demand.

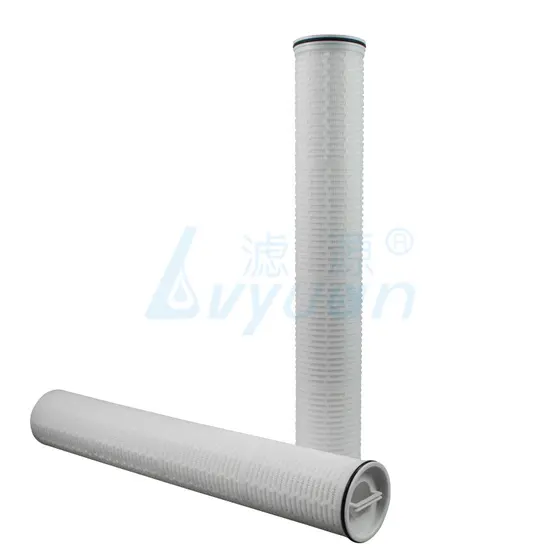

The LY-HFPL filter cartridge is a new product developed by Lvyuan Water Purification Equipment Co.,Ltd. In Guangzhou, China. It has a 6 inch/152mm large diameters. It is made of 100% polypropylene media. The hard strong cage enables the high water flow filters to undertake a larger operation pressure during filtration process. The large diameter with big filter area insures to reduce the number of filter cartridges and the dimension of housing required. The long service life and high flow rate result in low investment and less manpower in many applications. This kind of LY-HFPL product has various applications on water treatment.
Product Feature
◪ All contaminants can be removed within the cartridges because of the flow direction.
◪ Up to 110m³/h flow rate per one filter cartridge for water filtration.
◪ Max. 50% reduction of the filter system.
◪ Multi membrane layers for large dirt holding in the high flow filter elements.
◪ Thermally bonded construction for stronger pressure resistance.
◪ Handle design quick installation, safety and reduce the cost.
Product Parameter
Product Name | Repalcement High flow water filter cartridge 60 inch (LY-HFPL) |
Filter media | PP/Polypropylene membrane |
Support | PP/Polypropylene |
Core/End cap | PP/Polypropylene |
Seal material | Silicone/EPDM/VITON/PTFE/NBR |
Outer diameter | 6”(152mm) |
Inner diameter | 3.5 inch(89mm) |
Length | 20”, 40”, 60”, Customized |
Max.operating temperature | 82℃ |
Micron rating(μm) | 1, 4, 5, 10, 15, 20, 40, 70, 100 |
Product Details
part.1
★ Graded filtration pore sizes in one high flow element.
★ Easier and more convinient installation and replaced.
★ Pleated with optimized membrane structure, better filtration and efficiency.
★ U-shaped sealing groove ensures high filtration efficiency.
★ From filter inside to outside filtration, all impurities are trapped inside the filter.
Product Applications
Municipal tap water, Prefiltration of RO, Pre treatment of sea water desalination
Condensate water filtration, hot water recovery in power generation
API, solvents, and water filtration in BioPharm market
The filtration of bottled water, high fructose, edible oil, soft drinks and milk
Paints and coatings, Petrochemical, refineries, CD/DVD, magnetic media, Petrochemical, Refineries
Microelectronics, film, fiber and resin
Company Features1. Lvyuan takes the leading position in hi flow water filter industry.
2. With a strong sense of responsibility, our professional technicians pay attention to each detail of the high flow filter to guarantee the quality.
3. Lvyuan is known for the superb service. Call now! It's a great aim for Lvyuan to be target supplier among the market. Call now! Guangzhou Lvyuan Water Purification Equipment Co., Ltd. will continue to perform strategic innovation and market creation. Call now! Guangzhou Lvyuan Water Purification Equipment Co., Ltd. aims to help clients achieve their values and dreams. Call now!
