Lvyuan Filter-Industrial Water Filter Cartridge & Housing Manufacturer Since 2009.

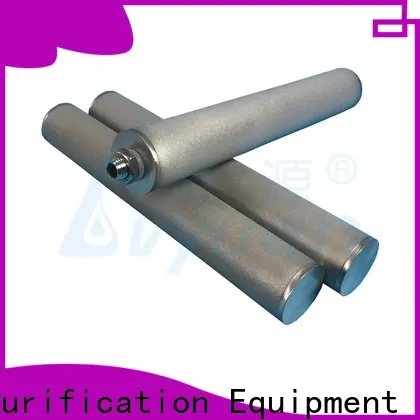

Lvyuan block sintered powder ss filter rod for industry
1. The appealing design of Lvyuan sintered steel filter far exceeds the market average. The star-shaped ring seal makes the filter element easy to disassemble and maintain
2. The adoption of this product promotes the reform of production methods. Manufacturers can be seen in the increase in labor productivity and the reduction in human capital costs. It can effectively control filtration precision
3. The product is able to work continuously. It can operate 24/7 365 days a year without rest except for maintenance. The graded gradient design helps it to avoid rapid clogging
4. The product is not likely to have dimension errors. During the testing stage, its sizes and shape have been checked under the precise measuring machines. There is different porosity across the depth of its filter medium
5. The product features a long service life. With a full-shield design, it can effectively avoid leakage problems such as engine oil leakage. It features a high flow rate and stable filtering accuracy
The stainless powder sintered filter is made by molding of stainless powder through high temperature sintering, also it adopts unique technology and strictly control production technique(include power grain distribution, molding and sintering).
The filter is characterized by high machinery strength, high conditions can be adjusted so as to produce the porous metal sintered filter with a wider precision scope. High-temperature resistance and Good air permeability.
Excellent machinery strength, applicable to the high temperature, high pressure and strong corrosivity.
◆◆ Main application cases
1. Filtration and recovery of catalyst.
2. Hot gas filtration in petrochemical industry
3. Purification of high temperature flue gas of metallurgy industry
4. Dust recovery of solid emulated bed and gas
5. Dust and end gas purification of thermal power and nuclear electric power generation.
Product Feature
◪ High-porosity and good air permeability, no media migration.
◪ High dirt holding capacity.
◪ High pressure resistance, withstand capacity and low pressure drop.
◪ High temperature resistance，Especially applicable to the hot gas filtration
◪ Various micron ratings available from 1 μm to 200 μm nominal.
◪ Strong corrosion resistant for wide chemical compatibility.
◪ Made entirely of SS316 or SS316L, cleanable and reusable
◪ Customized dimension are welcome.
Product Parameter
| Fiter Cartridge dimensions | |
| Length | 5’’ (125mm), 10’’ (250mm), 20’’ (500mm), 30’’ (750mm), 40’’ (1000mm) |
| Diameter | Ø60, 65, 70, 80 mm |
| Other dimensions | Customized by customer’s request. |
| Material of constructions | |
| Filter media | SUS316， 316L stainless steel |
| Connector type | Flat, Insert type, Thread type, Fin |
| End caps | DOE, SOE, 215, 222, 226, M20, M30, M42, 1’’ NPT/BSP or as request. |
| Sealing material | Silicone, NBR, EPDM, Buna, Teflon, etc |
| Performance | |
| Removal rate | 0.2-200 μm, etc |
| Operation Temperature | ≥ -270ºC, ≤500ºC |
| Cleaning method | back flushing, ultrasonic or other non-abrasive cleaning |
| Maximum Operating Pressure differential | 4.0 bar |
Product Details
Product Applications
Company Features
1. Guangzhou Lvyuan Water Purification Equipment Co., Ltd. has been leading the industry of sintered steel filter .
2. Our technology takes the lead in the industry of sintered powder ss filter .
3. We support sustainable management to back up our company's long-term viability. We will make our production progress to be compliant with environmental regulations or conform to sustainable policies and initiatives.
