Lvyuan Filter-Industrial Water Filter Cartridge & Housing Manufacturer Since 2009.
Lvyuan high end high flow water filter supplier for sea water desalination
1. The design of Lvyuan high flow water filter is strictly conducted. It involves many factors including part tolerances, size limitations, materials selection, mechanical analysis, function realization, etc. There is different porosity across the depth of its filter medium
2. Without consideration of the Lvyuan staff, high flow water filter can not be produced to be so excellent. It comes with a wide range of lengths for standard and full-flow housings
3. high flow water filter combines style, presence and exhilarating performance. It will trap larger particles in the outer layers and capture smaller particles in the deep layer
4. The product is extensively known for high quality and reliability. It can effectively control filtration precision
5. This product has comprehensive functionality and high performance. Its unique density gradient construction maximizes efficiency and minimizes pressure drop
Product Feature
◪ All contaminants can be removed within the cartridges because of the flow direction.
◪ Up to 110m³/h flow rate per one filter cartridge for water filtration.
◪ Large water capacity up to 500GPM.
◪ Max. 50% reduction of the filter system.
◪ Smaller installation place and easy change out.
◪ Handle design quick installation, safety and reduce the cost.
Product Parameter

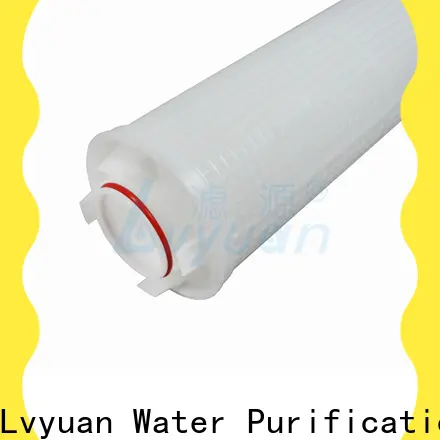

| Product Name | HFM series high flow water filter replacement filter cartridge (LY-HFM) |
| Filter media | Polypropylene/PP membrane |
| Support | PP/Polypropylene |
| Core/End cap | PP/Polypropylene |
| Seal material | Silicone/EPDM/VITON/PTFE/NBR |
| Outer diameter | 6.5”( 165mm) |
| Length | 20”(528mm), 40”(1022mm), 60”(1538mm), Customized |
| Max.operating temperature | 82℃ |
| Micron rating(μm) | 1, 4, 5, 10, 15, 20, 40, 70, 100 |
Product Details
★ Lower cost of operation and maintenance, widely excellent chemical capacity.
★ Good quality membrane and scientifically designed structure make a very competitive option in the market.
Product Applications
Municipal water
Company Features
1. Guangzhou Lvyuan Water Purification Equipment Co., Ltd. highly value every detail at every stage of manufacture to ensure quality of high flow water filter .
2. Lvyuan always adheres to the goal of becoming a high flow pleated filter cartridge for water treatment manufacturer. Contact!
