Lvyuan Filter-Industrial Water Filter Cartridge & Housing Manufacturer Since 2009.

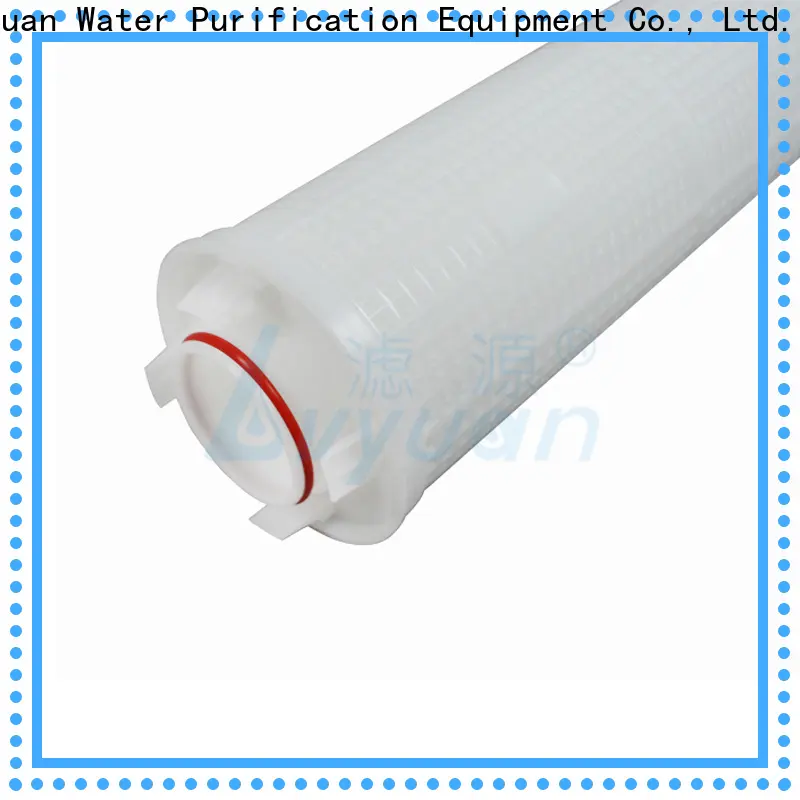

Lvyuan high flow water filter replacement cartridge supplier for sea water desalination
1. The design of high flow water filter replacement cartridge adopts the idea of high flow replacement filter , using the concept of high flow pleated filter cartridge for water treatment , thus have features like high flow water filter for water filtration . All its elements are made with FDA compliant material for food and beverage contact
2. This product is superior in appearance and versatility, which is popular in the field. The filter media is thermally bonded to prevent fiber release while providing consistent flow rates
3. The product is firm enough to stand the loading. It has the ability to withstand a certain pressure or weight without getting deformed. It has increased dirt holding capacity and longer life
Product Feature
◪ All contaminants can be removed within the cartridges because of the flow direction.
◪ Up to 110m³/h flow rate per one filter cartridge for water filtration.
◪ Large water capacity up to 500GPM.
◪ Max. 50% reduction of the filter system.
◪ Smaller installation place and easy change out.
◪ Handle design quick installation, safety and reduce the cost.
Product Parameter
| Product Name | HFM series high flow water filter replacement filter cartridge (LY-HFM) |
| Filter media | Polypropylene/PP membrane |
| Support | PP/Polypropylene |
| Core/End cap | PP/Polypropylene |
| Seal material | Silicone/EPDM/VITON/PTFE/NBR |
| Outer diameter | 6.5”( 165mm) |
| Length | 20”(528mm), 40”(1022mm), 60”(1538mm), Customized |
| Max.operating temperature | 82℃ |
| Micron rating(μm) | 1, 4, 5, 10, 15, 20, 40, 70, 100 |
Product Details
★ Lower cost of operation and maintenance, widely excellent chemical capacity.
★ Good quality membrane and scientifically designed structure make a very competitive option in the market.
Product Applications
Municipal water
Company Features
1. The factory is surrounded by an advantageous geographical position. It is near to the waterway, expressway, and airport. This position has offered us great benefits in cutting transportation costs and shortening delivery time.
2. We provide global customers with perfect integrated solutions for high flow water filter replacement cartridge . Ask!
