Lvyuan Filter-Industrial Water Filter Cartridge & Housing Manufacturer Since 2009.

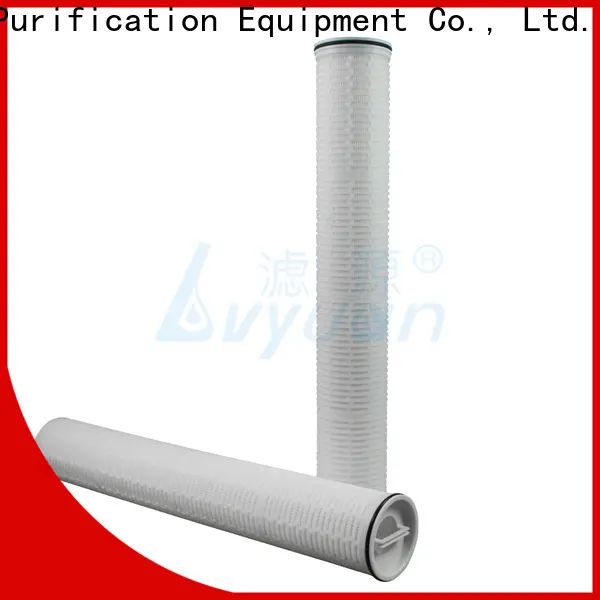

Lvyuan high flow water filter replacement for industry
1. Lvyuan high flow water filter for water filtration has been tested according to the general standards. It is tested in terms of functionality, strength, stiffness, wears, and corrosion. It is manufactured from 100% Polypropylene construction
2. Customers think highly of our high flow water filter which is of high quality. The self-supporting fiber matrix enables a coreless design that is both economical and strong
3. The product does not accumulate too much heat. It has a radiator that can absorb the heat produced and then effectively dissipate the heat into the surrounding environment. It has a large effective filter area
4. The product features safety in use. Controlled by an advanced circuit, it has the over-loading protection function in each main process. It features a high flow rate and stable filtering accuracy
Product Feature
◪ All contaminants can be removed within the cartridges because of the flow direction.
◪ Up to 110m³/h flow rate per one filter cartridge for water filtration.
◪ Max. 50% reduction of the filter system.
◪ Multi membrane layers for large dirt holding in the high flow filter elements.
◪ Thermally bonded construction for stronger pressure resistance.
◪ Handle design quick installation, safety and reduce the cost.
Product Parameter
| Product Name | Repalcement High flow water filter cartridge 60 inch (LY-HFPL) |
| Filter media | PP/Polypropylene membrane |
| Support | PP/Polypropylene |
| Core/End cap | PP/Polypropylene |
| Seal material | Silicone/EPDM/VITON/PTFE/NBR |
| Outer diameter | 6”(152mm) |
| Inner diameter | 3.5 inch(89mm) |
| Length | 20”, 40”, 60”, Customized |
| Max.operating temperature | 82℃ |
| Micron rating(μm) | 1, 4, 5, 10, 15, 20, 40, 70, 100 |
Product Details
★ Graded filtration pore sizes in one high flow element.
★ Easier and more convinient installation and replaced.
★ Pleated with optimized membrane structure, better filtration and efficiency.
★ U-shaped sealing groove ensures high filtration efficiency.
★ From filter inside to outside filtration, all impurities are trapped inside the filter.
Product Applications
Municipal tap water, Prefiltration of RO, Pre treatment of sea water desalination
Company Features
1. Guangzhou Lvyuan Water Purification Equipment Co., Ltd. has established a technology center to import test equipment from abroad.
2. We work to implement important strategic sustainable initiatives to reduce our environmental footprint. We search for new opportunities to improve resource efficiency and reduce production waste.
