Lvyuan Hot sale ss bag filter exporter for sea water
1. Lvyuan stainless bag filter contains many delicate manchineel parts. These components include pumps, compressors, generators and other welded and welded components. It will not impart taste, odor, or color to the filtered product
2. One of our customers said that the product is awesome and doesn't irritate my skin. It is also pretty lightweight, so it doesn't weigh my body down. The inner support layer is closely connected to the filter material, making it of strong impact resistance
3. The product is tested to be fully match the set quality standards. Its filter medium is customizable according to the different water quality in the application
4. The quality of the product has been greatly improved since our workers become more and more proficient in the production. It has found a variety of applications ranging from industrial, chemical process, food and beverage, cosmetics and water
5. ss bag filter has remarkable performance. It does not secrete dissoluble material during operation
Features :
1. The bag filter has large flow rate capacity, small volume and dirt holding capacity.
2. It is convenient and quick to replace the filter bag, and the filter is no-clean, saving labor and time.
3. The side leakage rate of the filter bag is small, which greatly improves the filtration quality.
4. The bag filter can withstand greater working pressure, low pressure loss, low operating cost and obvious energy saving effect.
5. Filter bag filtration accuracy has been continuously improved and has reached 0.5um.
6. The bag filter has a wide range of applications, flexible use and various installation methods. Widely used in environmental protection, chemical, metallurgical, pharmaceutical, food and other industries.
LY-BFL Stainless Steel BAG Filter Housing standard Specification:
Material | SS304 |
Bag material | PP/PE/SS |
Finishing | outer-polished or sand blast surface inner-polished |
Closure | V-clamp |
Inlet/Outlet | 2''NPT threaded |
Pressure | Maximum 0.7 Mpa/100psi Continuous operating 0.5 Mpa/72.5psi |
Sealing | EPDM O-ring |
Filter bag | 180*810mm |
Users can choose filter bags of different shapes, different apertures, different structures and different materials according to different filtering needs to obtain the most economical and effective filtering effect.

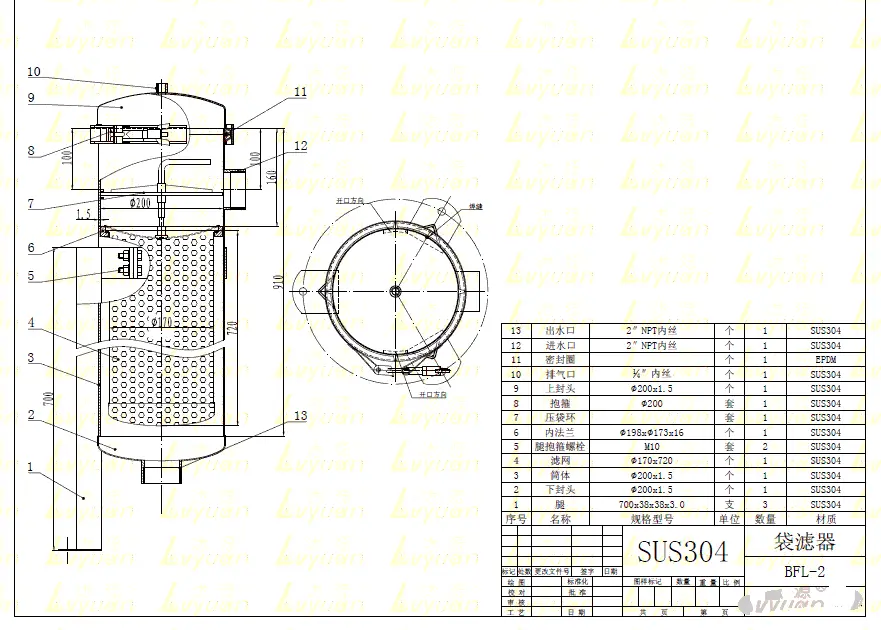

NO. | Name | Quantiy/ Material |
1 | 1 Leg 700x38x38x3.0 mm | 3pcs/ss304 |
2 | Bottom head φ200x1.5 mm | 1pcs/ss304 |
3 | Housing body φ200x1.5 mm | 1pcs/ss304 |
4 | Basket φ170x720 mm | 1pcs/ss304 |
5 | Clamp-bolt for leg M10 | 2sets/ss304 |
6 | Internal flange φ198x173x16 | 1pcs/ss304 |
7 | Plate | 1set/ss304 |
8 | V-brand clamp φ200 mm | 1set/ss304 |
9 | Upper head φ200x1.5 mm | 1pcs/ss304 |
10 | Vent 1/4" thread | 1pcs/ss304 |
11 | EPDM O-ring | 1pcs/ss304 |
12 | Water inlet 2" NPT thread | 1pcs/ss304 |
13 | Water outlet 2" NPT thread | 1pcs/ss304 |
sanitary filter housing clamp type filter housing single cartridge filter housing cartridge filter housing
1.How I choose the bag filter housing size?
We can recommand one for you.As you tell us what kind of fluid you want to filter, including flow rate, operating pressure, temperature, acid value etc.
2.How about the lead time?
3.Can we order small quantity?
Mobil/WeChat/Skype/WhatsApp:+86 13574135485
Guangzhou Lvyuan water Purification Equipment CO., Ltd.
Website: www.lyfilter.com
Address:No.4,shijiaoju street,Xinzao Town, PanYu Dist. Guangzhou,Guangdong,China
Tel: +86-20-34460508
Fax:+86-2034425655
