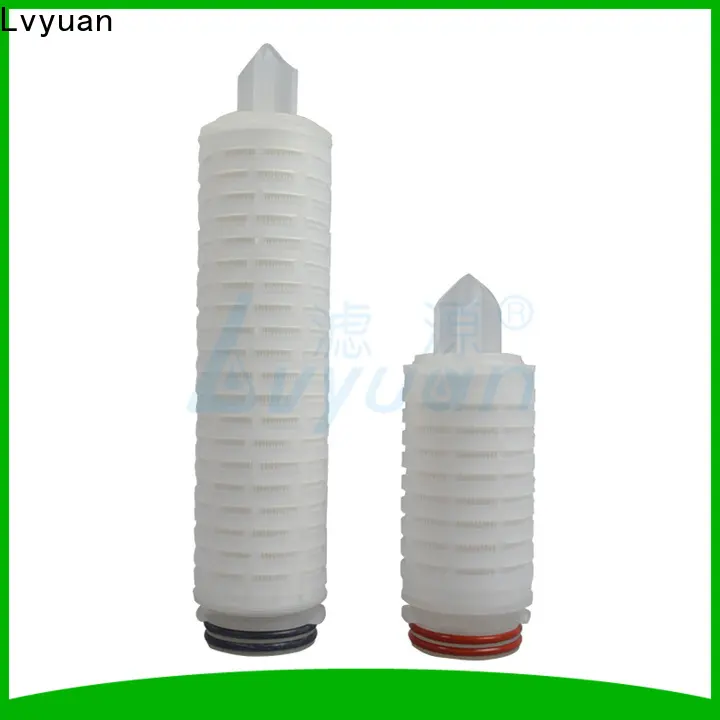

Lvyuan membrane pleated water filter cartridge replacement for liquids sterile filtration
1. Our pleated water filter cartridge varies from sizes, color and shapes. It comes with a wide range of lengths for standard and full-flow housings
2. Guangzhou Lvyuan Water Purification Equipment Co., Ltd.'s large scale and respected brand for pleated water filter cartridge , give it a big competitive advantage. The filter media is thermally bonded to prevent fiber release while providing consistent flow rates
3. By introducing advanced machines, we has enough capability to produce this product with quality assurance. It is suitable to use with aqueous and organic solvent samples due to its broad chemical compatibility
4. Our skilled engineers ensures this high quality product by implementing the strict quality control system. It is available in a wide selection of micron ratings from 1 to 100 μm
5. The product has reached the domestic advanced level and contributed to the international trade. It can provide accurate analysis and results for sensitive ion chromatography applications
PP pleated filter cartridge deliver high efficiency and consistent filtration of fluids in a wide range of critical applications.
They are constructed of pleated membrane filter media that provides removal of particles from 0.1 to 60um, the pore size is not affected by the vibration of feeding pressure, due to its unique low differential pressure, high flow volume, excellent filtration microns.
The high surface area ensures long service life and low initial pressure drops. All cartridges hardware components are made from high purity polypropylene materials for use in critical process application. All the Cartridges are manufactured and assembled in a clean room environment to minimized the possibility of contamination.
This type of cartridges are available in a wide range of configurations to fit most commercially available filter housings.
Product Feature
◪ Excellent chemical compatibility. Suitable for filtering organic solvents, acid bases.
◪ The multi layers PP membrane structure enables a graded filtration pore sizes and increases the dirt-holding capacity of the PP pleated water cartridge filters.
◪ Large flow volume, low differential pressure and long service life.
◪ Hydrophilic membrane with high flow.
◪ Pleated design increased the filtration area for deep filtration.
◪ Application of thermal-bonding technique, strong and no any pollution.
◪ Full rage of removal microns ratings.
◪ Graded pore density for high dirt holding capacity.
◪ Common use in clean and sterilize with cabinet & steam with high pressure.
Product Parameter
| Filter media | PP/Polypropylene |
| Support | PP/Polypropylene |
| Core/End cap | PP/Polypropylene |
| Seal material | Silicone/EPDM/NBR/Viton/Teflon |
| Outer diameter | 2.7'' , customized |
| Length | 9.75'', 10'', 20'', 30'', 40'' customized |
| End cap | DOE, 215, 222, 226, FIN, FLAT, Stainless steel, or customized. |
| Filtration area | 0.4-0.7m² (10'') |
| Max.operating temperature | 88℃, 0.28Mpa. 60℃, 0.42Mpa. |
| Micron rating(μm) | 0.1, 0.2, 0.45, 0.65, 1, 2, 3, 5, 10, 20, 25, 30, 50, 60 |
Product Details
Product Applications
Reverse osmosis water system prefiltration
Company Features
1. Guangzhou Lvyuan Water Purification Equipment Co., Ltd. is internationally well-known for its technology strength.
2. Lvyuan always adjusts itself to match the requirements of consumers. Get more info!
