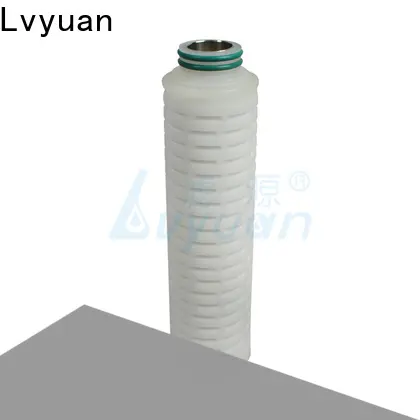

Lvyuan pleated filter cartridge suppliers replacement for organic solvents2
1. Lvyuan pleated type filter has been analyzed in many aspects, such as operational efficiency, safety, functionality, productivity, components performance, ease of operation and maintenance. The graded gradient design helps it to avoid rapid clogging
2. This product has many excellent properties and has been widely used in the market. It contains no binders, agents, solvents, antistatic materials or wetting agents
3. This product is successful due to its fatigue resistance. It can take on a certain number of cycles and work continuously without any damage. The filter media is thermally bonded to prevent fiber release while providing consistent flow rates
hydrophobic PTFE(Polytetrafluoroethylene) membrane and non-woven support materials. Adapters are thermally welded without the uses of glues or adhesives to prevent any possibility of pollution. These economical PTFE membrane cartridge filters provide superior hydrophobicity as compared to polypropylene filters commonly used in compressed air applications, making it ideally suited for utility as well as tank vent applications, without the higher costs of the typical PTFE filter.
Product Feature
◪ Excellent hydrophobic performance, the water erosion is more resistant than the common PVDF membrane.
◪ Withstand water shock, back pressure and repeated high temperature sterilization.
◪ 100% bacterial retention & effective filtration to 0.2 μm particle.
◪ 100% integrity tested.
◪ It is constructed of 2 kinds of hot welding materials(PTFE & PP), not any adhesives, clean & stable, meet the high standards of pharmaceutical industry.
Product Parameter
| Product Name | 10 inch PTFE membrane pleated filter cartridge with stainless steel 222 |
| Filter media | PTFE membrane |
| Support | PP/Polypropylene |
| Core/End cap | PP/Polypropylene |
| Seal material | Silicone/EPDM/VITON/PTFE/NBR/TEFLON |
| Outer diameter | 2.7‘’(69mm) |
| Length | 9.75'', 10'', 20'', 30'', 40'', Customized |
| End cap | 215/222/226/FIN/DOE/SS |
| Filtration area | ≥0.72m² |
| Max.operating temperature | 80℃, 0.173Mpa |
| Micron rating(μm) | 0.2, 0.45 |
Product Details
Product Applications
Reverse osmosis water system prefiltration
Company Features
1. Guangzhou Lvyuan Water Purification Equipment Co., Ltd. has been thought of a highly reliable Chinese manufacturer, as we provide the highest quality pleated type filter in the industry.
2. pleated filter cartridge suppliers is made by our best technology and the best staff.
3. We are determined to achieve energy-saving and the environmentally-friendly manufacturing way in the future. We will upgrade the old waste treating equipment with more effective ones, and make full use of every kind of energy resources to reduce energy waste.
