Lvyuan pleated filter cartridge suppliers with stainless steel for industry1
1. Lvyuan high efficiency pleated filters is precisely manufactured using leading-edge production techniques in line with the current market standards. It does not secrete dissoluble material during operation
2. Customized service can be provided for our pleated filter cartridge suppliers . It contains no binders, agents, solvents, antistatic materials or wetting agents
3. The seams and seam allowances of the product are even. The advanced stitching machinery is used during the production to make sure every stitching is finely treated. All its elements are made with FDA compliant material for food and beverage contact
4. The product is highly resistant to bacteria. Thanks to the nature of the materials used and the sealant on top, it will not be able to absorb any bacteria. It can also filter particulates, microbial organisms, ferric oxide, and other impurities
5. There are no impurities or natural wax on the product. The scouring process applied in its production helps eliminate wax and non-fibrous impurities such as remains of seed fragments. The self-supporting fiber matrix enables a coreless design that is both economical and strong

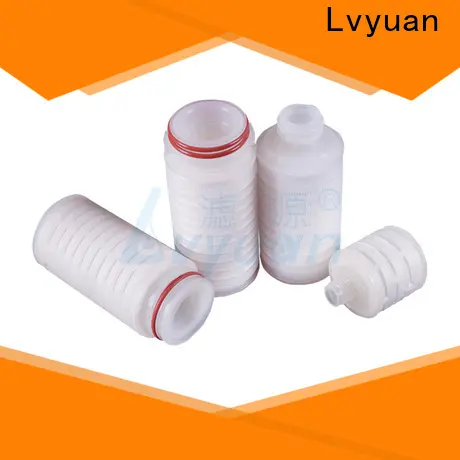

The PES pleated filter cartridge is constructed of imported polyethersulfone(PES) membrane media and non-woven support materials.The material of cage core and end caps is polypropylene. Absolute precision polyethersulfone membrane (PES) filter cartridges, adapters are thermally welded with media without using any glue, not any pollution.
The PES filter cartridge is ideal for critical prefiltration to sterilise applications and final filtration in a broad range of demanding non-sterile application. The inherently hydrophilic membrane contains no surfactant or wetting agents, which leads to effective filtration and flow rates
Due to its wide range of PH values and lower adsorption to protein than nylon membrane, it has become the preferred filter cartridge for final filtration in pharmaceutical, food and chemical industries.
Product Feature
◪ The product offers excellent retention efficiency and extended on-stream life making it an ideal filter for the clarification of beer, wine and bottled water.
◪ Excellent performance of chemical compatibility.
◪ High temperature resistance, Acid & Alkali resistance.
◪ Hydrophilic membrane with high flow.
◪ Non-fiber releasing, it meets the high standard pharmaceutics & food industry requirements.
◪ PES pleated cartridge filters are integrity tested during production to assure performance and consistency.
Product Parameter
| Product Name | 0.2 μm PES membrane pleated cartridge filter 5 inch |
| Filter media | PES(Polyethersulfone) |
| Support | PP/Polypropylene |
| Core/End cap | PP/Polypropylene |
| Seal material | Silicone/EPDM/VITON/PTFE/NBR/TEFLON |
| Outer diameter | 2.7'' (69mm) |
| Length | 5'', 9.75'', 10'', 20'', 30'', 40'', Customized |
| End cap | 215/222/226/FIN/DOE/SS |
| Filtration area | ≥0.6m² |
| Max.operating temperature | ≤140℃, 0.28Mpa |
| Micron rating(μm) | 0.1, 0.2, 0.45, 0.65 |
Product Details
Product Applications
Medicine
Company Features
1. Guangzhou Lvyuan Water Purification Equipment Co., Ltd. is one of the most outstanding manufacturers of pleated filter cartridge suppliers .
2. Guangzhou Lvyuan Water Purification Equipment Co., Ltd. has long focused on the R&D and operation of pleated filter element and solutions.
3. We believe innovation drives to success. We cultivate and enhance our innovative thinking and apply it to our R&D process. Besides, we continually invest in research and technology, hoping to provide unique and practical products for customers.
