Lvyuan pleated filter cartridge suppliers with stainless steel for organic solvents
1. Lvyuan pleated filter cartridge suppliers is manufactured by our professional team, meeting the highest safety standards in the water parks industry while delivering entertainment, joy, and comfort. It has found a variety of applications ranging from industrial, chemical process, food and beverage, cosmetics and water
2. Things will never happen that pleated filter cartridge suppliers gets damaged during transportation because of our packing. It can also filter particulates, microbial organisms, ferric oxide, and other impurities
3. The product features both soft cushioning for foot protection and firmer cushioning for propulsion. The materials used in the forefoot and rearfoot part vary for different protection functions. It features a high flow rate and stable filtering accuracy
4. The product has strong colorfastness. UV screening agent, being added to the material during the production, protects this product from color fading under scorching sunlight. It offers excellent filtration and good thermal stability

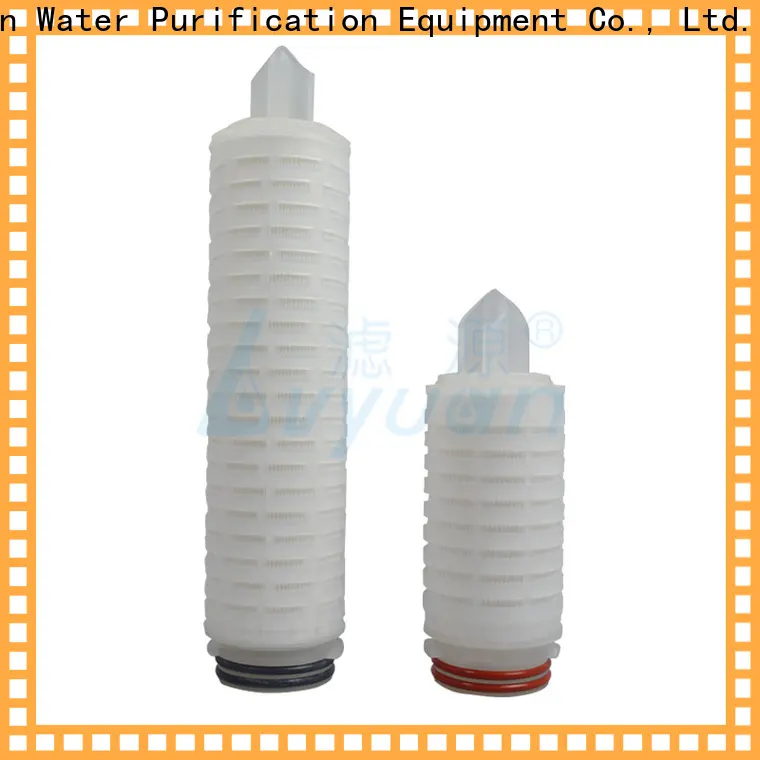

PP pleated filter cartridge deliver high efficiency and consistent filtration of fluids in a wide range of critical applications.
They are constructed of pleated membrane filter media that provides removal of particles from 0.1 to 60um, the pore size is not affected by the vibration of feeding pressure, due to its unique low differential pressure, high flow volume, excellent filtration microns.
The high surface area ensures long service life and low initial pressure drops. All cartridges hardware components are made from high purity polypropylene materials for use in critical process application. All the Cartridges are manufactured and assembled in a clean room environment to minimized the possibility of contamination.
This type of cartridges are available in a wide range of configurations to fit most commercially available filter housings.
Product Feature
◪ Excellent chemical compatibility. Suitable for filtering organic solvents, acid bases.
◪ The multi layers PP membrane structure enables a graded filtration pore sizes and increases the dirt-holding capacity of the PP pleated water cartridge filters.
◪ Large flow volume, low differential pressure and long service life.
◪ Hydrophilic membrane with high flow.
◪ Pleated design increased the filtration area for deep filtration.
◪ Application of thermal-bonding technique, strong and no any pollution.
◪ Full rage of removal microns ratings.
◪ Graded pore density for high dirt holding capacity.
◪ Common use in clean and sterilize with cabinet & steam with high pressure.
Product Parameter
| Filter media | PP/Polypropylene |
| Support | PP/Polypropylene |
| Core/End cap | PP/Polypropylene |
| Seal material | Silicone/EPDM/NBR/Viton/Teflon |
| Outer diameter | 2.7'' , customized |
| Length | 9.75'', 10'', 20'', 30'', 40'' customized |
| End cap | DOE, 215, 222, 226, FIN, FLAT, Stainless steel, or customized. |
| Filtration area | 0.4-0.7m² (10'') |
| Max.operating temperature | 88℃, 0.28Mpa. 60℃, 0.42Mpa. |
| Micron rating(μm) | 0.1, 0.2, 0.45, 0.65, 1, 2, 3, 5, 10, 20, 25, 30, 50, 60 |
Product Details
Product Applications
Reverse osmosis water system prefiltration
Company Features
1. Favored by more and more customers, Lvyuan now gets more popular in the field of pleated filter cartridge suppliers .
2. Our factory faithfully implements the management systems of ISO 9001 and ISO 14001 to manufacture products. These ISO management systems not only guarantee the products' quality but also ensure that the products are friendly to the environment.
3. Guangzhou Lvyuan Water Purification Equipment Co., Ltd. is committed to providing elegant and timeless lifestyle pleated filter element products. Inquiry!
