Lvyuan Filter-Industrial Water Filter Cartridge & Housing Manufacturer Since 2009.


Lvyuan pleated filter manufacturers replacement for diagnostics 1
Lvyuan pleated filter manufacturers replacement for diagnostics 2
Lvyuan pleated filter manufacturers replacement for diagnostics 3
Lvyuan pleated filter manufacturers replacement for diagnostics 4
Lvyuan pleated filter manufacturers replacement for diagnostics 5
Lvyuan pleated filter manufacturers replacement for diagnostics 6
Lvyuan pleated filter manufacturers replacement for diagnostics 7
Lvyuan pleated filter manufacturers replacement for diagnostics 8
Lvyuan pleated filter manufacturers replacement for diagnostics 9
Lvyuan pleated filter manufacturers replacement for diagnostics 10
Lvyuan pleated filter manufacturers replacement for diagnostics 1
Lvyuan pleated filter manufacturers replacement for diagnostics 2
Lvyuan pleated filter manufacturers replacement for diagnostics 3
Lvyuan pleated filter manufacturers replacement for diagnostics 4
Lvyuan pleated filter manufacturers replacement for diagnostics 5
Lvyuan pleated filter manufacturers replacement for diagnostics 6
Lvyuan pleated filter manufacturers replacement for diagnostics 7
Lvyuan pleated filter manufacturers replacement for diagnostics 8
Lvyuan pleated filter manufacturers replacement for diagnostics 9
Lvyuan pleated filter manufacturers replacement for diagnostics 10

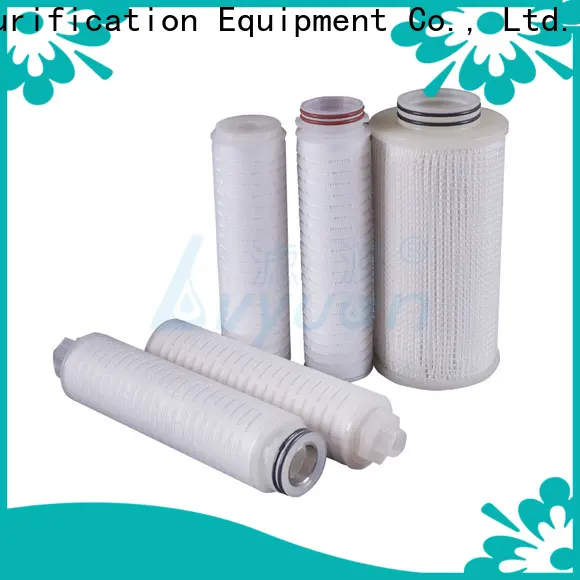

Lvyuan pleated filter manufacturers replacement for diagnostics

Start Port:
Guangzhou
Production Capacity:
400 units/Month
Place of Origin:
Guangdong, China
Payment:
T/T, Western Union, MoneyGram, Alibaba Trade Assurance, paypal
MOQ:
10pcs
Model:
LY-PL-PVDF
Delivery Time:
Within 7 working days
Certification:
SGS, ISO 9001
Brand:
OEM/Lvyuan
Inquiry

Lvyuan pleated filter manufacturers replacement for diagnostics 11
The PVDF pleated filter cartridge is constructed of imported natural hydrophobic polyvinylenedifluoride(PVDF) membrane media and non-woven support materials. Adapters are thermally welded with media without using an glue, no any pollution. It is optimized for the clarification, prefiltration and sterile filtration of the liquids.High filtration micron, high flow rate, better hydrophobicity, sterilization at high temperature as well as chemical resistance. It is widely used in gas or liquid pre-filtration and widely used in final filtration.


  Product Feature

  • ◪   Universal chemical compatibility, especially for good oxidation resistance.

  • ◪   Compatible with a wide range of solvents, acids and chemicals.

  • ◪   Withstand high temperature stem sterilization or oxidizer sterilization.

  • ◪   Better hydrophobicity, 100% bacterial retention and effective filtration of particles in gas filtration.

  • ◪   No adhesives and droppings, clean and stable, suitable for pharmaceutical industry.


Product Parameter



Product Name0.45 micron PVDF pleated membrane filter cartridge 10 inch (LY-PL-PVDF)
Filter mediaPVDF membrane
SupportPP/Polypropylene
Core/End capPP/Polypropylene
Seal materialSilicone/EPDM/VITON/PTFE/NBR/TEFLON
Outer diameter2.7”(69mm)
Length9.75”, 10”, 20”, 30”, 40”, Customized
End cap215/222/226/FIN/DOE/SS
Filtration area≥0.72m²
Max.operating temperature80℃, 0.173 Mpa
Micron rating(μm)0.2, 0.45



Product Details



Lvyuan pleated filter manufacturers replacement for diagnostics 12

part.1
100% filter cartridges were integrity tested assure the safe of filtration.
Lvyuan pleated filter manufacturers replacement for diagnostics 13

part.2
PVDF membrane Microporous Folding water Filter is made of the pleated support layer consisting of imported polyvinylenedifluoride.
Lvyuan pleated filter manufacturers replacement for diagnostics 14

part.3
Hydrophilic PVDF Membrane filter for liquids sterile filtration, absolute rating ≥99.99%.
Lvyuan pleated filter manufacturers replacement for diagnostics 15

part.4
High throughput flow rate with minimal differential pressure.



Product Applications



Lvyuan pleated filter manufacturers replacement for diagnostics 16

Serum, tissue culture media and media additives


Lvyuan pleated filter manufacturers replacement for diagnostics 17
Diagnostics
Lvyuan pleated filter manufacturers replacement for diagnostics 18
 Filtration of wine
Lvyuan pleated filter manufacturers replacement for diagnostics 19
Sterile filtration for organic solvents.
Lvyuan pleated filter manufacturers replacement for diagnostics 20
Final sterile filtration of medicine liquid
Lvyuan pleated filter manufacturers replacement for diagnostics 21
Filtration of biological

Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
