Lvyuan pleated filter manufacturers replacement for organic solvents
1. The LCD screen of Lvyuan 20 micron pleated water filter adopts touch-based technology, wchich is specially developed by our dedicated R&D team. The inner support layer is closely connected to the filter material, making it of strong impact resistance
2. People have no worry that it generates radiation that is harmful to health. Using this product will not have an adverse influence. The graded gradient design helps it to avoid rapid clogging
3. The product is safe to use. It is designed with regulations or safety mechanisms in the operation so that people and equipment are not harmed. It is designed with graded pores to help trap contaminants throughout the entire cross section for improved efficiency

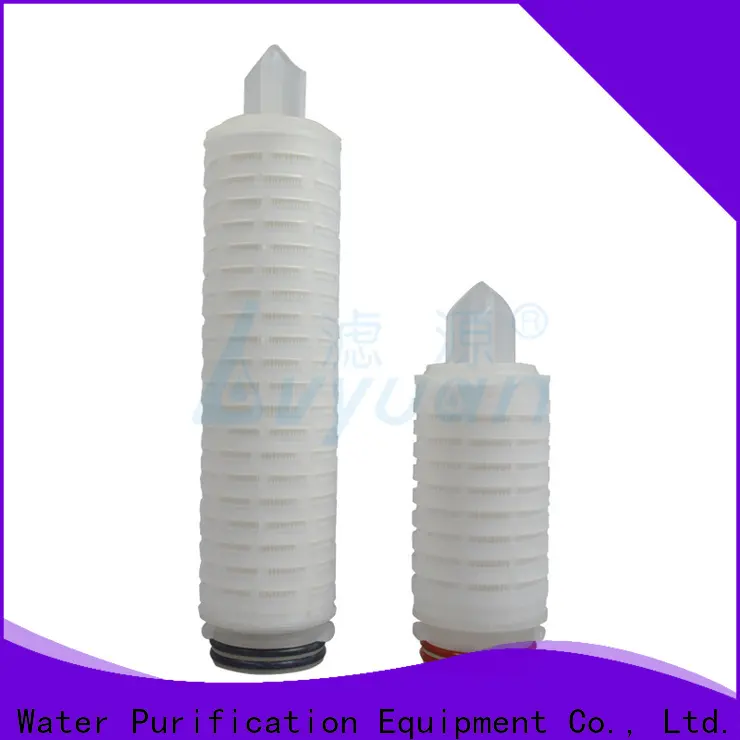

PP pleated filter cartridge deliver high efficiency and consistent filtration of fluids in a wide range of critical applications.
They are constructed of pleated membrane filter media that provides removal of particles from 0.1 to 60um, the pore size is not affected by the vibration of feeding pressure, due to its unique low differential pressure, high flow volume, excellent filtration microns.
The high surface area ensures long service life and low initial pressure drops. All cartridges hardware components are made from high purity polypropylene materials for use in critical process application. All the Cartridges are manufactured and assembled in a clean room environment to minimized the possibility of contamination.
This type of cartridges are available in a wide range of configurations to fit most commercially available filter housings.
Product Feature
◪ Excellent chemical compatibility. Suitable for filtering organic solvents, acid bases.
◪ The multi layers PP membrane structure enables a graded filtration pore sizes and increases the dirt-holding capacity of the PP pleated water cartridge filters.
◪ Large flow volume, low differential pressure and long service life.
◪ Hydrophilic membrane with high flow.
◪ Pleated design increased the filtration area for deep filtration.
◪ Application of thermal-bonding technique, strong and no any pollution.
◪ Full rage of removal microns ratings.
◪ Graded pore density for high dirt holding capacity.
◪ Common use in clean and sterilize with cabinet & steam with high pressure.
Product Parameter
| Filter media | PP/Polypropylene |
| Support | PP/Polypropylene |
| Core/End cap | PP/Polypropylene |
| Seal material | Silicone/EPDM/NBR/Viton/Teflon |
| Outer diameter | 2.7'' , customized |
| Length | 9.75'', 10'', 20'', 30'', 40'' customized |
| End cap | DOE, 215, 222, 226, FIN, FLAT, Stainless steel, or customized. |
| Filtration area | 0.4-0.7m² (10'') |
| Max.operating temperature | 88℃, 0.28Mpa. 60℃, 0.42Mpa. |
| Micron rating(μm) | 0.1, 0.2, 0.45, 0.65, 1, 2, 3, 5, 10, 20, 25, 30, 50, 60 |
Product Details
Product Applications
Reverse osmosis water system prefiltration
