Hydrophobic PTFE series pleated filter cartridge is constructed of hydrophobic PTFE membrane which has excellent chemical compatibility and corrosion resistance. This filter cartridge is suitable for the filtration to liquid and gas with strongly aggressive and oxidative.
Hydrophilic PTFE series pleated filter cartridge is contructed of hydrophilic PTFE membrane which has excellent chemical compatibility and corrosion resistance. The membrane is hydrophilic which can filter liquid directly without pre-wetting to save the operation time.
Lvyuan Filter-Industrial Water Filter Cartridge & Housing Manufacturer Since 2009.
Lvyuan pleated filter manufacturers supplier for food and beverage1
Start Port:
Guangzhou
Production Capacity:
10000 units/Month
Place of Origin:
Guangdong, China
Payment:
T/T, Alibaba Trade Assurance
Model:
LY-HFPL
Delivery Time:
Within 7 working days
Certification:
ISO 9001
Brand:
OEM/Lvyuan
Material
pp
Availability
OEM/ODM
Company Advantages
1. The specific size or shape of Lvyuan pleated filter manufacturers meets the requirements in the rubber seal industry. It is completed through a 3D design program. The inner support layer is closely connected to the filter material, making it of strong impact resistance
2. The product, highly recommended by users, has great market potential. It is designed with graded pores to help trap contaminants throughout the entire cross section for improved efficiency
3. The product stands out for its fatigue resistance. It can withstand a given number of cycles without breaking under high stresses. Its filter medium is customizable according to the different water quality in the application
Company Features
1. As one of the leading pleated type filter manufacturers in the domestic market, Guangzhou Lvyuan Water Purification Equipment Co., Ltd. is a company with a wealth of R&D and manufacturing experience.
2. We have a team of customer service and logistics team. They are dedicated to high standard services and work closely to ensure our products are delivered on schedule.
3. Guangzhou Lvyuan Water Purification Equipment Co., Ltd. is committed to becoming a comprehensive pleated filter manufacturers provider with global influence. Contact us!
1. The specific size or shape of Lvyuan pleated filter manufacturers meets the requirements in the rubber seal industry. It is completed through a 3D design program. The inner support layer is closely connected to the filter material, making it of strong impact resistance
2. The product, highly recommended by users, has great market potential. It is designed with graded pores to help trap contaminants throughout the entire cross section for improved efficiency
3. The product stands out for its fatigue resistance. It can withstand a given number of cycles without breaking under high stresses. Its filter medium is customizable according to the different water quality in the application

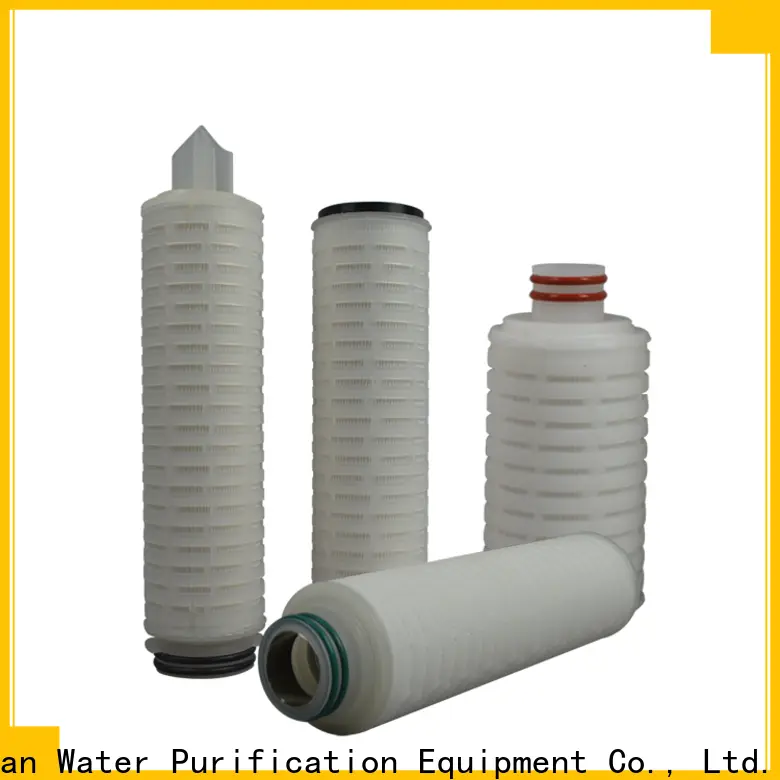

Hydrophobic 0.2 micron PTFE membrane pleated cartridge Air vent filter with 215 226 adaptor
Specification
Filter Media Option | PP | PES | PTFE | Nylon 6/66 | PVDF |
Length | 2.5'', 5, 10, 20, 30, 40 inch | 2.5'', 5, 10, 20, 30, 40 inch | 2.5'', 5, 10, 20, 30, 40 inch | 2.5'', 5, 10, 20, 30, 40 inch | 2.5'', 5, 10, 20, 30, 40 inch |
Micron Rate | 0.1, 0.2, 0.45, 0.65, 0.8, 1, 2, 3, 5, 10, 20, 25, 30, 50, 60 micron | 0.1, 0.2, 0.45, 0.65 micron | 0.2, 0.45 micron | 0.2, 0.45, 0.65, 1 micron | 0.2, 0.45 micron |
End Cap | DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat | DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat | DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat | DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat | DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat |
Inner Diameter | 28mm | 28mm | 28mm | 28mm | 28mm |
Outer Diameter | 69mm (can be customized) | 69mm (can be customized) | 69mm (can be customized) | 69mm (can be customized) | 69mm (can be customized) |
Gasket/O ring material | Silicon/EPDM/NBR/Viton/Teflon | Silicon/EPDM/NBR/Viton/Teflon | Silicon/EPDM/NBR/Viton/Teflon | Silicon/EPDM/NBR/Viton/Teflon | Silicon/EPDM/NBR/Viton/Teflon |
Effective filtration area | 0.4-0.7m² | ≥5m² | ≥0.72m² | ≥0.6m² | ≥0.72m² |
Max.working pressure difference | 0.42Mpa at 25ºC | 0.42Mpa at 25ºC | 0.42Mpa at 25ºC | 0.42Mpa at 25ºC | 0.42Mpa at 25ºC |
Max.back pressure | 0.28Mpa at 60ºC | 0.21Mpa at 25ºC | 0.35Mpa at 60ºC | 0.35Mpa at 25ºC | 0.21Mpa at 25ºC |
Max. working temperature | 88ºC at 0.28Mpa, 60ºC at 0.42Mpa | 140ºC at 0.28Mpa | 142ºC at 0.276Mpa | 49ºC at 0.21Mpa | 80ºC at 0.173Mpa |
Sterilizing temperature | 121℃, 30mins | 121℃, 30mins | 121℃, 30mins | 121℃, 30mins | 121℃, 30mins |
Application
1. Electronic industry: RO reverse osmosis water system prefiltration, deionized water system prefiltration.
2. Food industry: filtration of beverage, beer and mineral water.
3. Chemical industry: filtration of organic solvent and ink.
4. Pharmaceutical industry: filtration of pharmaceuticals, biologicals, serum products, compressed air and gas.
5. Others: filtration of plating solution, process fluids, photoresist and magnetic media
Company Features
1. As one of the leading pleated type filter manufacturers in the domestic market, Guangzhou Lvyuan Water Purification Equipment Co., Ltd. is a company with a wealth of R&D and manufacturing experience.
2. We have a team of customer service and logistics team. They are dedicated to high standard services and work closely to ensure our products are delivered on schedule.
3. Guangzhou Lvyuan Water Purification Equipment Co., Ltd. is committed to becoming a comprehensive pleated filter manufacturers provider with global influence. Contact us!
