Lvyuan Filter-Industrial Water Filter Cartridge & Housing Manufacturer Since 2009.


Lvyuan pleated filter manufacturers supplier for food and beverage 1
Lvyuan pleated filter manufacturers supplier for food and beverage 2
Lvyuan pleated filter manufacturers supplier for food and beverage 3
Lvyuan pleated filter manufacturers supplier for food and beverage 4
Lvyuan pleated filter manufacturers supplier for food and beverage 5
Lvyuan pleated filter manufacturers supplier for food and beverage 6
Lvyuan pleated filter manufacturers supplier for food and beverage 7
Lvyuan pleated filter manufacturers supplier for food and beverage 8
Lvyuan pleated filter manufacturers supplier for food and beverage 9
Lvyuan pleated filter manufacturers supplier for food and beverage 10
Lvyuan pleated filter manufacturers supplier for food and beverage 1
Lvyuan pleated filter manufacturers supplier for food and beverage 2
Lvyuan pleated filter manufacturers supplier for food and beverage 3
Lvyuan pleated filter manufacturers supplier for food and beverage 4
Lvyuan pleated filter manufacturers supplier for food and beverage 5
Lvyuan pleated filter manufacturers supplier for food and beverage 6
Lvyuan pleated filter manufacturers supplier for food and beverage 7
Lvyuan pleated filter manufacturers supplier for food and beverage 8
Lvyuan pleated filter manufacturers supplier for food and beverage 9
Lvyuan pleated filter manufacturers supplier for food and beverage 10

Lvyuan pleated filter manufacturers supplier for food and beverage

Start Port:
Guangzhou
Production Capacity:
400 units/Month
Place of Origin:
Guangdong, China
Payment:
T/T, Western Union, MoneyGram, Alibaba Trade Assurance, paypal
MOQ:
10pcs
Model:
LY-PL-PVDF
Delivery Time:
Within 7 working days
Certification:
SGS, ISO 9001
Brand:
OEM/Lvyuan
Inquiry
Company Advantages
1. Lvyuan pleated filter manufacturers is fabricated using premium quality raw material and latest technology. The self-supporting fiber matrix enables a coreless design that is both economical and strong
2. Drinking pure water treated by this product facilitates the balance of aqueous electrolytes inside the body, speeds up the metabolism, and excludes the harmful substances. It has a large effective filter area
3. The product is energy saving. The design adopts the latest energy conservation technologies which significantly reduces energy consumption. With a large number of tapered fixing holes inside, it has a high dirt holding capacity
4. This product has functional safety. Possible failures or faults which could lead to a hazard are analyzed in detail in the manufacture, hence they are eliminated or reduced in use. Its unique density gradient construction maximizes efficiency and minimizes pressure drop
Lvyuan pleated filter manufacturers supplier for food and beverage 11

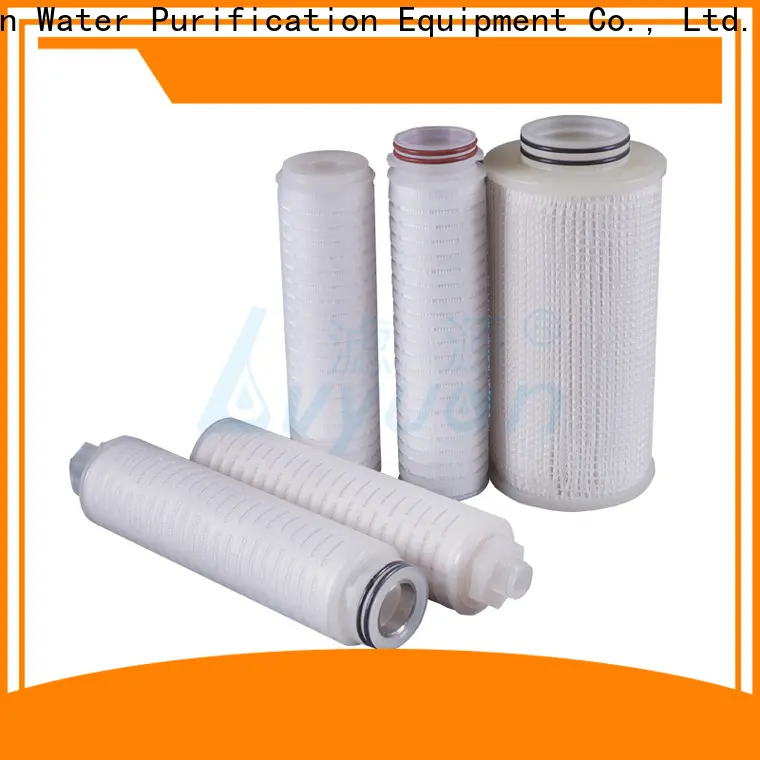

The PVDF pleated filter cartridge is constructed of imported natural hydrophobic polyvinylenedifluoride(PVDF) membrane media and non-woven support materials. Adapters are thermally welded with media without using an glue, no any pollution. It is optimized for the clarification, prefiltration and sterile filtration of the liquids.High filtration micron, high flow rate, better hydrophobicity, sterilization at high temperature as well as chemical resistance. It is widely used in gas or liquid pre-filtration and widely used in final filtration.


  Product Feature

  • ◪   Universal chemical compatibility, especially for good oxidation resistance.

  • ◪   Compatible with a wide range of solvents, acids and chemicals.

  • ◪   Withstand high temperature stem sterilization or oxidizer sterilization.

  • ◪   Better hydrophobicity, 100% bacterial retention and effective filtration of particles in gas filtration.

  • ◪   No adhesives and droppings, clean and stable, suitable for pharmaceutical industry.


Product Parameter



Product Name0.45 micron PVDF pleated membrane filter cartridge 10 inch (LY-PL-PVDF)
Filter mediaPVDF membrane
SupportPP/Polypropylene
Core/End capPP/Polypropylene
Seal materialSilicone/EPDM/VITON/PTFE/NBR/TEFLON
Outer diameter2.7”(69mm)
Length9.75”, 10”, 20”, 30”, 40”, Customized
End cap215/222/226/FIN/DOE/SS
Filtration area≥0.72m²
Max.operating temperature80℃, 0.173 Mpa
Micron rating(μm)0.2, 0.45



Product Details



Lvyuan pleated filter manufacturers supplier for food and beverage 12

part.1
100% filter cartridges were integrity tested assure the safe of filtration.
Lvyuan pleated filter manufacturers supplier for food and beverage 13

part.2
PVDF membrane Microporous Folding water Filter is made of the pleated support layer consisting of imported polyvinylenedifluoride.
Lvyuan pleated filter manufacturers supplier for food and beverage 14

part.3
Hydrophilic PVDF Membrane filter for liquids sterile filtration, absolute rating ≥99.99%.
Lvyuan pleated filter manufacturers supplier for food and beverage 15

part.4
High throughput flow rate with minimal differential pressure.



Product Applications



Lvyuan pleated filter manufacturers supplier for food and beverage 16

Serum, tissue culture media and media additives


Lvyuan pleated filter manufacturers supplier for food and beverage 17
Diagnostics
Lvyuan pleated filter manufacturers supplier for food and beverage 18
 Filtration of wine
Lvyuan pleated filter manufacturers supplier for food and beverage 19
Sterile filtration for organic solvents.
Lvyuan pleated filter manufacturers supplier for food and beverage 20
Final sterile filtration of medicine liquid
Lvyuan pleated filter manufacturers supplier for food and beverage 21
Filtration of biological

Company Features
1. Guangzhou Lvyuan Water Purification Equipment Co., Ltd. has produced pleated filter manufacturers in an efficient and professional manner for years. We have a professional and dedicated design and engineering teams. They add value to the product development process by being involved in every stage of the development cycle.
2. We have a professional QC team. All personnel understand the requirements of the Quality Policy and abide by the requirements of the Quality Management System as defined in the Quality Procedures Manual.
3. Our factory is located in a place that is near to the railroad, highway, and ports. This enables us to shorten the shipment distance and cut the load and unload times during transport links, which eventually helps cut transportation costs. We take actions to deliver environmental, social and commercial benefits. We create joint sustainability initiatives by identifying and building partnerships with our customers, suppliers and the communities in which we operate.
Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
