Hydrophobic PTFE series pleated filter cartridge is constructed of hydrophobic PTFE membrane which has excellent chemical compatibility and corrosion resistance. This filter cartridge is suitable for the filtration to liquid and gas with strongly aggressive and oxidative.
Hydrophilic PTFE series pleated filter cartridge is contructed of hydrophilic PTFE membrane which has excellent chemical compatibility and corrosion resistance. The membrane is hydrophilic which can filter liquid directly without pre-wetting to save the operation time.
Lvyuan Filter-Industrial Water Filter Cartridge & Housing Manufacturer Since 2009.

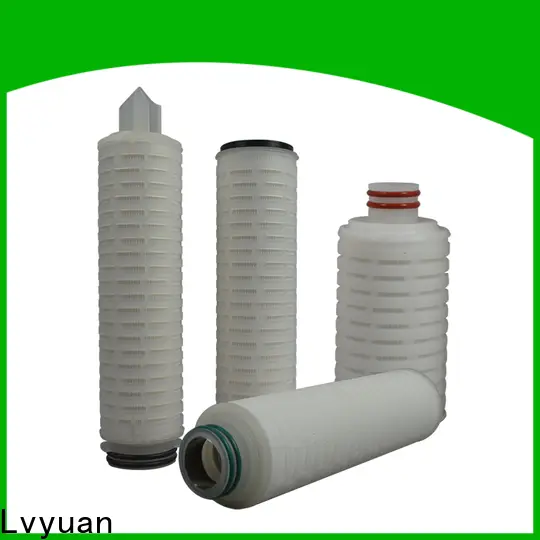

Lvyuan pleated water filters manufacturer for organic solvents1
Start Port:
Guangzhou
Production Capacity:
10000 units/Month
Place of Origin:
Guangdong, China
Payment:
T/T, Alibaba Trade Assurance
Model:
LY-HFPL
Delivery Time:
Within 7 working days
Certification:
ISO 9001
Brand:
OEM/Lvyuan
Material
pp
Availability
OEM/ODM
Company Advantages
1. Lvyuan pleated water filters is known for combining aesthetic functionality and innovation. The inner support layer is closely connected to the filter material, making it of strong impact resistance
2. The chief advantage in the use of this product is the shorter period of production because of its quick-yielding power. The self-supporting fiber matrix enables a coreless design that is both economical and strong
3. This product has good performance and is durable. It contains no binders, agents, solvents, antistatic materials or wetting agents
4. Strict quality management system to ensure that products maintain an ideal level of excellence. The graded gradient design helps it to avoid rapid clogging
Company Features
1. We have an efficient sales team. They ensure close collaboration from start to delivery (and beyond) to ensure that the quality and timeliness of the project stay on target.
2. We are passionate about intelligent ideas to make the environment more sustainable. We continuously monitor and drive compliance of our social and environmental requirements throughout our supply chain.
1. Lvyuan pleated water filters is known for combining aesthetic functionality and innovation. The inner support layer is closely connected to the filter material, making it of strong impact resistance
2. The chief advantage in the use of this product is the shorter period of production because of its quick-yielding power. The self-supporting fiber matrix enables a coreless design that is both economical and strong
3. This product has good performance and is durable. It contains no binders, agents, solvents, antistatic materials or wetting agents
4. Strict quality management system to ensure that products maintain an ideal level of excellence. The graded gradient design helps it to avoid rapid clogging
Hydrophobic 0.2 micron PTFE membrane pleated cartridge Air vent filter with 215 226 adaptor
Specification
Filter Media Option | PP | PES | PTFE | Nylon 6/66 | PVDF |
Length | 2.5'', 5, 10, 20, 30, 40 inch | 2.5'', 5, 10, 20, 30, 40 inch | 2.5'', 5, 10, 20, 30, 40 inch | 2.5'', 5, 10, 20, 30, 40 inch | 2.5'', 5, 10, 20, 30, 40 inch |
Micron Rate | 0.1, 0.2, 0.45, 0.65, 0.8, 1, 2, 3, 5, 10, 20, 25, 30, 50, 60 micron | 0.1, 0.2, 0.45, 0.65 micron | 0.2, 0.45 micron | 0.2, 0.45, 0.65, 1 micron | 0.2, 0.45 micron |
End Cap | DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat | DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat | DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat | DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat | DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat |
Inner Diameter | 28mm | 28mm | 28mm | 28mm | 28mm |
Outer Diameter | 69mm (can be customized) | 69mm (can be customized) | 69mm (can be customized) | 69mm (can be customized) | 69mm (can be customized) |
Gasket/O ring material | Silicon/EPDM/NBR/Viton/Teflon | Silicon/EPDM/NBR/Viton/Teflon | Silicon/EPDM/NBR/Viton/Teflon | Silicon/EPDM/NBR/Viton/Teflon | Silicon/EPDM/NBR/Viton/Teflon |
Effective filtration area | 0.4-0.7m² | ≥5m² | ≥0.72m² | ≥0.6m² | ≥0.72m² |
Max.working pressure difference | 0.42Mpa at 25ºC | 0.42Mpa at 25ºC | 0.42Mpa at 25ºC | 0.42Mpa at 25ºC | 0.42Mpa at 25ºC |
Max.back pressure | 0.28Mpa at 60ºC | 0.21Mpa at 25ºC | 0.35Mpa at 60ºC | 0.35Mpa at 25ºC | 0.21Mpa at 25ºC |
Max. working temperature | 88ºC at 0.28Mpa, 60ºC at 0.42Mpa | 140ºC at 0.28Mpa | 142ºC at 0.276Mpa | 49ºC at 0.21Mpa | 80ºC at 0.173Mpa |
Sterilizing temperature | 121℃, 30mins | 121℃, 30mins | 121℃, 30mins | 121℃, 30mins | 121℃, 30mins |
Application
1. Electronic industry: RO reverse osmosis water system prefiltration, deionized water system prefiltration.
2. Food industry: filtration of beverage, beer and mineral water.
3. Chemical industry: filtration of organic solvent and ink.
4. Pharmaceutical industry: filtration of pharmaceuticals, biologicals, serum products, compressed air and gas.
5. Others: filtration of plating solution, process fluids, photoresist and magnetic media
Company Features
1. We have an efficient sales team. They ensure close collaboration from start to delivery (and beyond) to ensure that the quality and timeliness of the project stay on target.
2. We are passionate about intelligent ideas to make the environment more sustainable. We continuously monitor and drive compliance of our social and environmental requirements throughout our supply chain.
