Lvyuan Filter-Industrial Water Filter Cartridge & Housing Manufacturer Since 2009.
Lvyuan professional sintered metal filter manufacturer for sea water desalination
1. The design of Lvyuan sintered stainless steel filter elements uses the principle of humanization, which means it considers the mindset and habits of how shoppers walk while buying items.
2. sintered metal filter produced by Guangzhou Lvyuan Water Purification Equipment Co., Ltd. has been paid great attention because of its sintered stainless steel filter elements .
3. This product is suitable for each domain, has the broad market prospect.
Stainless steel filter element can get a large filtration area and with high flow rate. It extends cartridge life and have more dirt holding capacity.
Moreover, The stainless steel filter cartridges are designed for cleanable and reusable applications thereby eliminating frequent cartridge change out, so it can significantly reduce disposal cost.
Non-standard Stainless steel filter cartridges can be easily customized with various dimension, end cap, outer cage pattern etc. So as long as customer give us the picture and drawing of the ss filter cartridge, we can custom-make the exact ss filter element to you.

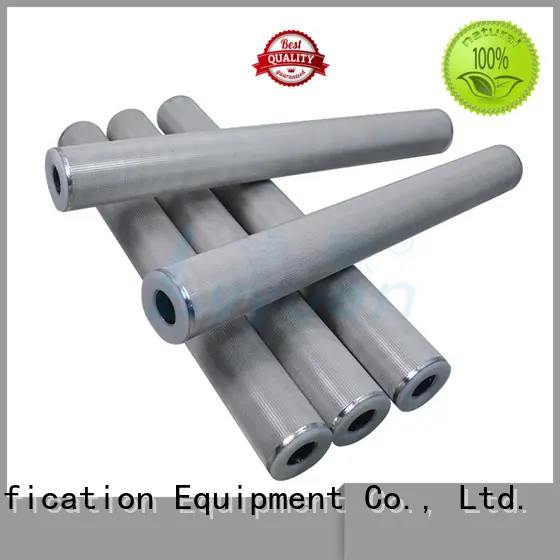

◆◆ Sintered Stainless Steel Filter Cartridges are the perfect choice for high temperature, high differential pressure and high viscosity applications. Manufactured with 304, 316 or 316L material, there’re mainly 3 types of stainless steel cartridge designs are widely used in the industry.
1. Plain cylindrical design SS wiremesh filter cartridge.
2. Pleated configuration design SS folded mesh filter cartridge.
3. Sintered SS316 metal powder type SS filter cartridge.
Product Feature
◪ Excellent mechanical strength.
◪ High dirt holding capacity.
◪ High pressure resistance, withstand capacity and low pressure drop.
◪ Temperature ratings from -73°C to 480°C.
◪ Various micron ratings available from 2um to 1000um nominal.
◪ Back flushing and cleanable for long service life.
◪ Strong corrosion resistant for wide chemical compatibility.
◪ High permeability, no media migration.
◪ Customized dimension are welcome.
Product Parameter
| Fiter Cartridge dimensions | |
| Length | 5’’ (125mm), 10’’ (250mm), 20’’ (500mm), 30’’ (750mm), 40’’ (1000mm) |
| Diameter | Ø25, 30, 50, 60, 65, 70mm |
| Other dimensions | Customized by customer’s request. |
| Material of constructions | |
| Filter media | SUS304, 316， 316L stainless steel |
| Connector type | Flat, Insert type, Thread type, Fin |
| End caps | DOE, SOE, 215, 222, 226, M20, M30, M42, 1’’ NPT/BSP or as request. |
| Outside protection net | Optional |
| Sealing material | Silicone, NBR, EPDM, Buna, Teflon, etc |
| Performance | |
| Removal rate | 1, 3, 5, 10,20, 30, 40, 50, 100um, etc |
| Effective Surface area | 0.65 sqm per 10" cartridge element |
| Operation Temperature | ≦ 480℃ |
| Cleaning method | back flushing, ultrasonic or other non-abrasive cleaning |
| Maximum Operating Pressure differential | 4.0 bar |
Product Details
Product Applications
Company Features
1. As a professional developer and manufacturer, Guangzhou Lvyuan Water Purification Equipment Co., Ltd. possesses abundant knowledge and experience in producing sintered stainless steel filter elements .
2. With a very professional team, Guangzhou Lvyuan Water Purification Equipment Co., Ltd. has achieved a strong annual production capacity.
3. Guangzhou Lvyuan Water Purification Equipment Co., Ltd. endeavors to become one of the leading sintered metal filter manufacturer. Ask online! Guangzhou Lvyuan Water Purification Equipment Co., Ltd. will always provide you with high quality and perfect customer service. Ask online! Guangzhou Lvyuan Water Purification Equipment Co., Ltd. aims to be your global partner. Ask online!
