Lvyuan Filter-Industrial Water Filter Cartridge & Housing Manufacturer Since 2009.
Lvyuan professional sintered powder ss filter supplier for industry
Start Port:
Guangzhou
Production Capacity:
5000 units/Month
Place of Origin:
Guangdong, China
Payment:
T/T, Alibaba Trade Assurance, paypal
MOQ:
10pcs
Delivery Time:
In 7 to 15 working days
Certification:
SGS, ISO 9001
Brand:
LVYUAN
Company Advantages
1. The production of Lvyuan sintered powder ss filter covers a few steps. The rough concentrate is deeply processed at first to extract some useful ingredients, then the concentrate is further ground for higher purity. It is available in a wide selection of micron ratings from 1 to 100 μm
2. Lvyuan has professional team to help to strictly test the quality of sintered powder ss filter . It is suitable to use with aqueous and organic solvent samples due to its broad chemical compatibility
3. The product is free of toxic chemical substances. At the stage of materials or ingredient extraction and testing, the raw materials or components are totally tested to be harmless. It can effectively control filtration precision
![Lvyuan professional sintered powder ss filter supplier for industry 11]()
![Lvyuan professional sintered powder ss filter supplier for industry 12]()
![Lvyuan professional sintered powder ss filter supplier for industry 13]()
![Lvyuan professional sintered powder ss filter supplier for industry 14]()
![Lvyuan professional sintered powder ss filter supplier for industry 15]()
![Lvyuan professional sintered powder ss filter supplier for industry 16]()
![Lvyuan professional sintered powder ss filter supplier for industry 17]()
![Lvyuan professional sintered powder ss filter supplier for industry 18]()
![Lvyuan professional sintered powder ss filter supplier for industry 19]()
![Lvyuan professional sintered powder ss filter supplier for industry 20]()
Company Features
1. Our factory has faultless production facilities and precise testing systems. This enables us to provide a series of probable products ranges or product services such as quality testing.
2. We never neglect the importance of service and quality for sintered powder ss filter . Get quote!
1. The production of Lvyuan sintered powder ss filter covers a few steps. The rough concentrate is deeply processed at first to extract some useful ingredients, then the concentrate is further ground for higher purity. It is available in a wide selection of micron ratings from 1 to 100 μm
2. Lvyuan has professional team to help to strictly test the quality of sintered powder ss filter . It is suitable to use with aqueous and organic solvent samples due to its broad chemical compatibility
3. The product is free of toxic chemical substances. At the stage of materials or ingredient extraction and testing, the raw materials or components are totally tested to be harmless. It can effectively control filtration precision

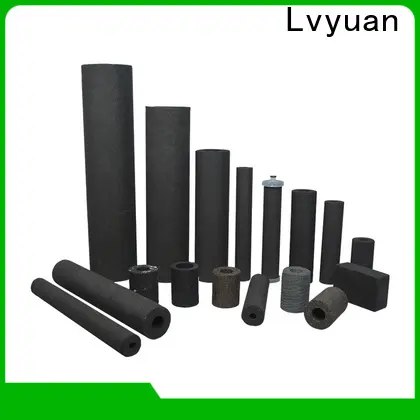

Lvyuan sintered carbon block filter cartridge is made of high quality and high iodine value activated carbon materials, such as coconut shell, coal. Sintering moulding type CTO carbon block filters have strong adsorption ability and good rigid structure. Sintered carbon block filter cartridge has high filtration efficiency. It can remove chlorine, bad taste and odor, chloramine, sediment, organic chemical and heavy metal etc. What’s more, sintered carbon block filters are more stable and more reliable, with longer service life than normal extruded type CTO carbon water filter catridges.
Product Feature
◪ Large filtration area, strong absorption capacity, high flow rate.
◪ High dirt holding capacity, low drop out, high filtration efficiency.
◪ Fits to all standard filter housings or sport bottles.
◪ High iodine value activated carbon materials
◪ Effectively remove bad smells, colors, chlorinated compounds, VOCS and THMS;
◪ Long service life
Product Parameter
| Fiter Cartridge dimensions | |
| Outer diameter | 14, 16, 19, 25, 28, 30, 35, 38, 40, 45, 46, 50, 53, 55, 60, 63, 64, 67, 70, 76, 90, 96.5, 103, 105, 121mm |
| Inner diameter | 6, 8, 10, 12, 14, 16, 18, 20, 22, 25, 28, 30, 32, 35, 38, 40, 45, 50mm |
| Length | 5’’ (125mm), 10’’ (250mm), 20’’ (500mm), 30’’ (750mm), 40’’ (1000mm) |
| Other dimensions | Customized by customer’s request. |
| Material of constructions | |
| Filter media | Coconut shell carbon, coal carbon |
| Enc caps | Polypropylene |
| Netting | Polypropylene |
| Gasket/oring material | Silicone, EPDM, NBR, Viton |
| Performance | |
| Removal rate | 5, 10, 25 um |
| Maximum Operating Temperature | ≦ 80℃ |
| Maximum Operating Pressure | 10 bar |
| Maximum differential pressure | 7 bar at 25℃ |
Product Details
part.1
Various dimensions. Dimension can be customized as request.
part.2
Combination of sintered Activated carbon with PP melt blown filter media (option).
part.3
Innovative technology upgrade sintered carbon filter functions with anti-scale, heavy metal removal, anti-bacterial, fluorine and ammonia nitrogen removal, etc.
Product Applications
Water treatment
Air and gas purification
Pharmaceuticals and medical
Food and beverage processing
Automotive
Plating Industry
Company Features
1. Our factory has faultless production facilities and precise testing systems. This enables us to provide a series of probable products ranges or product services such as quality testing.
2. We never neglect the importance of service and quality for sintered powder ss filter . Get quote!
