Lvyuan professional stainless filter housing with fin end cap for oil fuel
1. filter housings is one of the elements that Guangzhou Lvyuan Water Purification Equipment Co., Ltd. bears in mind while designing. Being thermally welded, its caps are not prone to crack or fall off
2. With the use of this product, the product can replace workers to finish harmful or dangerous work tasks, allowing them to enjoy a safe working environment. The filter media is thermally bonded to prevent fiber release while providing consistent flow rates
3. The product has passed the ISO quality certification. It has a large effective filter area

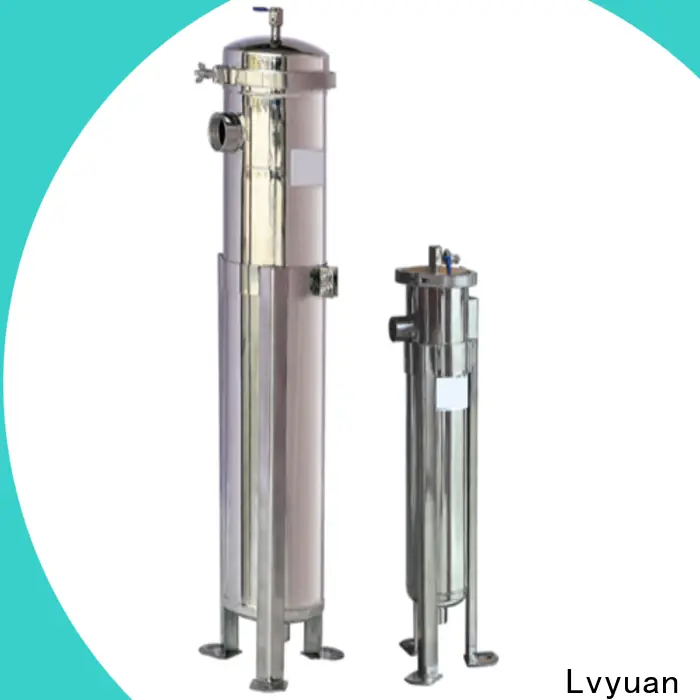

Trip Clamp ss304 ss316 food grade ss bag filter housing for liquid filtration
The ss bag filter housing is a pressure filter device, mainly composed of filter cylinder body, filter cylinder cover and quick opening mechanism, stainless steel filter bag reinforcement net and other main components. The filtrate is from the side entrance of the filter housing The tube flows into the filter bag, and the filter bag itself is installed in the reinforced mesh basket. The qualified filtrate can be obtained when the liquid penetrates the filter bag of the required fineness level, and the impurity particles are intercepted by the filter bag. This machine is very convenient to replace the filter bag, and the filter basically has no material consumption.
There are several types of bag filters housing: single-bag filters housing, multi-bag filters housing, rocker-arm bag filters housing, high-precision bag filters housing, etc. The filter accuracy ranges from 1-100 microns.
| NO. | A(mm) | B(mm) | C(mm) | D(mm) | F(mm) | In/Out |
|---|---|---|---|---|---|---|
| B1 | 500 | 380 | 700 | 200 | 170 | 1'' -4'' |
| B2 | 700 | 720 | 1050 | 200 | 170 | 1'' -4'' |
| B3 | 350 | 190 | 400 | 114 | 97 | 3/4'' -2'' |
| B4 | 500 | 340 | 540 | 114 | 97 | 3/4'' -2'' |
Product feature:
The side leakage rate of the filter bag is small, which effectively guarantees the filtering quality.
The bag filter can bear greater working pressure, with small pressure loss, low operating cost and obvious energy saving effect.
The filter accuracy of the filter bag has been continuously improved and has reached 0.5μm.
Company Features
1. Lvyuan brand takes the lead in the field of stainless filter housing .
2. Our excellent technician will always here to provide help or explanation for any problem happened to our stainless steel cartridge filter housing .
3. Guangzhou Lvyuan Water Purification Equipment Co., Ltd. will continue to create profits for customers. Get price!
