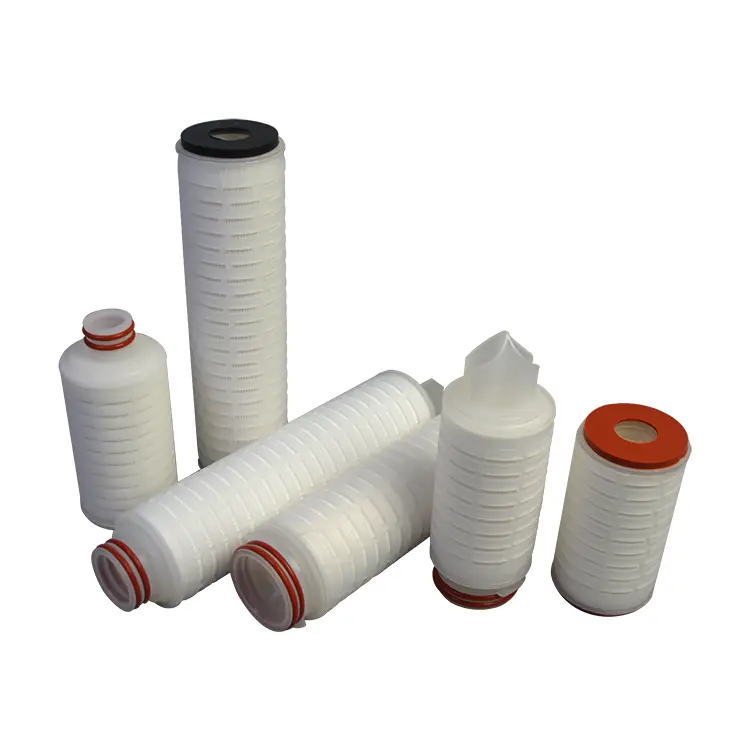

Hydrophobic PTFE series pleated filter cartridge is constructed of hydrophobic PTFE membrane which has excellent chemical compatibility and corrosion resistance. This filter cartridge is suitable for the filtration to liquid and gas with strongly aggressive and oxidative.
Hydrophilic PTFE series pleated filter cartridge is contructed of hydrophilic PTFE membrane which has excellent chemical compatibility and corrosion resistance. The membrane is hydrophilic which can filter liquid directly without pre-wetting to save the operation time.
Lvyuan Filter-Industrial Water Filter Cartridge & Housing Manufacturer Since 2009.
Lvyuan pvdf pleated filter cartridge suppliers supplier for industry
Start Port:
Guangzhou
Production Capacity:
10000 units/Month
Place of Origin:
Guangdong, China
Payment:
T/T, Alibaba Trade Assurance
Model:
LY-HFPL
Delivery Time:
Within 7 working days
Certification:
ISO 9001
Brand:
OEM/Lvyuan
Material
pp
Availability
OEM/ODM
Hydrophobic 0.2 micron PTFE membrane pleated cartridge Air vent filter with 215 226 adaptor
Specification
Filter Media Option | PP | PES | PTFE | Nylon 6/66 | PVDF |
Length | 2.5'', 5, 10, 20, 30, 40 inch | 2.5'', 5, 10, 20, 30, 40 inch | 2.5'', 5, 10, 20, 30, 40 inch | 2.5'', 5, 10, 20, 30, 40 inch | 2.5'', 5, 10, 20, 30, 40 inch |
Micron Rate | 0.1, 0.2, 0.45, 0.65, 0.8, 1, 2, 3, 5, 10, 20, 25, 30, 50, 60 micron | 0.1, 0.2, 0.45, 0.65 micron | 0.2, 0.45 micron | 0.2, 0.45, 0.65, 1 micron | 0.2, 0.45 micron |
End Cap | DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat | DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat | DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat | DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat | DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat |
Inner Diameter | 28mm | 28mm | 28mm | 28mm | 28mm |
Outer Diameter | 69mm (can be customized) | 69mm (can be customized) | 69mm (can be customized) | 69mm (can be customized) | 69mm (can be customized) |
Gasket/O ring material | Silicon/EPDM/NBR/Viton/Teflon | Silicon/EPDM/NBR/Viton/Teflon | Silicon/EPDM/NBR/Viton/Teflon | Silicon/EPDM/NBR/Viton/Teflon | Silicon/EPDM/NBR/Viton/Teflon |
Effective filtration area | 0.4-0.7m² | ≥5m² | ≥0.72m² | ≥0.6m² | ≥0.72m² |
Max.working pressure difference | 0.42Mpa at 25ºC | 0.42Mpa at 25ºC | 0.42Mpa at 25ºC | 0.42Mpa at 25ºC | 0.42Mpa at 25ºC |
Max.back pressure | 0.28Mpa at 60ºC | 0.21Mpa at 25ºC | 0.35Mpa at 60ºC | 0.35Mpa at 25ºC | 0.21Mpa at 25ºC |
Max. working temperature | 88ºC at 0.28Mpa, 60ºC at 0.42Mpa | 140ºC at 0.28Mpa | 142ºC at 0.276Mpa | 49ºC at 0.21Mpa | 80ºC at 0.173Mpa |
Sterilizing temperature | 121℃, 30mins | 121℃, 30mins | 121℃, 30mins | 121℃, 30mins | 121℃, 30mins |
Application
1. Electronic industry: RO reverse osmosis water system prefiltration, deionized water system prefiltration.
2. Food industry: filtration of beverage, beer and mineral water.
3. Chemical industry: filtration of organic solvent and ink.
4. Pharmaceutical industry: filtration of pharmaceuticals, biologicals, serum products, compressed air and gas.
5. Others: filtration of plating solution, process fluids, photoresist and magnetic media
