Lvyuan sintered metal filter manufacturer for industry1
1. Through the participation of technical staff, sintered metal filter has ranked top in its design. All its elements are made with FDA compliant material for food and beverage contact
2. Guangzhou Lvyuan Water Purification Equipment Co., Ltd. has strong growth, upgrade and optimization capabilities. It is available in a wide selection of micron ratings from 1 to 100 μm
3. The quality of the product is assured in every step of production. It has increased dirt holding capacity and longer life
◆◆ Lvyuan sintered porous platics filters can meet requirements of different customers. Custom molded Shapes are available.

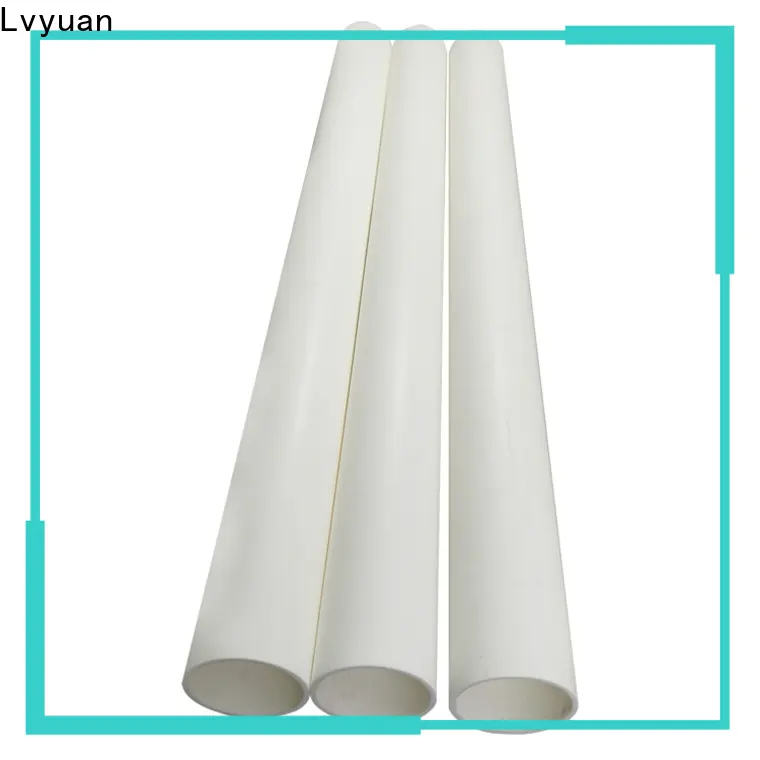

PE and HDPE Sintered filter cartridge：
Sintered Porous Polyethylene (PE) products are the most commonly used plastic filter element in the world. Porous PE plastics is strong, lightweight thermoplastic with strong chemical (acids and alkali) resistance and wide micron rates from 1 to 200um. There’re Ultra-high molecular weight Polyethylene (UHMWPE) and High-density Polyethylene (HDPE) available in tubes, sheets, rods and molded shapes available for different applications.
PTFE Sintered filter cartridge:
Micro Porous PTFE filter elements are produced by sintering pure PTFE (Polytetrafluoroethylene) granules, no other substances are used in the construction. These filter elements are usually offered when only 100% pure disposable PTFE can be used. The advantage of PTFE is a higher maximum temperature, up to 200℃, and somewhat better chemical resistance. These filter elements should be ultrasonically cleaned to give best results.
PVDF Sintered filter cartridge:
Sintered porous PVDF (Polyvinylidene fluoride) products are good choices when expose to harsh thermal, ultraviolet, ozone and chemical conditions. Porous PVDF prdoucts is extreme hard and with average pore size of 25 micron. It can work in temperature from -62 to 149℃.
PA/Nylon Sintered filter cartridge:
Nylon, trade name for polyamides (PA), is a semi-crystaline polymer that contains amine and carbonyl groups. There’re numerous versions. Nylon/PA has high strength and thermal resistance with a softening termperature of 190℃. Working temperature from -40℃ to 121℃, sintered PA/Nylon porous products have very high tensile strength, good abrasion and chemical resistance, and low coefficient of friction.
Product Feature
◪ High porosity (60%) to ensure a greater flow per unit area;
◪ Smooth outer surface, impurities are not easy adhesion, back washing easy and thorough;
◪ Anti-fouling ability: the small size of the filter so that impurities can’t be retained in the filter body;
◪ Resistance to strong acid, alkali corrosion, resistance to organic solvents;
◪ Excellent mechanical properties;
◪ No particle release.
◪ Product range and wide scope of application
Product Parameter
| Fiter Cartridge dimensions | |
| Regular size (mm) | 31x12x1000, 31x20x1000, 38x20x1000, 38x18x1000, 38x20x1200, 38x20x1300, 38x20x150, 38x20x400, 38x20x250, 38x20x200, 38x20x180, 38x20x150, 50x20x1000, 50x31x1000, 50x38x1000, 65x31x1000, 65x38x1000, 64x44x1000, 78x62x750mm, etc. |
| Other dimensions | Customized by customer’s request. |
| Material of constructions | |
| Filter media option | PE, HDPE, PTFE, PVDF, PA/Nylon etc |
| Connector type | Flat, Insert type, Thread type, Fin |
| End caps | PP, M36, M30, M25, M22, M14, M12, or as request. |
| Performance | |
| Removal rate | 0.3, 0.45, 1, 3, 5, 10,20, 30, 40, 50 μm |
| Maximum Operating Temperature | ≦ 82 ℃ |
| Maximum Operating Pressure | 6.0bar |
Product Details
Product Applications
Company Features
1. Lvyuan is an influential sintered metal filter supplier.
2. Our team of manufacturing members contributes to our business success. They utilize various processing technologies to manufacture products at the highest level and within the lead time.
3. In order to enhance our long-term competitiveness as a manufacturing company, we will continuously strive to simplify production activities and work harder to improve quality.
