Lvyuan sintered metal filter manufacturer for industry
1. The design of Lvyuan sintered metal filter involves several factors. These factors include part tolerances, size limitations, materials selection, mechanical analysis, function realization, etc. The inner support layer is closely connected to the filter material, making it of strong impact resistance
2. The product has gained a lot of praises from customers all over the world and has a great market application potential. It has increased dirt holding capacity and longer life
3. The product features strong compatibility. It doesn't just work alone. Other function can be added to work with this machine system. It will trap larger particles in the outer layers and capture smaller particles in the deep layer
Stainless steel filter element can get a large filtration area and with high flow rate. It extends cartridge life and have more dirt holding capacity.
Moreover, The stainless steel filter cartridges are designed for cleanable and reusable applications thereby eliminating frequent cartridge change out, so it can significantly reduce disposal cost.
Non-standard Stainless steel filter cartridges can be easily customized with various dimension, end cap, outer cage pattern etc. So as long as customer give us the picture and drawing of the ss filter cartridge, we can custom-make the exact ss filter element to you.

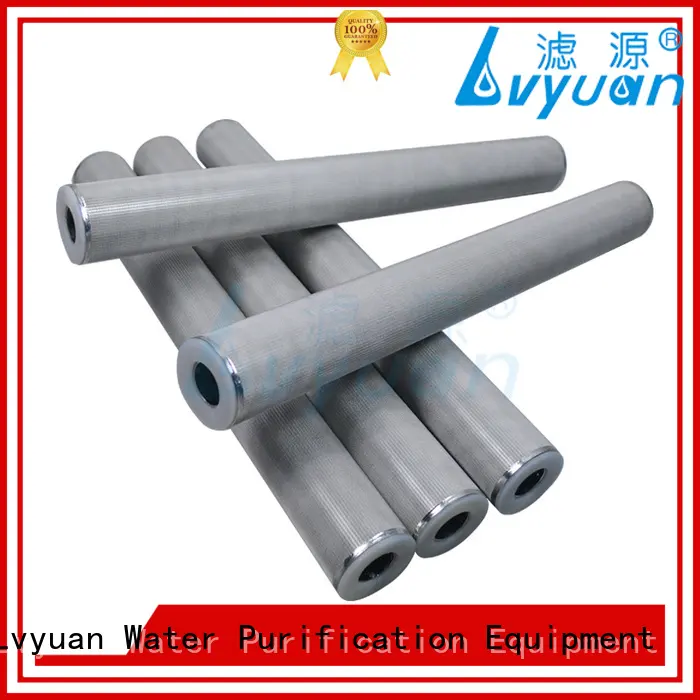

◆◆ Sintered Stainless Steel Filter Cartridges are the perfect choice for high temperature, high differential pressure and high viscosity applications. Manufactured with 304, 316 or 316L material, there’re mainly 3 types of stainless steel cartridge designs are widely used in the industry.
1. Plain cylindrical design SS wiremesh filter cartridge.
2. Pleated configuration design SS folded mesh filter cartridge.
3. Sintered SS316 metal powder type SS filter cartridge.
Product Feature
◪ Excellent mechanical strength.
◪ High dirt holding capacity.
◪ High pressure resistance, withstand capacity and low pressure drop.
◪ Temperature ratings from -73°C to 480°C.
◪ Various micron ratings available from 2um to 1000um nominal.
◪ Back flushing and cleanable for long service life.
◪ Strong corrosion resistant for wide chemical compatibility.
◪ High permeability, no media migration.
◪ Customized dimension are welcome.
Product Parameter
| Fiter Cartridge dimensions | |
| Length | 5’’ (125mm), 10’’ (250mm), 20’’ (500mm), 30’’ (750mm), 40’’ (1000mm) |
| Diameter | Ø25, 30, 50, 60, 65, 70mm |
| Other dimensions | Customized by customer’s request. |
| Material of constructions | |
| Filter media | SUS304, 316， 316L stainless steel |
| Connector type | Flat, Insert type, Thread type, Fin |
| End caps | DOE, SOE, 215, 222, 226, M20, M30, M42, 1’’ NPT/BSP or as request. |
| Outside protection net | Optional |
| Sealing material | Silicone, NBR, EPDM, Buna, Teflon, etc |
| Performance | |
| Removal rate | 1, 3, 5, 10,20, 30, 40, 50, 100um, etc |
| Effective Surface area | 0.65 sqm per 10" cartridge element |
| Operation Temperature | ≦ 480℃ |
| Cleaning method | back flushing, ultrasonic or other non-abrasive cleaning |
| Maximum Operating Pressure differential | 4.0 bar |
Product Details
Product Applications
Company Features
1. As an international company, Guangzhou Lvyuan Water Purification Equipment Co., Ltd. has strong manufacturing foundation and solid expertise in sintered metal filter development and production. Guangzhou Lvyuan Water Purification Equipment Co., Ltd. has advanced production processes and modern management mode.
2. Guangzhou Lvyuan Water Purification Equipment Co., Ltd. has built solid technology foundation over years of development.
3. Lvyuan has employeed professional technicians who have rich experience in producing sintered stainless steel filter . We want to do the right thing not only for our customers and shareholders but for our people, and the environment. We do this by embedding responsible and sustainable business practices at the heart of everything we do through our own environmental programs. Check now!
