Lvyuan Filter-Industrial Water Filter Cartridge & Housing Manufacturer Since 2009.
Lvyuan sintered plastic filter supplier for sea water desalination3
1. Advanced computer-aided technologies are applied in Lvyuan sintered plastic filter design. Its phototype is created using CAD and CAM technologies by the designers. There is different porosity across the depth of its filter medium
2. This product is highly recommended worldwide due to its high economic efficiency. It is manufactured from 100% Polypropylene construction
3. The product is not prone to rust. The presence of the stable film prevents corrosion by acting as a barrier that limits oxygen and water access to the underlying its surface. It is resistant to putridity, acid and alkali, organic or inorganic solvent
4. The product features low energy consumption. The ingenious circuit design is able to minimize losses due to transient currents during switching. It contains no binders, agents, solvents, antistatic materials or wetting agents

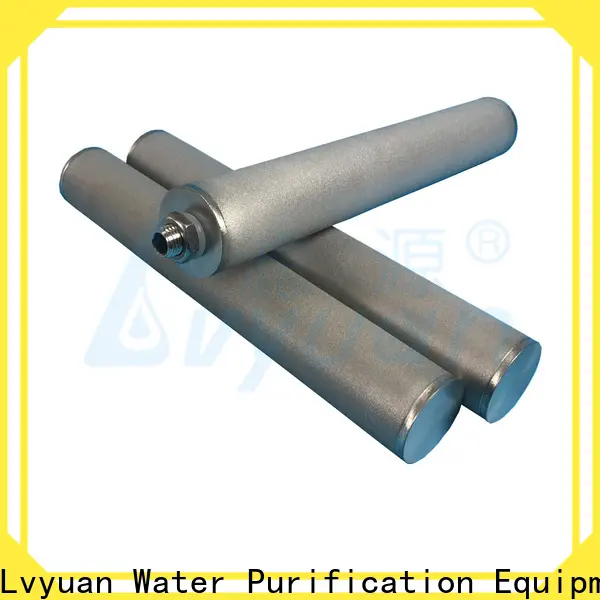

The stainless powder sintered filter is made by molding of stainless powder through high temperature sintering, also it adopts unique technology and strictly control production technique(include power grain distribution, molding and sintering).
The filter is characterized by high machinery strength, high conditions can be adjusted so as to produce the porous metal sintered filter with a wider precision scope. High-temperature resistance and Good air permeability.
Excellent machinery strength, applicable to the high temperature, high pressure and strong corrosivity.
◆◆ Main application cases
1. Filtration and recovery of catalyst.
2. Hot gas filtration in petrochemical industry
3. Purification of high temperature flue gas of metallurgy industry
4. Dust recovery of solid emulated bed and gas
5. Dust and end gas purification of thermal power and nuclear electric power generation.
Product Feature
◪ High-porosity and good air permeability, no media migration.
◪ High dirt holding capacity.
◪ High pressure resistance, withstand capacity and low pressure drop.
◪ High temperature resistance，Especially applicable to the hot gas filtration
◪ Various micron ratings available from 1 μm to 200 μm nominal.
◪ Strong corrosion resistant for wide chemical compatibility.
◪ Made entirely of SS316 or SS316L, cleanable and reusable
◪ Customized dimension are welcome.
Product Parameter
| Fiter Cartridge dimensions | |
| Length | 5’’ (125mm), 10’’ (250mm), 20’’ (500mm), 30’’ (750mm), 40’’ (1000mm) |
| Diameter | Ø60, 65, 70, 80 mm |
| Other dimensions | Customized by customer’s request. |
| Material of constructions | |
| Filter media | SUS316， 316L stainless steel |
| Connector type | Flat, Insert type, Thread type, Fin |
| End caps | DOE, SOE, 215, 222, 226, M20, M30, M42, 1’’ NPT/BSP or as request. |
| Sealing material | Silicone, NBR, EPDM, Buna, Teflon, etc |
| Performance | |
| Removal rate | 0.2-200 μm, etc |
| Operation Temperature | ≥ -270ºC, ≤500ºC |
| Cleaning method | back flushing, ultrasonic or other non-abrasive cleaning |
| Maximum Operating Pressure differential | 4.0 bar |
Product Details
Product Applications
Company Features
1. Since the establishment, Guangzhou Lvyuan Water Purification Equipment Co., Ltd. has gained valuable expertise and experience in designing and manufacturing ss sintered filter. We are widely accepted in the industry. Our company features professional manufacturing managers. They have years of expertise in manufacturing and are able to continuously improve the production process by implementing new technologies.
2. We have a qualified management team. With their years of experience and expertise, they are able to decide the company's best route for navigating the future market conditions.
3. With complete, scientific and quality management, the factory has established and perfected strict testing system for products. Hence, we can carry out the professional quality inspection to ensure the quality of the products. The development of all respects of company facilitates Lvyuan to be more attractive. Get info!
