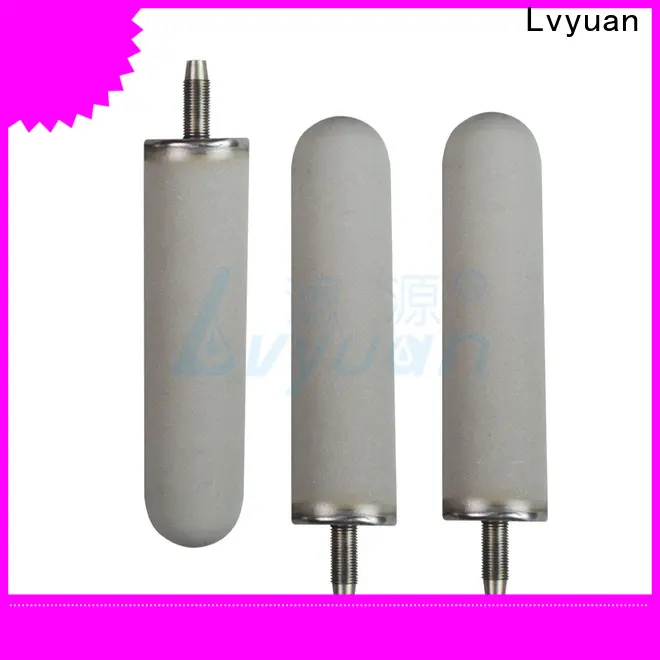

Lvyuan sintered powder ss filter rod for food and beverage

Start Port:
Guangzhou
Production Capacity:
400 units/Month
Place of Origin:
Guangdong, China
Payment:
T/T, Alibaba Trade Assurance, paypal
MOQ:
10pcs
Model:
LY-TIC
Delivery Time:
In 7 to 15 working days
Certification:
SGS, ISO 9001
Brand:
OEM/Lvyuan
Inquiry
Company Advantages
1. The production of Lvyuan ss sintered filter cartridge involves several requirements, such as the adoption of fireproof materials and coatings and surface treatments for corrosion. It features a high flow rate and stable filtering accuracy
2. Our company mission for sintered powder ss filter is that quality and service go side by side.
3. This product features ergonomic comfort. Garment design that takes into consideration the ease and contour and how these two factors affect this product in different areas contributes to its ergonomic comfort. It contains no binders, agents, solvents, antistatic materials or wetting agents
4. The product is built to last. It holds the features of rust-resistant to prevent it from water or moisture corrosion on the basis of the high-quality metal materials used in it. It is available in a wide selection of micron ratings from 1 to 100 μm
Lvyuan sintered powder ss filter rod for food and beverage 11
Sintered Titanium water filter cartridge is based on pure titanium powder (99.7% or higher) as the main raw material, made through high temperature sintering process. The uniform structure, small pore density is high, the filtration resistance, good permeability. Also it has the high filtration precision, acid & alkali corrosion, high temperature resistant characteristic. It can be used for solid liquid, gas separation and purification. The service performance is excellent, but the suction filter and press-filter, it will not form secondary pollution, simple operation, it can be on-line regeneration, easy to clean, and long service life.


  Product Feature

  • ◪   Uniform structure, narrow pore size distribution, and high separation efficiency.

  • ◪   High porosity, the resistance of filtration less, and the penetration efficiency is high.

  • ◪   High temperature resistant, it can be normally used below in 280 degree.

  • ◪   Good chemical stability, acid & alkali corrosion resistance, and oxidation resistance.

  • ◪   No particles fall off, it will not make the concentrate form secondary pollution, it conforms to be food hygiene and pharmaceutical GMP requirements.

  • ◪   Good mechanical performance, it can have the suction filtration and press-filtration, simple operation.

  • ◪   Low differential pressure, the area of cover is small, and large water flow rate;od mechanical performance, it can have the suction filtration and press-filtration, simple operation.

  • ◪   Strong antimicrobial ability, no microbes.

  • ◪   The finished-products technology is good, the overlength of overall length can be reached to 1000mm.

  • ◪   It can be on-line regeneration, easy to clean, and long service life.


Product Parameter



Fiter Cartridge dimensions
Length5’’ (125mm), 10’’ (250mm), 20’’ (500mm), 30’’ (750mm), 40’’ (1000mm)
DiameterØ22, 30, 50, 60, 70, 80, 100, 120mm
Other dimensionsCustomized by customer’s request.
Material of constructions
Filter mediaTitanium
Connector typeFlat, Insert type, Thread type, Fin
End capsDOE, 215, 222, 226, M20, M30, M42 or as request.
Sealing materialSilicone, NBR, EPDM, Fluoro rubber, etc
Performance
Removal rate0.1, 0.45, 1, 3, 5, 10,20, 30, 40, 50, 100um
Porosity28-50%
Temperature Tolerance≦ 300℃ wet
Permeability0.02-20L/cm2 min Pa
Maximum Operating Pressure differential6.0 bar
Flow rate (L/H)180, 200, 250, 280, 300, 350, 500, 800, 1000, 1500, 1600


◆◆Pure water flow rate reference table: the initial value of 10'' sintered titanium cartridge (P=0.2 MPa, 1cP, 25℃)

Micron rate (μm)0.20.451235102030
Flow rate (L/H)1802002502803003505008001000



Product Details



Lvyuan sintered powder ss filter rod for food and beverage 12

part.1
Various end caps. End caps can be customized as request.
Lvyuan sintered powder ss filter rod for food and beverage 13

part.2
Various dimensions. Dimension can be customized as request.
Lvyuan sintered powder ss filter rod for food and beverage 14

part.3
Wall thickness can be tailor made as request, 1mm, 2mm, 3mm, etc.



Product Applications



Lvyuan sintered powder ss filter rod for food and beverage 15
Pharmaceutical industry


Lvyuan sintered powder ss filter rod for food and beverage 16
Chemical industry
Lvyuan sintered powder ss filter rod for food and beverage 17
Electronic industry
Lvyuan sintered powder ss filter rod for food and beverage 18
Water treatment industry
Lvyuan sintered powder ss filter rod for food and beverage 19
Food and beverage industry
Lvyuan sintered powder ss filter rod for food and beverage 20
Oil refining industry
