Lvyuan ss bag filter housing replace for purify1
1. Lvyuan ss bag filter housing is fabricated with excellent production and perfect testing methods. The filter media is thermally bonded to prevent fiber release while providing consistent flow rates
2. Guangzhou Lvyuan Water Purification Equipment Co., Ltd. seizes ss bag filter housing market with its stainless bag filter strategy. With a large number of tapered fixing holes inside, it has a high dirt holding capacity
3. The product can withstand extreme weather elements. It can resist extreme cold, hot, dry, and humid environment without losing its original properties. Its filter medium is customizable according to the different water quality in the application
4. The product is reliable and stable in a high vibration environment. All parts are highly integrated and they will be not easily affected by the high vibration environment. It has a large effective filter area

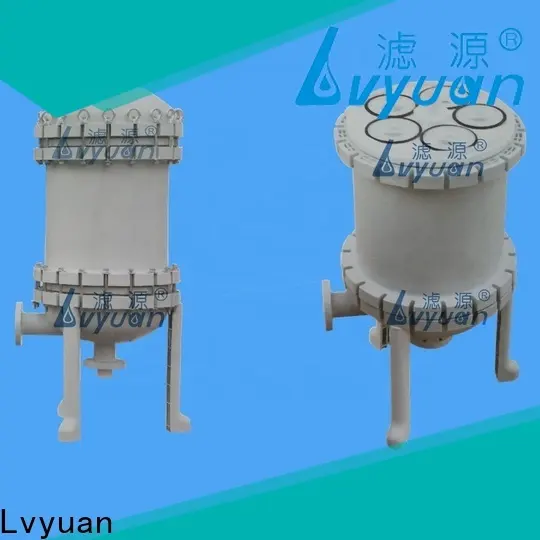

Factory Industrial Filtration single/multi bags housings PP/Polypropylene Bag filter housing with 1/5/10/25/50 micron
Bag filter is often characteristic of high flow rate and long service life. Bag filter is a widely used for liquid filtration, it can remove the particles of different size from liquid, in order to achieve liquid filtration, purification, separation, recovery purposes. It consists of three parts: bag housing, supporting basket and filter bags. According to flow rate, you may use multiple bags in a bag housing. First, the liquid enter into the housing from the inlet, which may placed in the side or on the top, and then flow into the filter bag which is braced by basket. Due to the impact pressure of fluid, the bag will extend and the liquid get evenly filtered through the bag and flow out of the outlet pipe. Impurities are trapped in the bag, the filtration process is complete.
Stainless steel Single bag filter housing and multi-bags filter housing, customized wall mounted or trolley type pneumatic big filter system/equipment/machine are provided.
Industrial pneumatic oil filtration system with bag filter equipment and mobile trolley
OEM Wall-mounted pneumatic stainless steel bag filter system
Product name: | Stainless Steel bag filter housing | Material | SUS304, SUS316, SUS316L |
Bag quantity | single bag or multi-bag | Bag number | # 1, 2, 3, 4, 5 or OEM |
Quantity option | 1 to 18 bags | Surface treatment | Polished or sandblast external |
Seal O-ring | silicon,NBR, EPDM, Viton, PTFE | In&outlet connection | V-clamp, thread or flange |
Bag Filtration rate | 0.5, 1 5, 10, 20, 50, 100, 200 to 500 micron | Usage | Liquid filtration |
Max working pressure | 100, 150, 300Psi, OEM | Wall thickness | 1.5~5mm |
Filter Bag Material and Specification:
Polyester Needle Felt (PET), Polypropylene Needle Felt (PPF), Polypropylene Plain (PPP), Nylon Monofilament (NMO), and many other materials..
Type | Flow rate (m³/H) | Filtration Area (㎡) | Size (DiameterxLength) |
#1 | 20 | 0.25 | 7''x16'' (180mmx410mm) |
#2 | 40 | 0.50 | 7''x32'' (180mmx810mm) |
#3 | 6 | 0.10 | 4''x8.25'' (102mmx210mm) |
#4 | 12 | 0.15 | 4''x14'' (102mmx356mm) |
#5 | 25 | 0.30 | 6 7/8''x34'' (175mmx870mm) |
Stainless Steel Bag Filter Housing with all accessories
1. Automotive
2. Food and Beverage
3. Chemical Processing
4. Paints, Inks, Resins and Coatings
5. Electronics
6. Petrochemicals
7. Municipal Water Treatment
8. Industrial Water Treatment
9. Pulp and Paper
10. Pharmaceutical
11. Lubricants, Metalworking Fluids
12. Solvents
BFH-01 V-clamp Closure Stainless steel single Bag Filter Housing
BFH-02 Flange/bolt lifting type Stainless Steel Single Bag Filter Housing
BFH-03 Flange/top install type Stainless steel Single Bag Filter Housing
BFH-04 Muti-bags Stainless Steel Bag Filter Housing
Custom-made Small flow rate Stainless Steel single Bag Filter Housing
Custom-made Stainless Steel Single Bag Filer Housing
Custom-made Dual Bag Filter Housing with trolley, pneumatic system available for option.
For more information, please feel free to contact us for the detail Catalog.
Single Bag filter housing Series, including Model BFL, BFH and BFC.
Multi bags filter housing, Model BFM multi-bag filter housing series:
Company Features
1. Guangzhou Lvyuan Water Purification Equipment Co., Ltd. is a manufacturer of stainless bag filter. Our experience and expertise have earned us a reputable name in this industry. You can fully rely on our high-end technology to produce best quality of ss bag filter housing .
2. Guangzhou Lvyuan Water Purification Equipment Co., Ltd. has accumulated much stainless steel bag filter housing production experience during their development.
3. Lvyuan has been also specialized in researching and developing stainless steel bag filter with exquisite quality. We have launched a series of sustainability initiatives. For example, we minimize our carbon footprint by using electricity more efficiently and reduce greenhouse gas emissions by minimizing waste.
