metal sintered plastic filter filter filtration Lvyuan
1. Lvyuan sintered plastic filter designed by a group of experts, combines aesthetic look and practicality.
2. Quality assurance procedure is carried out to improve the quality of this product.
3. Guangzhou Lvyuan Water Purification Equipment Co., Ltd. is in strict accordance with the ISO9001 quality management system.
Non-standard Stainless steel filter cartridges can be easily customized with various dimension, end cap, outer cage pattern etc. So as long as customer give us the picture and drawing of the ss filter cartridge, we can custom-make the exact ss filter element to you.

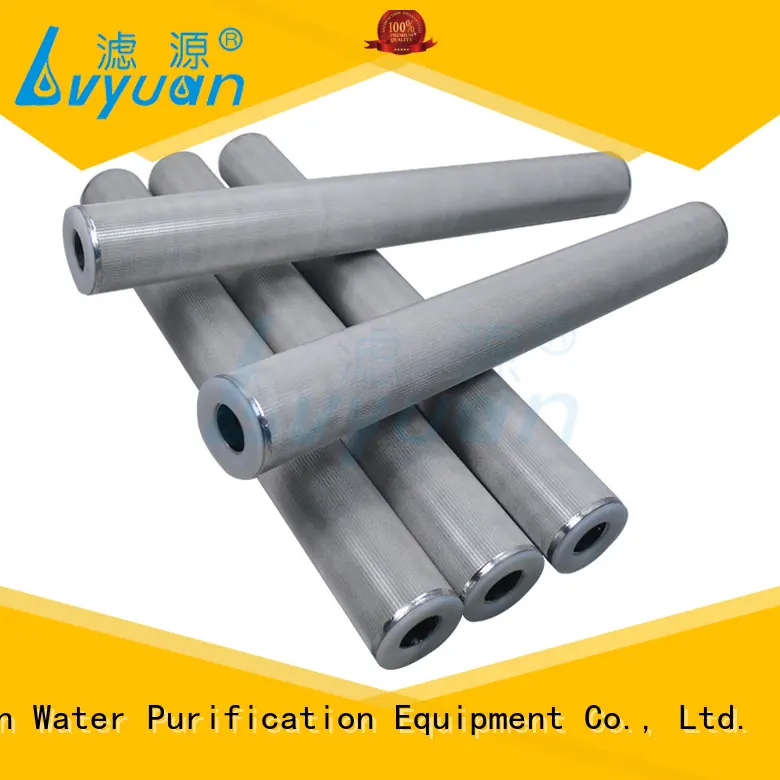

◆◆ Sintered Stainless Steel Filter Cartridges are the perfect choice for high temperature, high differential pressure and high viscosity applications. Manufactured with 304, 316 or 316L material, there’re mainly 3 types of stainless steel cartridge designs are widely used in the industry.
1.Plain cylindrical design SS wiremesh filter cartridge.

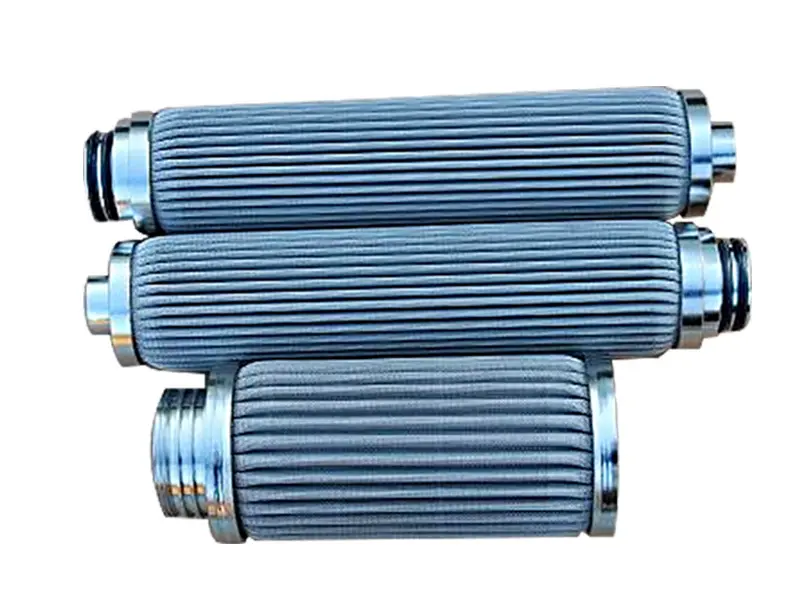

2.Pleated configuration design SS folded mesh filter cartridge.
3.Sintered SS316 metal powder type SS filter cartridge.
Product Feature
◪ Excellent mechanical strength.
◪ High dirt holding capacity.
◪ High pressure resistance, withstand capacity and low pressure drop.
◪ Temperature ratings from -73°C to 480°C.
◪ Various micron ratings available from 2um to 1000um nominal.
◪ Back flushing and cleanable for long service life.
◪ Strong corrosion resistant for wide chemical compatibility.
◪ High permeability, no media migration.
◪ Customized dimension are welcome.
Product Parameter
| Fiter Cartridge dimensions | |
| Length | 5’’ (125mm), 10’’ (250mm), 20’’ (500mm), 30’’ (750mm), 40’’ (1000mm) |
| Diameter | Ø25, 30, 50, 60, 65, 70mm |
| Other dimensions | Customized by customer’s request. |
| Material of constructions | |
| Filter media | SUS304, 316， 316L stainless steel |
| Connector type | Flat, Insert type, Thread type, Fin |
| End caps | DOE, SOE, 215, 222, 226, M20, M30, M42, 1’’ NPT/BSP or as request. |
| Outside protection net | Optional |
| Sealing material | Silicone, NBR, EPDM, Buna, Teflon, etc |
| Performance | |
| Removal rate | 1, 3, 5, 10,20, 30, 40, 50, 100um, etc |
| Effective Surface area | 0.65sqm per 10" cartridge element |
| Operation Temperature | ≦480℃ |
| Cleaning method | back flushing, ultrasonic or other non-abrasive cleaning |
| Maximum Operating Pressure differential | 4.0bar |

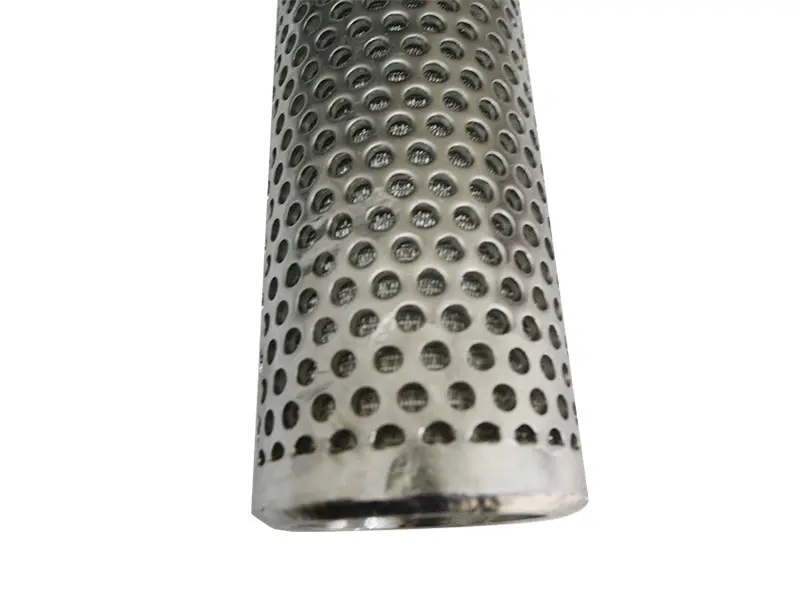

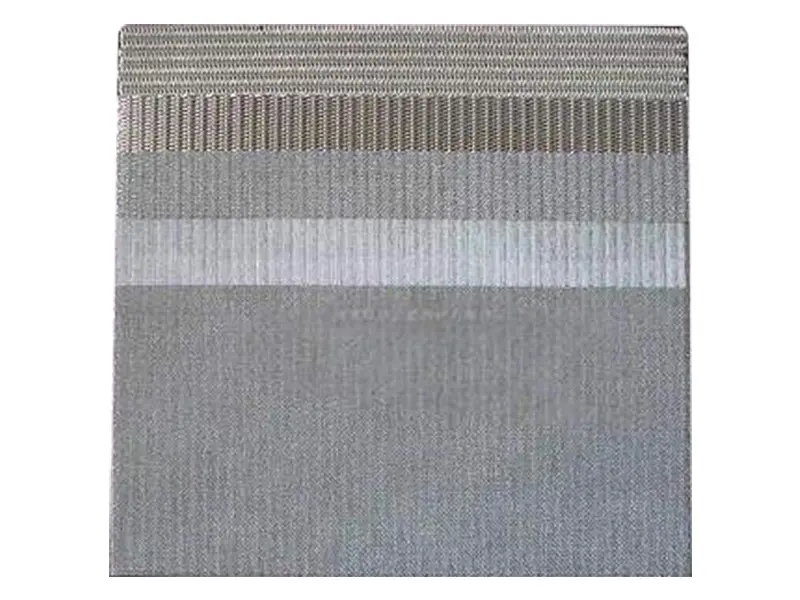

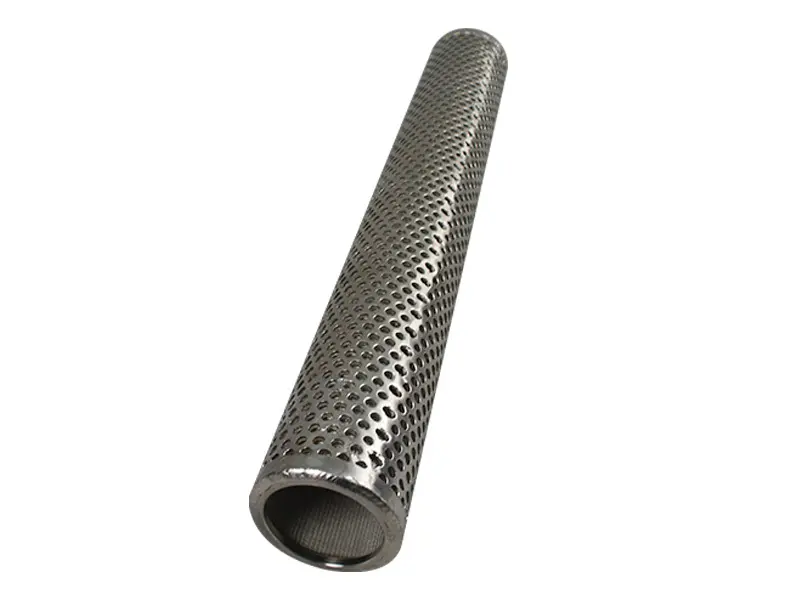

Product Details
Product Applications
Company Features
1. Guangzhou Lvyuan Water Purification Equipment Co., Ltd. is the world's largest producer of sintered plastic filter, with a magnificent ss sintered filter cartridge production.
2. Guangzhou Lvyuan Water Purification Equipment Co., Ltd. has an industry-recognized team of experts for sintered metal filter .
3. Guangzhou Lvyuan Water Purification Equipment Co., Ltd. always puts high quality first. Ask! To be among the innovative sintered metal filters suppliers manufacturers is the expectation of Guangzhou Lvyuan Water Purification Equipment Co., Ltd.. Ask! Guangzhou Lvyuan Water Purification Equipment Co., Ltd. will continue to develop new products to enhance its reputation and visibility. Ask!
