Newest ss bag filter housing suppliers for water purification
1. Lvyuan ss bag filter housing is exquisitely manufactured by combining both advanced technique and premium-quality materials. The filter media is thermally bonded to prevent fiber release while providing consistent flow rates
2. It is widely recommended in the industry because it brings considerable economic benefits to customers. It is manufactured from 100% Polypropylene construction
3. ss bag filter housing are recognized for their merits of stainless bag filter housing . It contains no binders, agents, solvents, antistatic materials or wetting agents
4. The result shows that ss bag filter housing has obvious superiority for stainless bag filter housing such as stainless bag filter. All its elements are made with FDA compliant material for food and beverage contact
5. ss bag filter housing has the characters of stainless bag filter housing , and can be utilized in stainless bag filter. The inner support layer is closely connected to the filter material, making it of strong impact resistance
SS304/316 Stainless steel single bag filter for water treatment filter housing
Bag filter is often characteristic of high flow rate and long service life. Bag filter is a widely used for liquid filtration, it can remove the particles of different size from liquid, in order to achieve liquid filtration, purification, separation, recovery purposes. It consists of three parts: bag housing, supporting basket and filter bags. According to flow rate, you may use multiple bags in a bag housing. First, the liquid enter into the housing from the inlet, which may placed in the side or on the top, and then flow into the filter bag which is braced by basket. Due to the impact pressure of fluid, the bag will extend and the liquid get evenly filtered through the bag and flow out of the outlet pipe. Impurities are trapped in the bag, the filtration process is complete.
Stainless steel Single bag filter housing and multi-bags filter housing, customized wall mounted or trolley type pneumatic big filter system/equipment/machine are provided.
Industrial pneumatic oil filtration system with bag filter equipment and mobile trolley
OEM Wall-mounted pneumatic stainless steel bag filter system
Product name: | Stainless Steel bag filter housing | Material | SUS304, SUS316, SUS316L |
Bag quantity | single bag or multi-bag | Bag number | # 1, 2, 3, 4, 5 or OEM |
Quantity option | 1 to 18 bags | Surface treatment | Polished or sandblast external |
Seal O-ring | silicon,NBR, EPDM, Viton, PTFE | In&outlet connection | V-clamp, thread or flange |
Bag Filtration rate | 0.5, 1 5, 10, 20, 50, 100, 200 to 500 micron | Usage | Liquid filtration |
Max working pressure | 100, 150, 300Psi, OEM | Wall thickness | 1.5~5mm |
Filter Bag Material and Specification:
Polyester Needle Felt (PET), Polypropylene Needle Felt (PPF), Polypropylene Plain (PPP), Nylon Monofilament (NMO), and many other materials..
Type | Flow rate (m³/H) | Filtration Area (㎡) | Size (DiameterxLength) |
#1 | 20 | 0.25 | 7''x16'' (180mmx410mm) |
#2 | 40 | 0.50 | 7''x32'' (180mmx810mm) |
#3 | 6 | 0.10 | 4''x8.25'' (102mmx210mm) |
#4 | 12 | 0.15 | 4''x14'' (102mmx356mm) |
#5 | 25 | 0.30 | 6 7/8''x34'' (175mmx870mm) |

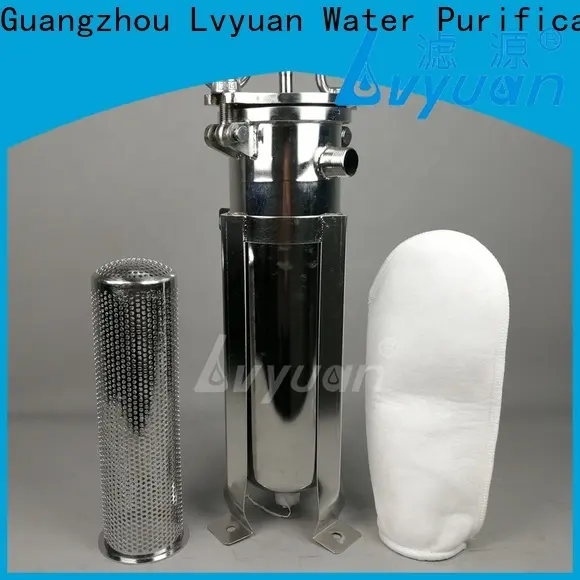

Stainless Steel Bag Filter Housing with all accessories
1. Automotive
2. Food and Beverage
3. Chemical Processing
4. Paints, Inks, Resins and Coatings
5. Electronics
6. Petrochemicals
7. Municipal Water Treatment
8. Industrial Water Treatment
9. Pulp and Paper
10. Pharmaceutical
11. Lubricants, Metalworking Fluids
12. Solvents
BFH-01 V-clamp Closure Stainless steel single Bag Filter Housing
BFH-02 Flange/bolt lifting type Stainless Steel Single Bag Filter Housing
BFH-03 Flange/top install type Stainless steel Single Bag Filter Housing
BFH-04 Muti-bags Stainless Steel Bag Filter Housing
Custom-made Small flow rate Stainless Steel single Bag Filter Housing
Custom-made Stainless Steel Single Bag Filer Housing
Custom-made Dual Bag Filter Housing with trolley, pneumatic system available for option.
For more information, please feel free to contact us for the detail Catalog.
Single Bag filter housing Series, including Model BFL, BFH and BFC.
Multi bags filter housing, Model BFM multi-bag filter housing series:
Company Features
1. Guangzhou Lvyuan Water Purification Equipment Co., Ltd. has been committed to the development and production of stainless bag filter housing for many years.
2. Staff working in Guangzhou Lvyuan Water Purification Equipment Co., Ltd. are all well-trained.
3. We strive for sustainable growth, offering responsible products at an affordable price. Using our expertise, we support more sustainable consumption patterns by reducing the environmental impact of our products.
