Factory Pricess Micron Filter Housing for Food Industry
Product Description
One core 10 inch cartridge type stainless steel material single SS304 water filter housing for pre water filter system:
LVYUAN stainless steel cartridge filter housing offers wide range of flow capacities & contaminant holding capacities.
Cartridge filters are normally used as polishing filter in almost all process industries. Cartridge filter is constructed of filter
housing, filter cartridges,tube sheet, positive sealing arrangement for cartridge depending upon type of cartridge& choice of end connections. Positive sealing arrangement for cartridge filter assures no particle migration or fiber migration, even after high differential pressures.
Model No. | Drain | Vent | In & Out | Body diameter | Thickness |
LY-FL-SC-L1 | 1/4" | 1/4" | 1/2" 3/4" 1" | 89mm | 1mm-2mm |
LY-FL-SC-L2 | 1/4" | 1/4" | 1/2" 3/4" 1" | 89mm | 1mm-2mm |
LY-FL-SC-L3 | 1/4" | 1/4" | 1/2" 3/4" 1" | 89mm | 1mm-2mm |
LY-FL-SC-L4 | 1/4" | 1/4" | 1/2" 3/4" 1" | 89mm | 1mm-2mm |
Features:
1.Inlet & outlet size is 1/2", 3/4". 1" for easy installation.
2. Working pressure 8kg/0.8Mpa, 10kg/1Mpa is supported.
3. Use the tap water pressure to provide power, no power consumption.
4. Wall-mounted, counter-top, very simple installation.
5. It is suitable for using in the water mater switch, for the pre filtration system and RO system protection.
6. Resistance to strong acid and alkali.
7. Low cost, it fits different kind of filter elements.
Structure:
Housing material 304 or 316L stainless steel, the housing body through inside and outside polishing, it meets the sanitary grade.
Inside with the silicone gasket, it can be applied to cold & hot water temperature.
High pressure resistance, corrosion resistance.

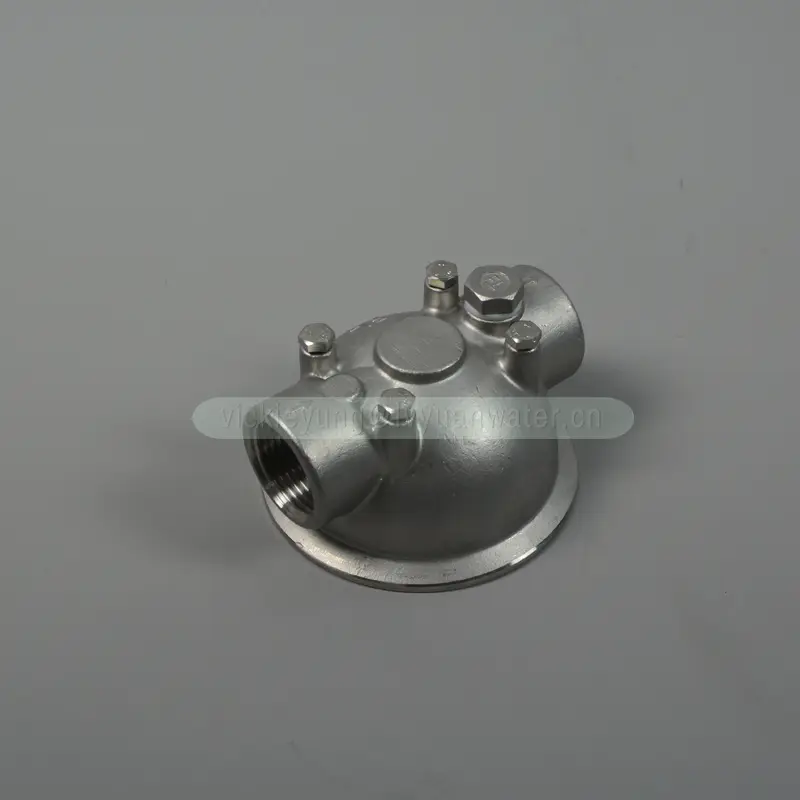

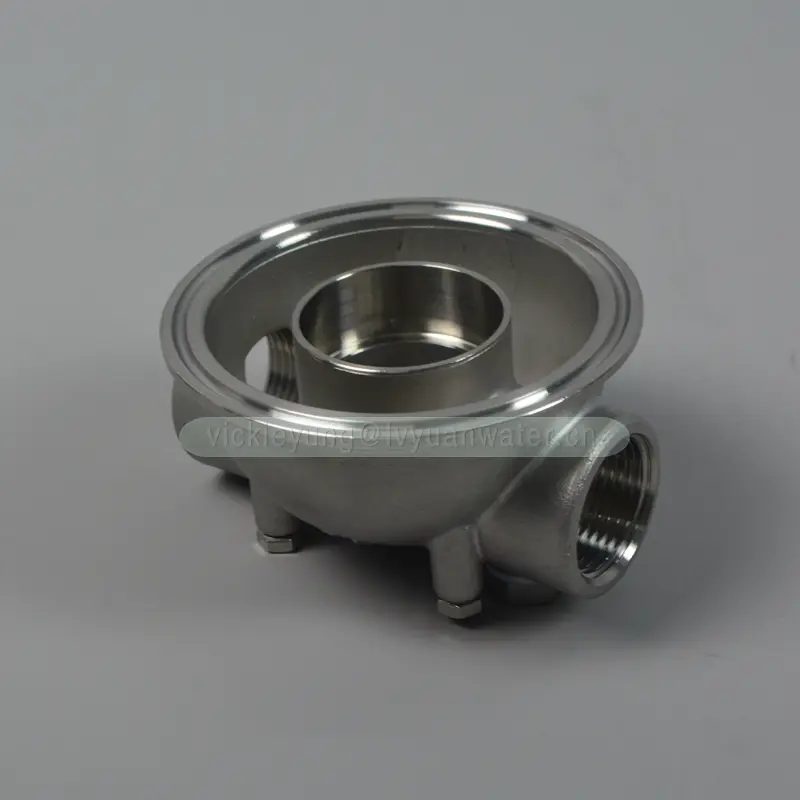

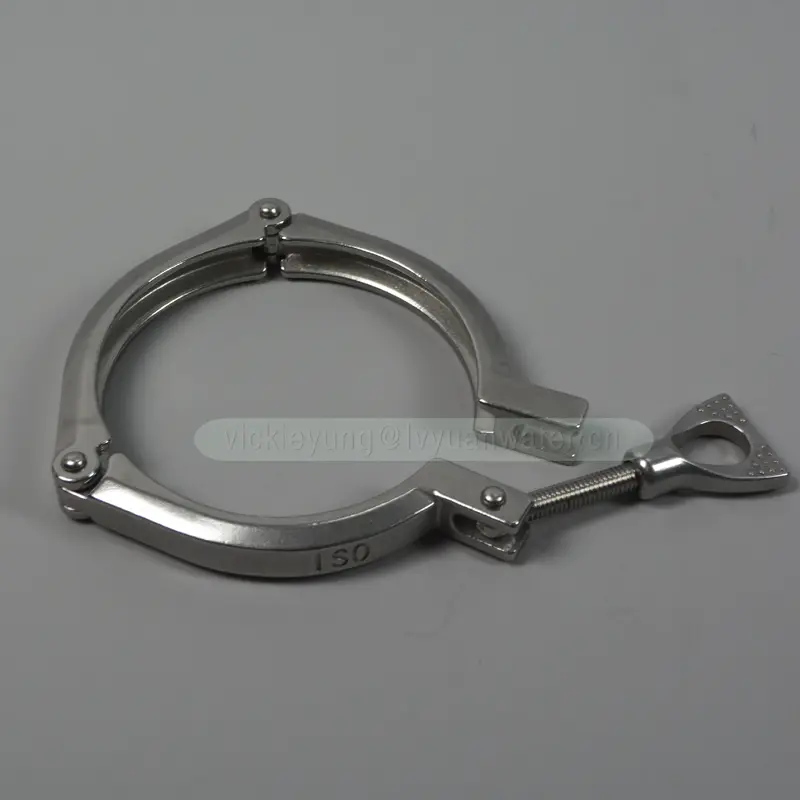

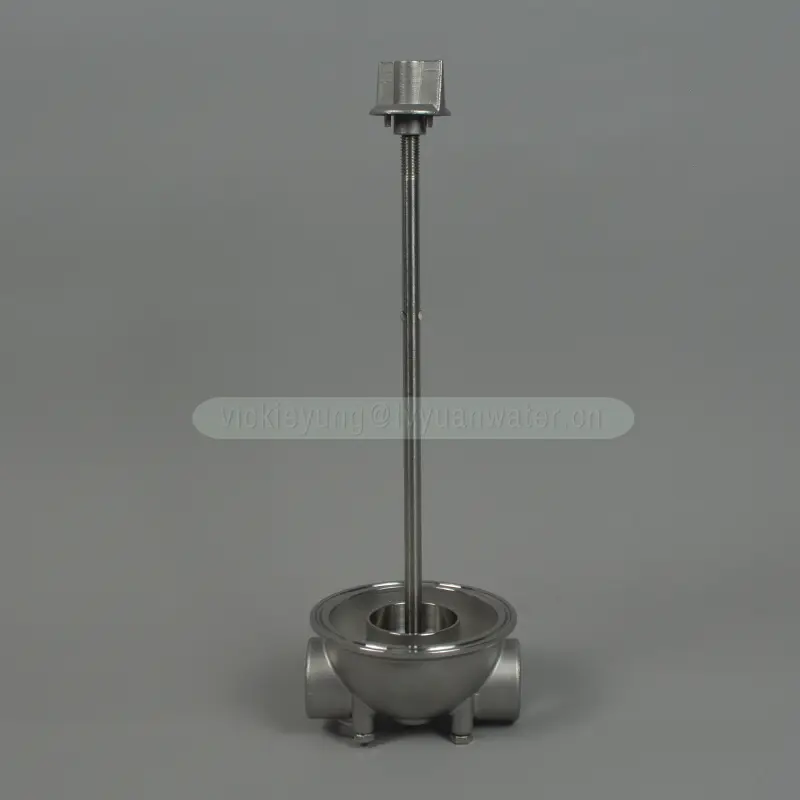

Detailed Images
Application
1. Widely used in UF, RO, EDI security filtration and the end-filtration.
2. Chinese herbal medicine, such as liquid filtration, biological agents extraction, purification and concentration.
3. Electonics, semiconductor industry with high purity water preliminary filter, teminal filter.
4. Oil field, chemical reagent, liquid organic products, high purity chemicals, strong medicine and other filtration.
5. Drinking pure water, mineral water, fruit juice, tea, beverages, health drinks.
6. Liquid, wine, beer, yellow wine and ther friut wine filtration, pure draft beer aseptic filtration.
7. The life and procution waste water treatment and water recycling process of pre-treatment filtering or security filtering.
8. Biological engineering, oil refining, printing and dyeing, testile industry water supply and waste water treatment, research and test filter, etc.
BOTTLED WATER
BEVERAGE & DRINKS
BIOLOGY TECHNOLOGY
RO WATER TREATMENT
CHEMICAL INDUSTRY
POWER PLANT
Related Products
Certifications
Our Company
Pls feel free to contact me at any time: :)
Favored by more and more customers, Lvyuan now has been applying the best materials and most advanced machines to produce. It is available in a wide selection of micron ratings from 1 to 100 μm.
Through the years of explore, Lvyuan has its own advanced technology to produce water filter cartridges. It is available in a wide selection of micron ratings from 1 to 100 μm.
Company Advantages
· The material of ss micron filter housing we used has a good durability.
· This product meets or exceeds all quality and safety standards.
· Different kinds of high-quality supply chains are Guangzhou Lvyuan Water Purification Equipment Co., Ltd.'s solid defense.
Company Features
· Guangzhou Lvyuan Water Purification Equipment Co., Ltd. is an economic power in ss micron filter housing field with its own powerful manufacturing capability.
· Guangzhou Lvyuan Water Purification Equipment Co., Ltd. has advanced techniques, modern testing methods and felicities.
· We desire to be a pioneer in the industry of ss micron filter housing. Get price!
Application of the Product
Lvyuan Water Purification Equipment 's ss micron filter housing can be used in multiple scenes.
We are committed to meeting the need of our customers. We will go deeper into their situation and provide them with most suitable solutions.
