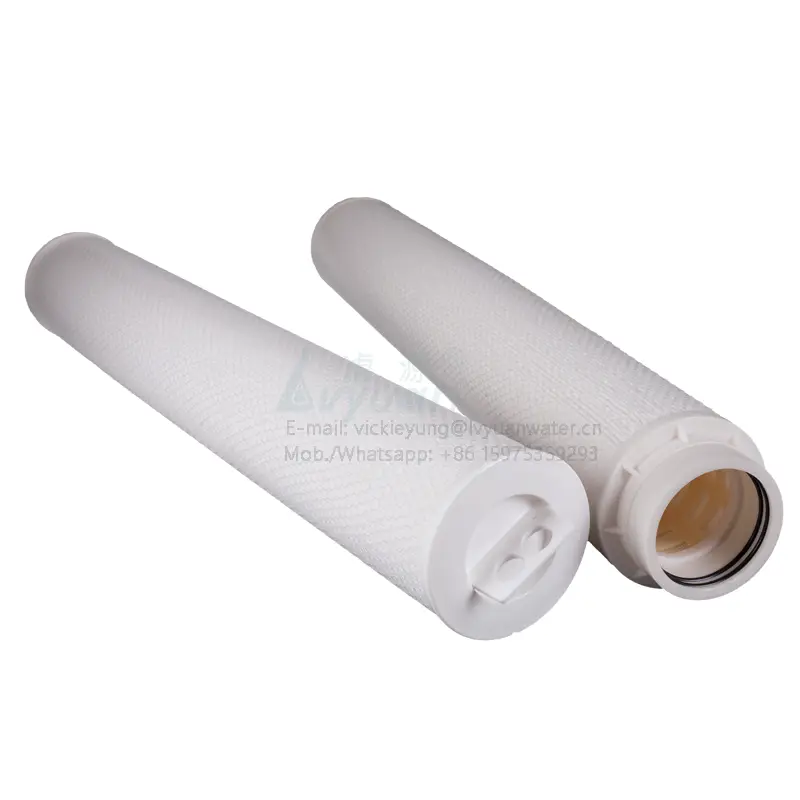

For Electrical Liquid Filtration Ultipleat High Flow Filter by Lvyuan Filter 1

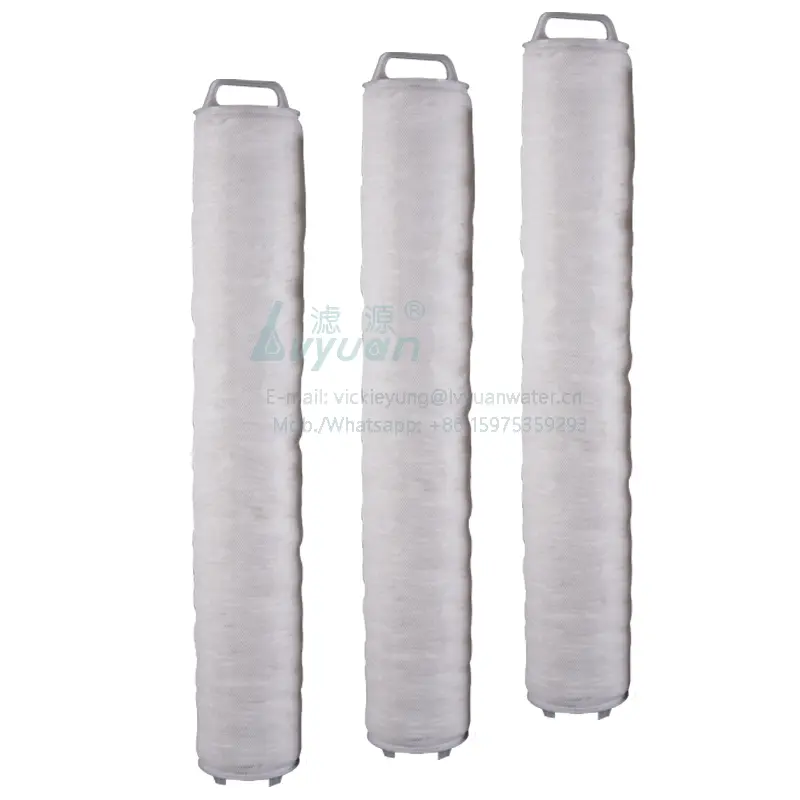

For Electrical Liquid Filtration Ultipleat High Flow Filter by Lvyuan Filter 2

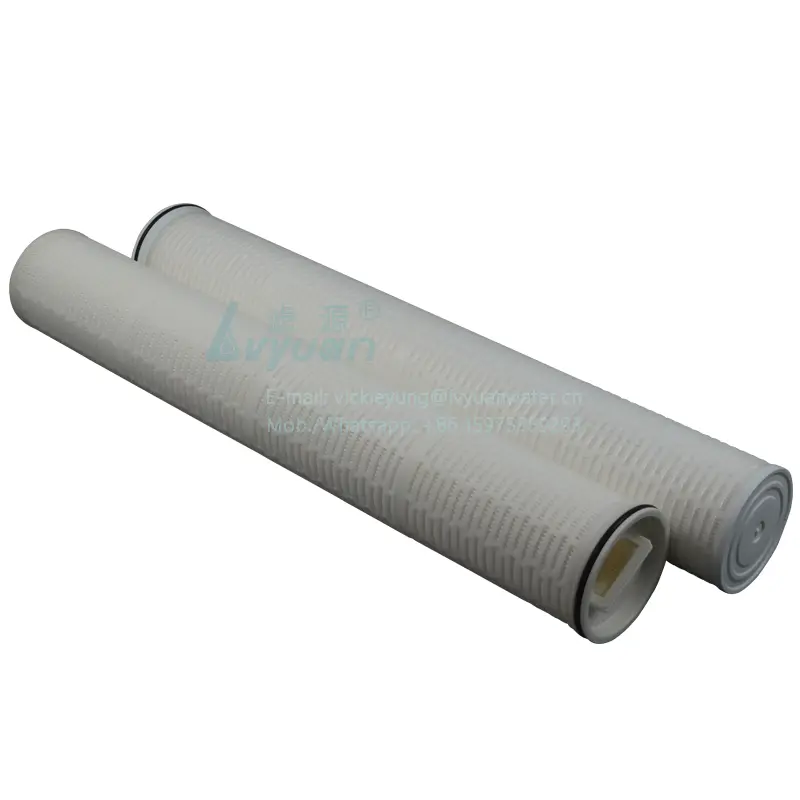

For Electrical Liquid Filtration Ultipleat High Flow Filter by Lvyuan Filter 3

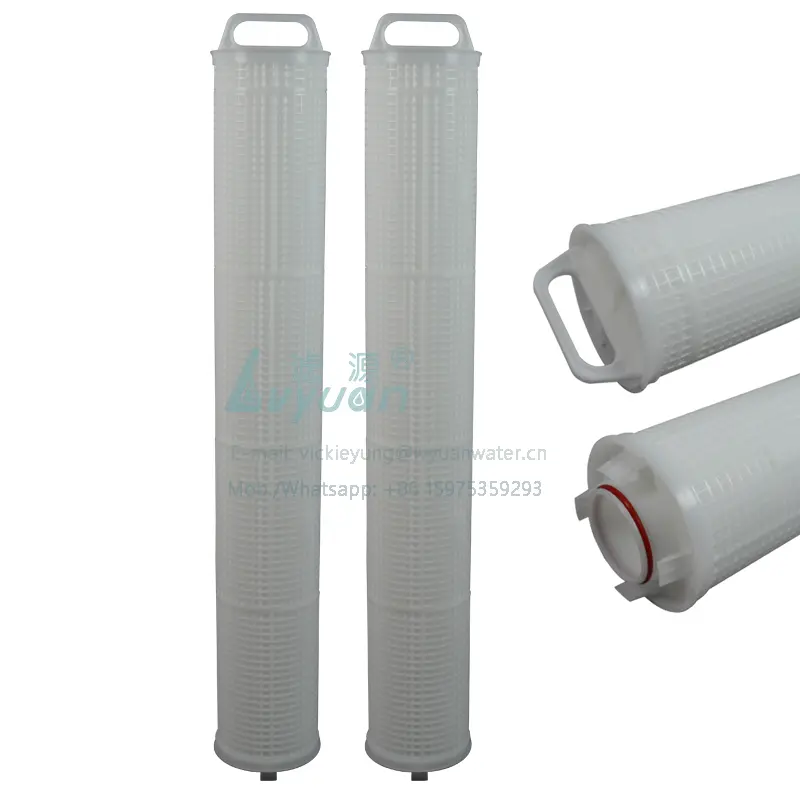

For Electrical Liquid Filtration Ultipleat High Flow Filter by Lvyuan Filter 4

For Electrical Liquid Filtration Ultipleat High Flow Filter by Lvyuan Filter 5

For Electrical Liquid Filtration Ultipleat High Flow Filter by Lvyuan Filter 6

For Electrical Liquid Filtration Ultipleat High Flow Filter by Lvyuan Filter

Inquiry

more products

Stainless Steel Filter Housing

Sediment Filter

Sintered Porous Plastic

Send your inquiry

Product details of the ultipleat high flow filter

Product Information

Through combining the advanced technology and our experienced professionals, Lvyuan Filter ultipleat high flow filter is manufactured with the finest workmanship. The product has been recognized internationally for its performance and quality. One of the factors contributing to the popularity of ultipleat high flow filter is its excellent quality and high reliability.

Overview

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: Lvyuan/OEM

Model Number:: LY-HF-01

Power (W):: 0

Voltage (V):: 0

After-sales Service Provided:: none

Warranty:: 1 Year

Type:: Reverse Osmosis

Certification:: GS

Use:: Household Pre-Filtration

Application:: Car, RV, Outdoor, Hotel, Garage, Commercial, Household

Power Source:: Manual

Name:: high flow polypropylene pleated filter cartridge

Filter membrane material:: PP/Fiberglass

Length:: 10/20/30/40/50/60 inch

Conector:: DOE/SOE/Customized

Micron:: 1/3/5/10/25/50/75/100/150

O-ring material:: EPDM/Viton/Silicone/PTFE

Sealing method:: Hot melting welding

Diameter:: 165mm/OEM

Inner Core:: PP

MOQ:: Currently no limited

Supply Ability

Supply Ability:: 10000 Piece/Pieces per Month

Guangzhou factory supply 40/50/60 inch high flow polypropylene pleated filter cartridge with 10 micron pp/glass fiber membrane

Product Description

For Electrical Liquid Filtration Ultipleat High Flow Filter by Lvyuan Filter 7

Product Name	Guangzhou factory supply 40/50/60 inch high flow polypropylene pleated filter cartridge with 5 micron
Filtration media	Polypropylene membrane & Fiberglass membrane
Support material	Polypropylene
Core & Structural components	Polypropylene
Inner core	Polypropylene
Packing method	Polybag with single box
Filtration precision	1μm, 2μm, 3μm, 5μm, 10μm, 20μm, 25μm, 30μm, 50μm
Length	10", 20", 30", 40", 50", 60", Customized
Adaptor	SOE/DOE
Sealing method	Hot melting welding
Sealing gasket & O-ring material	Silicone/EPDM/VITON/PTFE/NBR
Filter cartridge diameter	165mm
Max. working temperature	Pleated polypropylene: 82℃ Pleated fiberglass: 121℃ Melt blown: 65℃
Applications	Chemical industry; Organic solvents; Various of alcohols; Chemical reagents filtration; Sterile tank breathing apparatus; Pharmaceutical industry; Food industry; Electronic industry; RO water treatment; Medical liquid filtration;

Guangzhou factory supply 40/50/60 inch high flow polypropylene pleated filter cartridge with 5 micron:

The high flow replacement filter cartridge series designed to be used in the different filter housings which contains 1-37 filter cartridges. It can be used for different flow rate request. The large diameter with big filter area insures to reduce the number of filter cartridges and the dimension of housing required. This filter cartridges has various applications on water treatment system. Higher dirt holding capacity and longer service life with further specifications of the large industrial water plant projects. Most of the raw materials are imported from abroad.Pleated filter element is a kind of deep filtration filter,it is usuaslly used as liquid overheating,clarification, filtration and terminal filter.It has the following characteristics: the superfine polypropylene fiber membrane as the filtration medium, low pressure differential, high flux, good filtration precision, lower economic cost.The whole structure of polypropylene, end cover, housing and center pole adopts polypropylene material; It adopts the hot melt welding process, PP and PP melt bonding,without any binder.It has wide range of chemical compatibility, and also has a series of pore size and form a variety of interface.Material: Pleated filter, Support layer, End-cover, Inside & Outside cylinder are polypropylene.Welding: It adopts the uniquehot melting methods, no glue, no foreign body fall off.Typical use: Pharmaceutical, Food, Chemical, Electronics, Environmental protection, etc.Microporous membrane pleated filter cartridge main features: High interception rate, high liquidity, low pressure differential and a wide range of chemical compatibility; The production process adopts unique hot melting process technology, no any adhesive, no foreign body release. It can meet the food,beverage, beer, chemical, pharmaceutical and other industries production requirements.

Features

All contaminants can be removed within the cartridges because of the flow direction. Up to 110m³/h flow rate per one filter cartridge for water filtration. Max. 50% reduction of filter system. Multi membrane layers for large dirt holding in the high flow filter elements. Thermally bonded construction for stronger pressure resistance. Handle design quick installation, safe and reduce the cost.

Detailed Images

For Electrical Liquid Filtration Ultipleat High Flow Filter by Lvyuan Filter 9

For Electrical Liquid Filtration Ultipleat High Flow Filter by Lvyuan Filter 11

For Electrical Liquid Filtration Ultipleat High Flow Filter by Lvyuan Filter 13

General Description

The LY-HFM filter cartridge series designed to be used in the different filter housings which contains 1-37 filter cartridges. It can be used for different flow rate request. The large diameter with big filter area insures to reduce the number of filter cartridges and the dimension of housing required. This filter cartridges has various applications on water treatment system. Higher dirt holding capacity and longer service life with further specifications of the large industrial water plant projects.

For Electrical Liquid Filtration Ultipleat High Flow Filter by Lvyuan Filter 15

For Electrical Liquid Filtration Ultipleat High Flow Filter by Lvyuan Filter 17

For Electrical Liquid Filtration Ultipleat High Flow Filter by Lvyuan Filter 19

General Description

The LY-HFMH filter cartridge series designed to be used in the different filter housings which contains 1-37 filter cartridges.The LY-HFPM series high flow filter cartridge is the horizontal pleated big flow water filter cartridge.It can be used for different flow rate request. The large diameter with big filter area insures to reduce the number of filter cartridges and the dimension of housing required. This filter cartridges has various applications on water treatment system. Higher dirt holding capacity and longer service life with further specifications of the large industrial water plant projects.

For Electrical Liquid Filtration Ultipleat High Flow Filter by Lvyuan Filter 21

For Electrical Liquid Filtration Ultipleat High Flow Filter by Lvyuan Filter 23

For Electrical Liquid Filtration Ultipleat High Flow Filter by Lvyuan Filter 25

For Electrical Liquid Filtration Ultipleat High Flow Filter by Lvyuan Filter 27

General Description

The LY-HFPK filter cartridge series is a replacement cartridges for the depth filtration and 2-1/2” diameter cartridges for the high flow applications. Pre-filtration for RO system is an example.The Lvyuan filter pleated design with high flow area and contamination removal capacity. This design helps end user to reduce capital investment, save space, and easy to change-out and etc. Up to 1300LPM flow rate per filter cartridge reduced the number of filter cartridges and the dimension of the filter housing required. Water treatment volume per super-high flow filter cartridge equals to 10x40” length, 2-1/2” diameter filter cartridges. Inner O-ring insures no by pass and handle design makes the installation easier.

For Electrical Liquid Filtration Ultipleat High Flow Filter by Lvyuan Filter 29

For Electrical Liquid Filtration Ultipleat High Flow Filter by Lvyuan Filter 31

For Electrical Liquid Filtration Ultipleat High Flow Filter by Lvyuan Filter 33

General Description

The LY-HFPL filter cartridge is a new product developed by Lvyuan Water Purification Equipment Co.,Ltd. In Guangzhou China. It has a 6 inch/152mm large diameter, it is made of 100% polypropylene media.The strong hard cage enables the high water flow filters to undertake a larger operation pressure during filtration process. The large diameter with big filter area insures to reduce the number of filter cartridges and the dimension of housing required. The long service life and high flow rate result in low investment and less manpower in many applications. This kind of LY-HFPL product has various applications on water treatment.

Application

For Electrical Liquid Filtration Ultipleat High Flow Filter by Lvyuan Filter 35

RO WATER TREATMENT

For Electrical Liquid Filtration Ultipleat High Flow Filter by Lvyuan Filter 37

BOTTLED MINERAL WATER

For Electrical Liquid Filtration Ultipleat High Flow Filter by Lvyuan Filter 39

CHEMICAL TECHNOLOGY FILTRATION

For Electrical Liquid Filtration Ultipleat High Flow Filter by Lvyuan Filter 41

BEER & BEVERAGE FILTRATION

For Electrical Liquid Filtration Ultipleat High Flow Filter by Lvyuan Filter 43

PETROCHMICAL INDUSTRY

For Electrical Liquid Filtration Ultipleat High Flow Filter by Lvyuan Filter 45

SEA DESALINATION WATER EQUIPMENT

Packing & Delivery

For Electrical Liquid Filtration Ultipleat High Flow Filter by Lvyuan Filter 47

Container for shipment

For Electrical Liquid Filtration Ultipleat High Flow Filter by Lvyuan Filter 49

Container for shipment

Certifications

For Electrical Liquid Filtration Ultipleat High Flow Filter by Lvyuan Filter 51

For Electrical Liquid Filtration Ultipleat High Flow Filter by Lvyuan Filter 53

For Electrical Liquid Filtration Ultipleat High Flow Filter by Lvyuan Filter 55

Our Company

For Electrical Liquid Filtration Ultipleat High Flow Filter by Lvyuan Filter 57

For Electrical Liquid Filtration Ultipleat High Flow Filter by Lvyuan Filter 59

Let's Make Custom Water Filter Cartridge For You Now.

The use of this product means saving time and labor costs. Thanks to its high efficiency, it can quickly finish tasks that people can not do. All its elements are made with FDA compliant material for food and beverage contact. People’s ways of life, industries’ production level, and the economy will get their peaks with the advent of this product. All its elements are made with FDA compliant material for food and beverage contact.

Company Feature

• With the aim of 'completely satisfying the customer', our company tries our best to offer the most satisfactory service to the customer.
• Lvyuan Water Purification Equipment enjoys a superior geographical location with many transportation routes. This facilitates the going out of people and the transportation of goods.
• With the reasonable price and high quality, our products are favored by domestic and foreign customers.
• Lvyuan Water Purification Equipment was established in For many years, we have always adhered to innovation and development. We have constantly improved product quality and enhanced brand value. We are dedicated to providing high-quality machinery and services.
• Compact in structure, stable in performance, reliable in quality, high in cost performance and wide in application, Lvyuan Water Purification Equipment 's mechanical equipment greatly improves production efficiency.
Leave your contact information, and Lvyuan Water Purification Equipment will provide you with more information.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
