Lvyuan Filter Ro Filter Cartridges Directly Sale

Company Advantages

· In order to provide the best quality ro filter cartridges, Lvyuan Filter never skimps on raw materials.

· Through strict quality monitoring process, all relevant defects of the product have been reliably detected and removed.

· Guangzhou Lvyuan Water Purification Equipment Co., Ltd. has the support of theLvyuan Filter brand and the overall strength of Lvyuan Filter.

Overview

Quick Details

Place of Origin:

China

Brand Name:

Lvyuan/OEM

Model Number:

LY-PLF-01

Power (W):

0

Voltage (V):

0

After-sales Service Provided:

none

Warranty:

none

Type:

Reverse Osmosis

Certification:

GS

Use:

Household Pre-Filtration

Application:

Car, RV, Outdoor, Hotel, Garage, Commercial, Household

Power Source:

Manual

Name:

pp water filter element

Filter membrane material:

PP/PVDF/PTFE/PES/Nylon

Length:

5 / 10 / 20 / 30 / 40 / 50 / 60 inch

Conector:

Fin/222/226/215/DOE/Thread

Micron:

0.22/0.5/1/3/5/10/25/50/75/100/150

Sealing method:

Hot melting welding

Diameter:

70mm/OEM

Inner Core:

PP/SS/OEM

MOQ:

Currently no limited

Supply Ability

Supply Ability:

5000 Piece/Pieces per Week

Online Customization

Factory price 5 micron 10 micron pp water filter element for RO system

Product Description

Product Name	Water treatment plant RO pleated filter 5 microns PP cartridge water filter with 10 20 30 40 inch length
Filtration media	PP/PTFE/PES/PVDF/Nylon
Support material	Polypropylene
Core & Structural components	Polypropylene
Inner core	PP/Stainless steel
Packing method	Polybag/Vacuum
Filtration precision	0.1μm, 0.2μm, 0.45μm,  0.65μm,0.8μm,1μm,2μm,3μm,5μm,10μm,20μm,25μm,30μm,50μm
Length	2.5", 5". 10", 20", 30", 40", 50", 60", OEM
Adaptor	215/222/226/Fin/Flat/Thread/OEM
Sealing method	Hot melting welding
Sealing gasket & O-ring material	Silicone rubber; Nitrile butadiene rubber, EPDM, Fluorine rubber.
Effect filtration area	≥0.6m²
Filter cartridge diameter	69mm
Max. working temperature	PP: 88℃,0.27Mpa； PTFE: 80℃, 0.173Mpa ；PES: 85℃, 0.28Mpa PVDF: 80℃, 0.173Mpa；Nylon: 49℃, 0.21Mpa
Max. positive differential pressure	0.42Mpa (25℃)
Max. back pressure differential pressure	0.28Mpa (25℃)
Sterilization conditions	121℃ 30min
Applications	Chemical industry; Organic solvents; Various of alcohols; Chemical reagents filtration; Sterile tank breathing apparatus; Pharmaceutical industry; Food industry; Electronic industry; RO water treatment; Medical liquid filtration;

PP melt blown water filter cartridge

Polypropylene melt blown filter cartridge or PP spun water filter, PP filter, PP filter cartridge is the most widely used filtration consumable products in domestic and industrial water treatment systems.

PP melt blown filter cartridges (PPF) are made of 100% pure polypropylene fiber, providing broad wide chemical compatibility. Melt Blown sediment filter cartridge has strong pollutants holding capacity.

Polypropylene microporous membrane filter

PP pleated filter cartridge deliver high efficiency and consistent filtration of fluids in a wide range of critical applications. They are constructed of pleated membrane filter media that provides removal of particles from 0.1 to 60um, the pore size is not affected by the vibration of feeding pressure, due to its unique low differential pressure, high flow volume, excellent filtration microns. The high surface area ensures long service life and low initial pressure drops.

Detailed Images

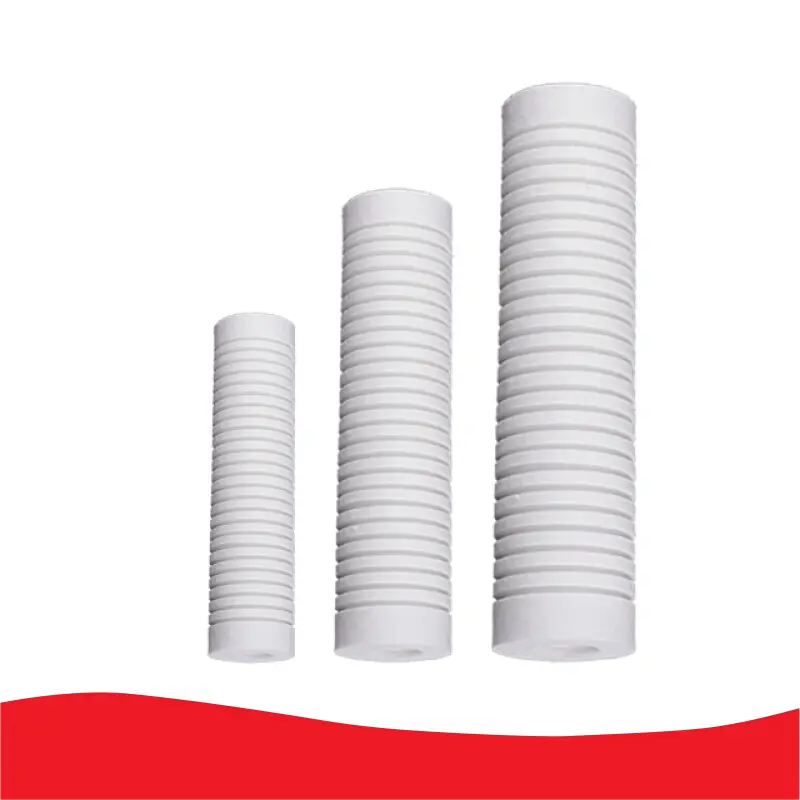

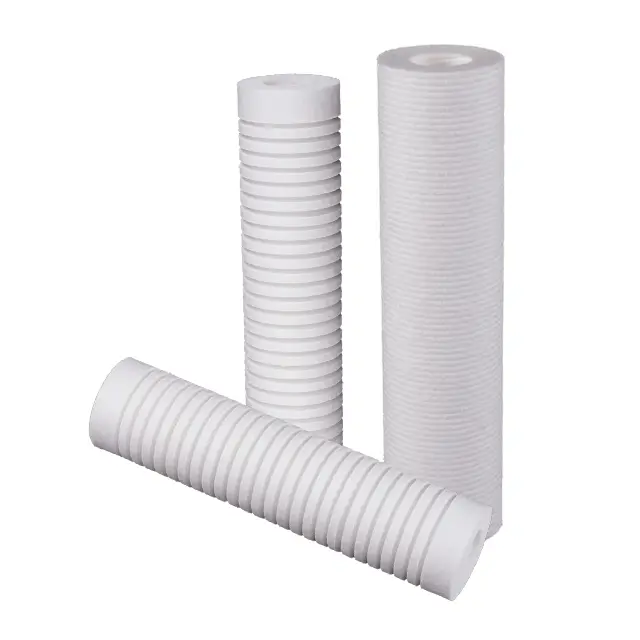

Groove surface PP sediment filter cartridges.

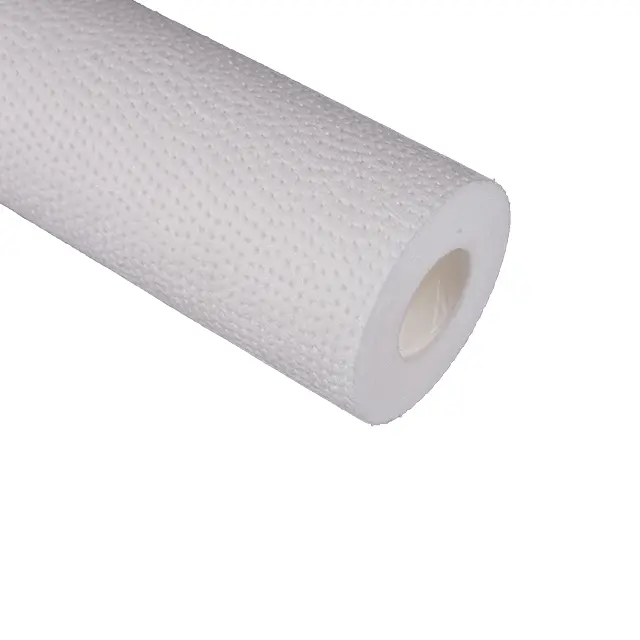

Flat surface PP sediment filter cartridge

215 222 226 Flat/Fin end cap PP filter, code 0 3 6 7 8 9 available.

DOE opened pleated filter

OEM customized size filter

Different end caps pleated filter

PP melt blown filter cartridge with 1 2 3 layers for option

PP shell Polypropylene melt blown filter cartridge

Customize PP core or stainless steel shell/core pp filter cartridge

Application

RO WATER TREATMENT

BOTTLED MINERAL WATER

CHEMICAL TECHNOLOGY  FILTRATION

BEER & BEVERAGE FILTRATION

PETROCHMICAL INDUSTRY

SEA DESALINATION WATER EQUIPMENT

Packing & Delivery

Container for shipment

Container for shipment

Certifications

Our Company

Let's Make Custom Water Filter Cartridge For You Now.

.

Company Features

· Guangzhou Lvyuan Water Purification Equipment Co., Ltd. is a survivor in the tough market competition, thanks to the well-crafted ro filter cartridges and excellent service.

· A solid technical foundation is the key to Guangzhou Lvyuan Water Purification Equipment Co., Ltd. greatly improving the quality of ro filter cartridges.

· We have defined our mission. To be a professional company of choice through continuous goal alignment of all stakeholders – clients, partners, employees, shareholders, and society. Call now!

Product Comparison

Compared with similar products, Lvyuan Water Purification Equipment 's ro filter cartridges has the following advantages.
