Lvyuan Filter Ss Micron Filter Housing Ss Micron Filter Housingsupply
Product details of the ss micron filter housing
Product Overview
Lvyuan Water Purification Equipment 's mechanical equipment has reasonable and novel design, compact structure and stable performance. In addition to the easy operation, it is also convenient to be installed. With all the features, our product is well received by users. High quality raw materials are used in Lvyuan Filter ss micron filter housing to ensure the safety of this product. The product is rather reliable in quality and can be used for a long time. This product manifests its huge potential in the field of application.
Product Information
ss micron filter housing has the following advantages over other products in the same category.
20 inch PP/pleated/sediment/SS cartridge filter security filter cartridge housing with NPT BSP thread port
Product Description
PP/pleated/sediment/SS cartridge filter security filter cartridge housing with NPT BSP thread port
LVYUAN stainless steel cartridge filter housing offers wide range of flow capacities & contaminant holding capacities. Cartridge filters are normally used as polishing filter in almost all process industries. Cartridge filter is constructed of filter housing, filter cartridges,tube sheet, positive sealing arrangement for cartridge depending upon type of cartridge& choice of end connections. Positive sealing arrangement for cartridge filter assures no particle migration or fiber migration, even after high differential pressures.
Model No. | Drain | Vent | In & Out | Body diameter | Thickness |
LY-FL-SC-L1 | 1/4" | 1/4" | 1/2" 3/4" 1" | 89mm | 1mm-2mm |
LY-FL-SC-L2 | 1/4" | 1/4" | 1/2" 3/4" 1" | 89mm | 1mm-2mm |
LY-FL-SC-L3 | 1/4" | 1/4" | 1/2" 3/4" 1" | 89mm | 1mm-2mm |
LY-FL-SC-L4 | 1/4" | 1/4" | 1/2" 3/4" 1" | 89mm | 1mm-2mm |
Features:
1.Inlet & outlet size is 1/2", 3/4". 1" for easy installation.
2. Working pressure 8kg/0.8Mpa, 10kg/1Mpa is supported.
3. Use the tap water pressure to provide power, no power consumption.
4. Wall-mounted, counter-top, very simple installation.
5. It is suitable for using in the water mater switch, for the pre filtration system and RO system protection.
6. Resistance to strong acid and alkali.
7. Low cost, it fits different kind of filter elements.
Structure:
Housing material 304 or 316L stainless steel, the housing body through inside and outside polishing, it meets the sanitary grade.
Inside with the silicone gasket, it can be applied to cold & hot water temperature.
High pressure resistance, corrosion resistance.

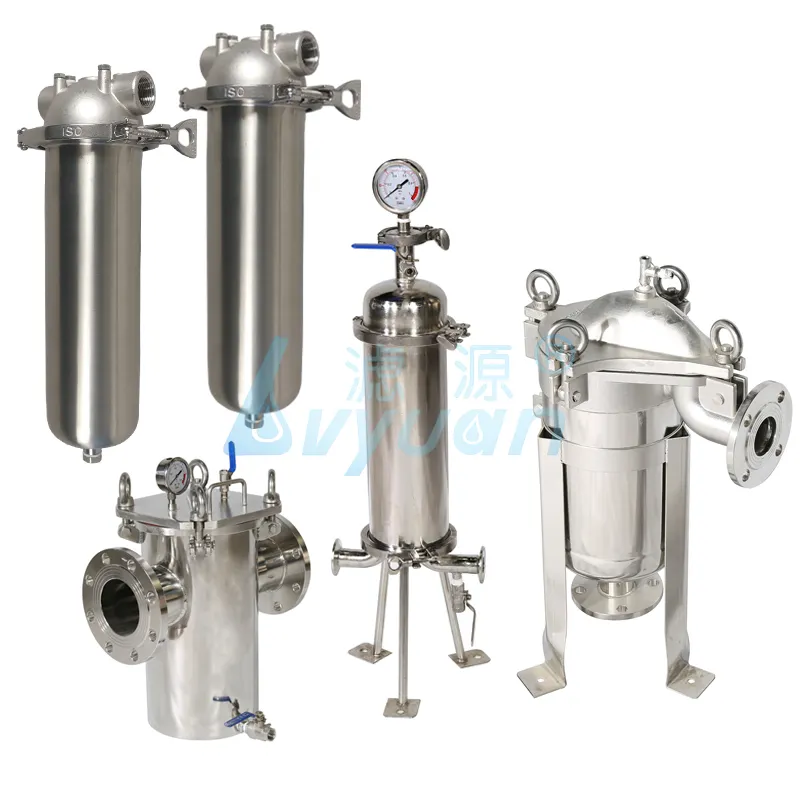

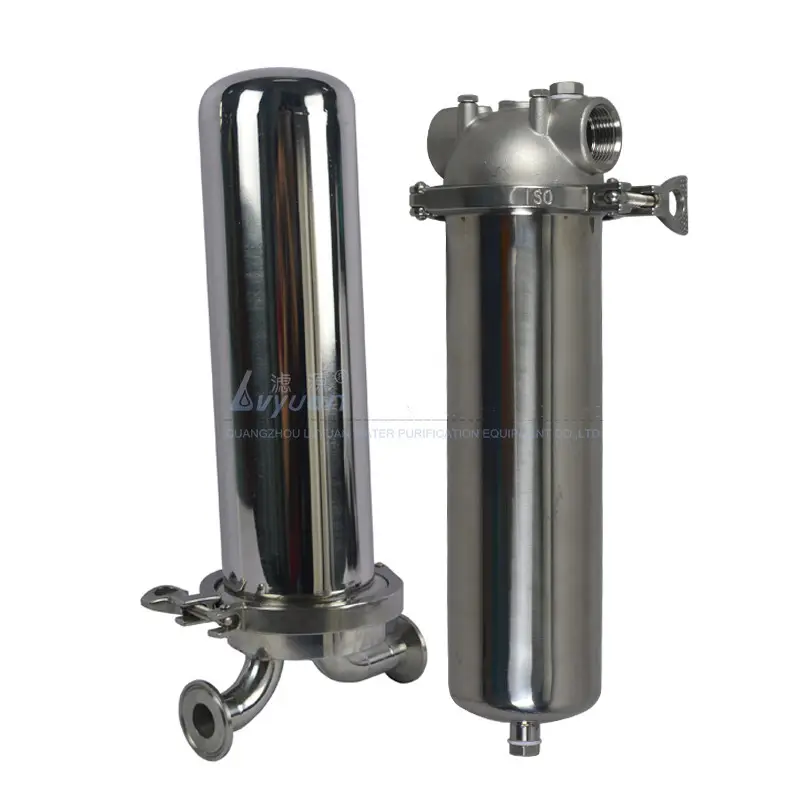

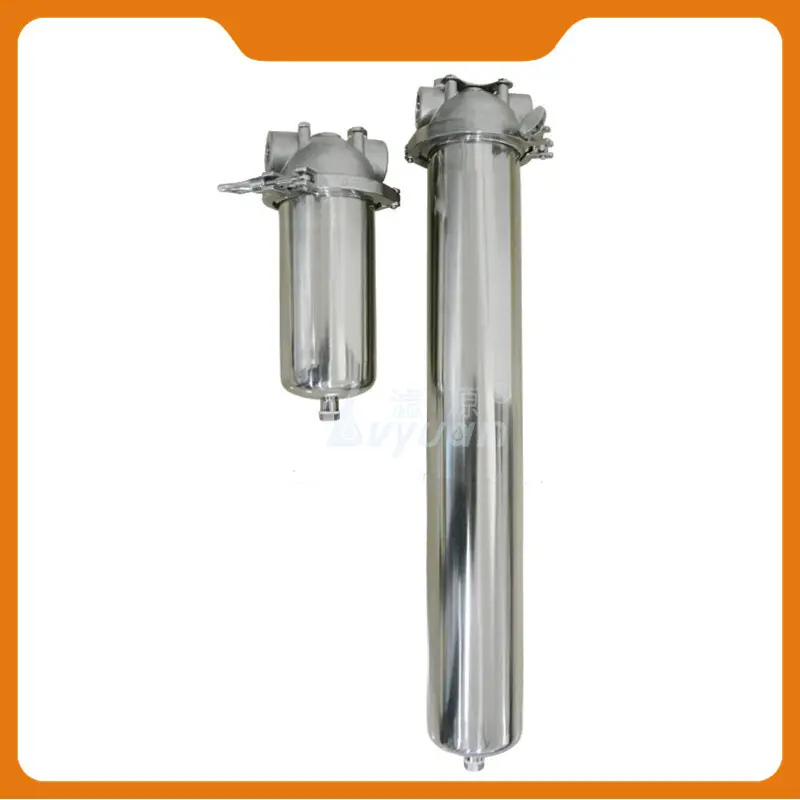

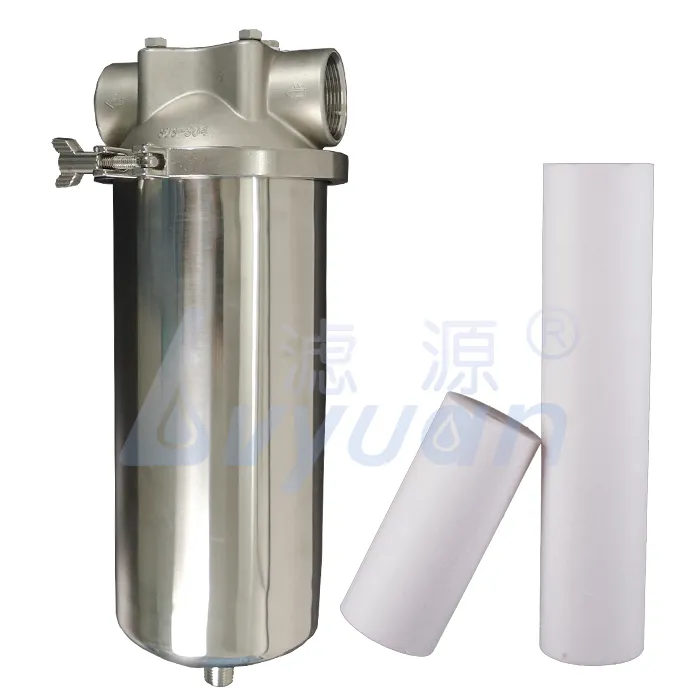

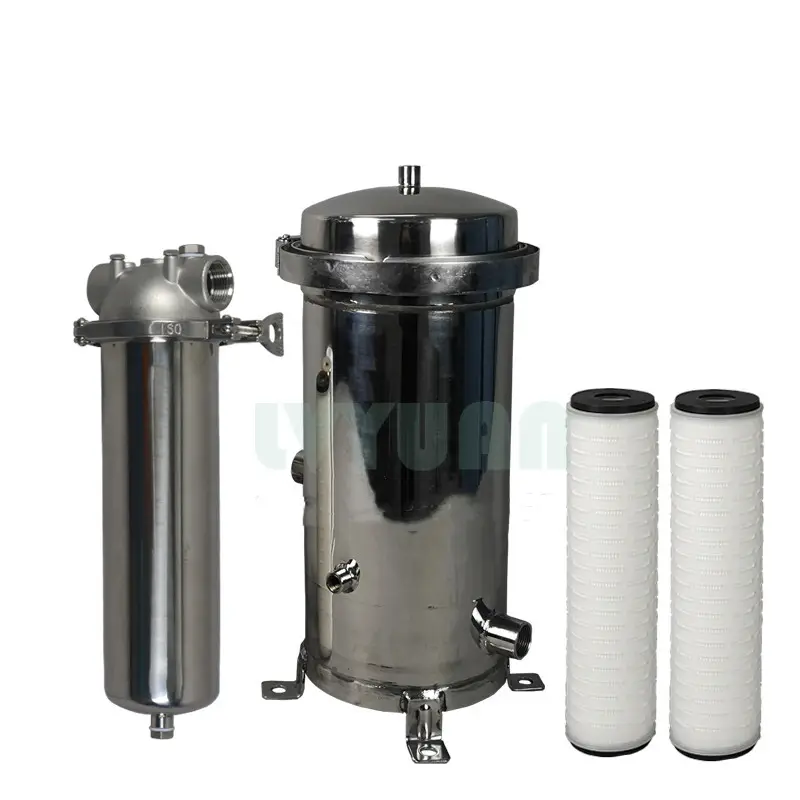

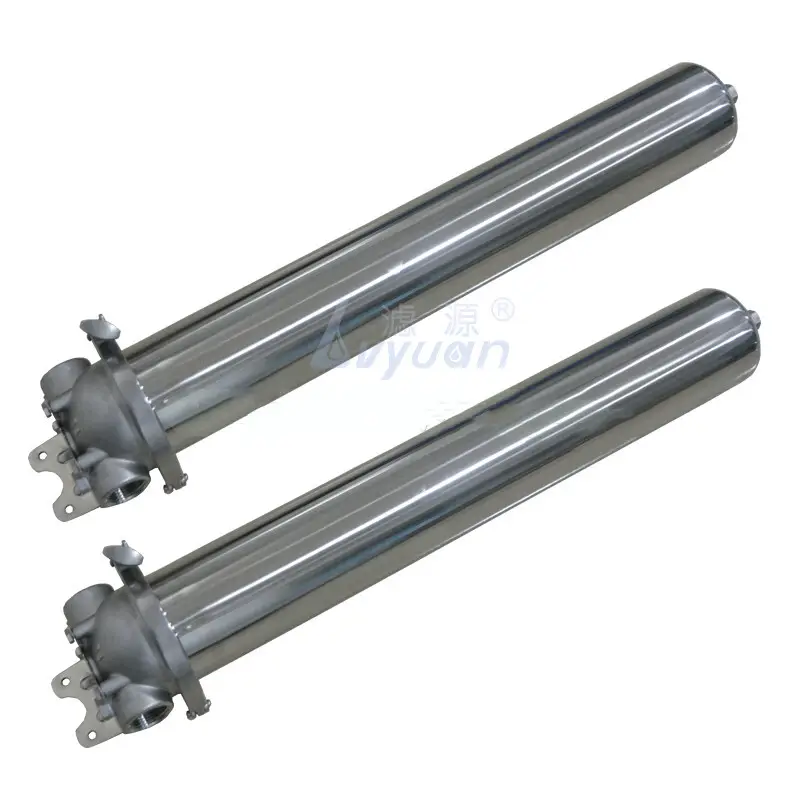

Detailed Images
Application
1. Widely used in UF, RO, EDI security filtration and the end-filtration.
2. Chinese herbal medicine, such as liquid filtration, biological agents extraction, purification and concentration.
3. Electonics, semiconductor industry with high purity water preliminary filter, teminal filter.
4. Oil field, chemical reagent, liquid organic products, high purity chemicals, strong medicine and other filtration.
5. Drinking pure water, mineral water, fruit juice, tea, beverages, health drinks.
6. Liquid, wine, beer, yellow wine and ther friut wine filtration, pure draft beer aseptic filtration.
7. The life and procution waste water treatment and water recycling process of pre-treatment filtering or security filtering.
8. Biological engineering, oil refining, printing and dyeing, testile industry water supply and waste water treatment, research and test filter, etc.
BOTTLED WATER
BEVERAGE & DRINKS
BIOLOGY TECHNOLOGY
RO WATER TREATMENT
CHEMICAL INDUSTRY
POWER PLANT
Related Products
Certifications
Our Company
Pls feel free to contact me at any time: :)
The use of this product helps strengthen operators' experience or deeps their technical know-how, which enables them to have vast knowledge on the use of machines. Its filter medium is customizable according to the different water quality in the application.
The product has been extensively applied in many industries because it can replace human to finish the repeated, tedious, or even dangerous tasks. Its filter medium is customizable according to the different water quality in the application.
Company Advantages
Guangzhou Lvyuan Water Purification Equipment Co., Ltd. is a comprehensive enterprise. We mainly focus on the production, processing and sales of water filter cartridges,cartridge filter manufacturer,cartridge housing manufacture. Under the background of the serious phenomenon of product homogenization, Lvyuan Water Purification Equipment strives to make progress and seek development and innovation in the machinery industry. We established a brand called Lvyuan Filter and stick to product differentiation. Our company has received popular recognition from customers with sincere service attitude, pragmatic serving style and innovative service methods. Therefore, we have a good reputation in the industry. With an efficient and professional R&D production team, our company could provide customers with one-stop custom services.
If you are interested in Lvyuan Water Purification Equipment 's water filter cartridges,cartridge filter manufacturer,cartridge housing manufacture, please contact us quickly. We will always provide sincere service for you!
