Safe to Usesintered Porous Filter for Food
Company Advantages
· Lvyuan Filter sintered porous filter is manufactured by dedicated workforces.
· sintered porous filter is widely used at home and abroad.
· The sales representatives of Guangzhou Lvyuan Water Purification Equipment Co., Ltd. will help you select right produces based on your targeted market and requirement.

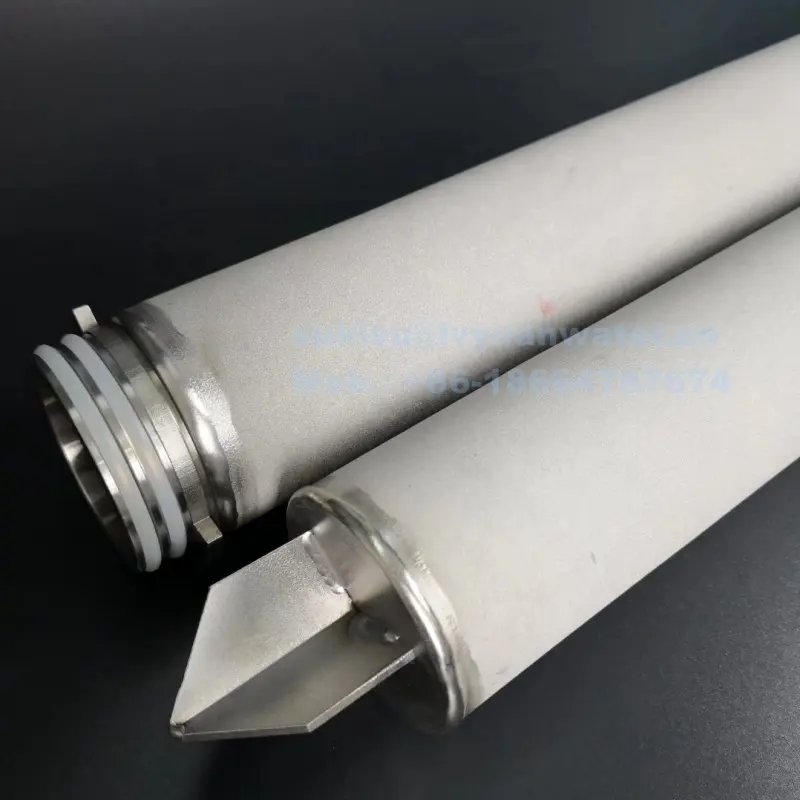

OEM 0.2 0.45 1 3 5 10 25 50 80 100 um micron Sintered stainless steel porous filter Cartridge with 226 M30 M20 DOE end caps
Plain cylindrical design Stainless Steel Wire Mesh filter cartridge
Pleated configuration design Stainless Steel folded mesh filter cartridge

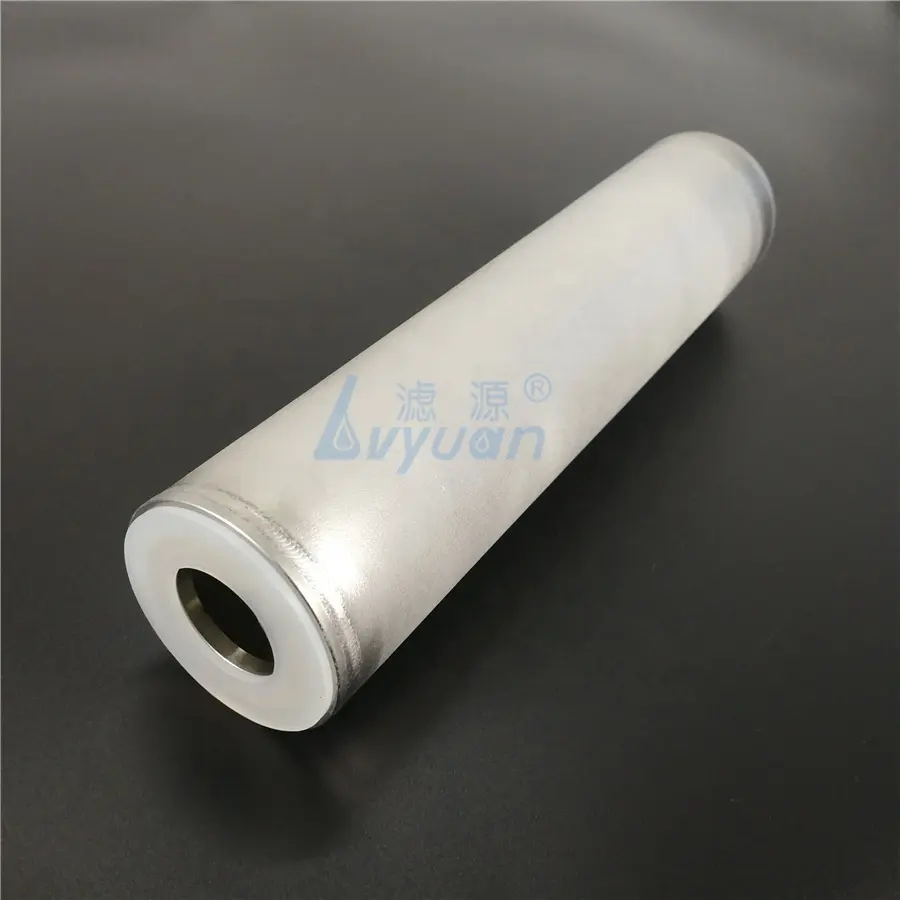

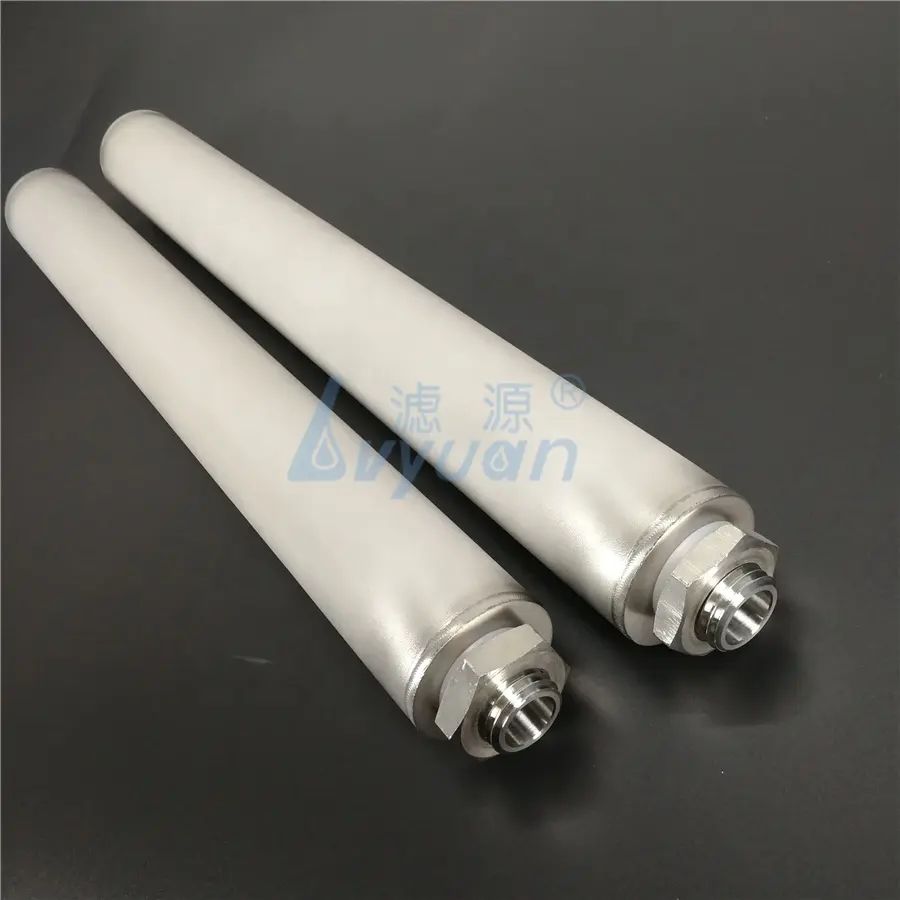

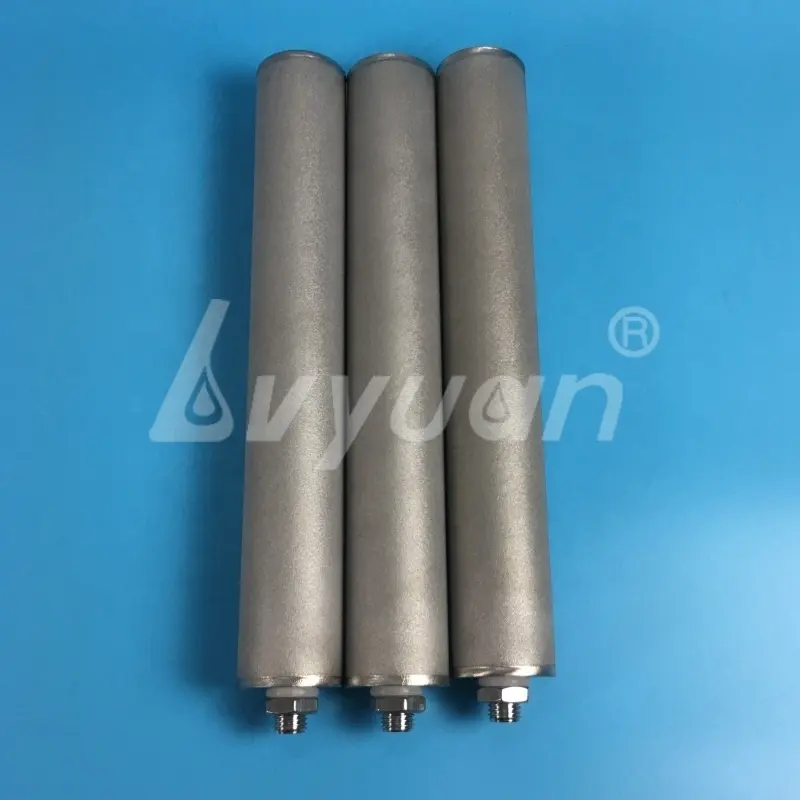

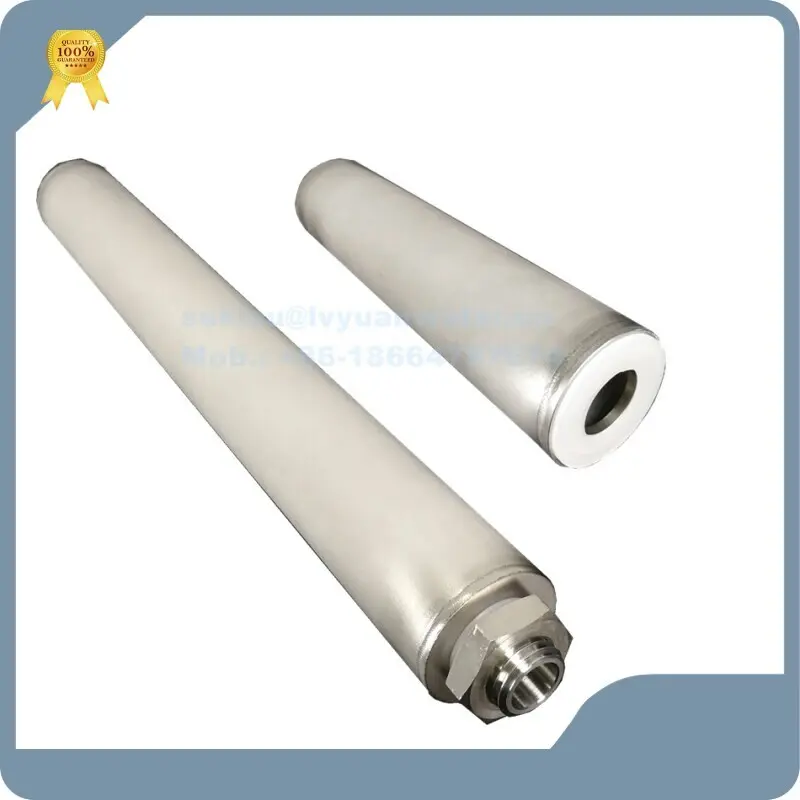

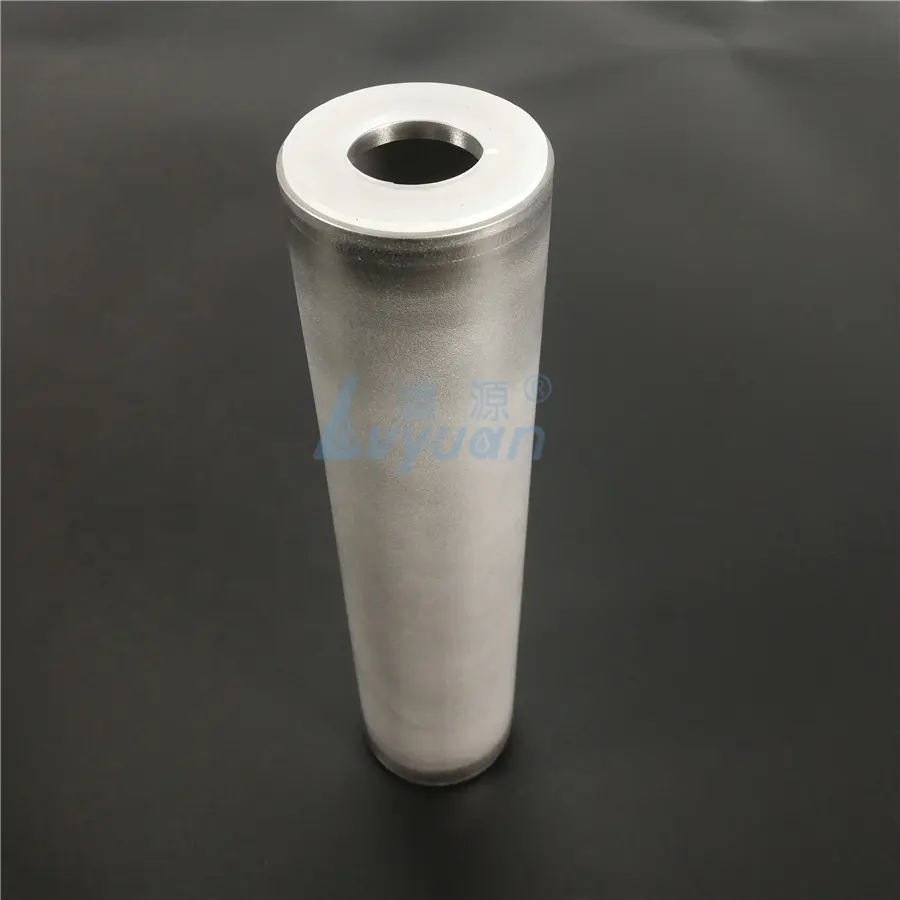

Sintered Porous Stainless Steel SUS316 Powder Filter Cartridge
Customized Porous Stainless Steel Filter cartridge with SS support Frame
0.2/0.5/1/5/10/25/50/80/100 um micron Sintered stainless steel porous filter Cartridge with 226 M30 M20 DOE end ca/p
Non-standard Stainless steel filter cartridge specifications (special size, shape, connection, etc) can be customized according to customer's requirement.
Fiter Cartridge dimensions | ||
Length | 5'' (125mm), 10'' (250mm), 20'' (500mm), 30'' (750mm), 40'' (1000mm) | |
Diameter | Ø25, 30, 50, 60, 65, 70mm | |
Other dimensions | Customized by customer's request. | |
Material of constructions | ||
Filter media | SUS304, 316, 316L stainless steel | |
Connector type | Flat, Insert type, Thread type, Fin | |
End caps | DOE, SOE, 215, 222, 226, M20, M30, M42, 1'' NPT/BSP or as request. | |
Outside protection net | Optional | |
Sealing material | Silicone, NBR, EPDM, Buna, Te-flon, etc | |
Performance | ||
Removal rate | 1, 3, 5, 10,20, 30, 40, 50, 100um, etc | |
Effective Surface area | 0.65sqm per 10" cartridge element | |
Operation Temperature | ≦480℃ | |
Cleaning method | back flushing, ultrasonic or other non-abrasive cleaning | |
Maximum Operating Pressure differential | 4.0bar | |
Features:
1.Excellent mechanical strength.2. High dirt holding capacity.3. High pressure resistance, withstand capacity and low pressure drop.4. Temperature ratings from -73°C to 480°C.5. Various micron ratings available from 2um to 1000um nominal.6. Back flushing and cleanable for long service life.7. Strong corrosion resistant for wide chemical compatibility.8.High permeability, no media migration.9.Customized dimension are welcome.
Stainless steeel Filter Cartridge Applications:1. Water filtrations2. Hydraulics3. Automotive4. Pneumatics5. Chemical6. Petrochemical7. Medical8. Oil & gas9. Aeronautical10. Mining11. Food & beverage12. Pharmaceutical
Factory
Workshop
Our Workshop
Warehouse
Our Warehouse
Team
Our Team
Company Features
· Guangzhou Lvyuan Water Purification Equipment Co., Ltd. is recognized for offering top-quality sintered porous filter.
· We adopt internationally advanced production equipment and processes. Our company has a very strict quality control system to ensure that our products are always of the best quality. sintered porous filter production is carried out in a scientific management mode.
· We will strive to enter the global market and become a famous sintered porous filter manufacturing brand. Check it!
Product Details
The specific details of sintered porous filter are presented below.
Product Comparison
Compared with other products in the same industry, Lvyuan Water Purification Equipment 's sintered porous filter has the following characteristics.
