Sintered Porous Stainless Steel Filters Factory Direct Supply for Food

Overview

Quick Details

Condition:

New

Applicable Industries:

Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops

After Warranty Service:

Online support

Local Service Location:

none

Showroom Location:

none

Video outgoing-inspection:

Provided

Machinery Test Report:

Provided

Marketing Type:

Ordinary Product

Warranty of core components:

1 Year

Core Components:

Pressure vessel

Place of Origin:

Guangdong, China

Brand Name:

Lvyuan/OEM

Warranty:

1 Year

After-sales Service Provided:

Online support

Product name:

compressed air filter element

Micron Rate:

0.1 to 400 micron

OEM dimension:

Available

Length:

5", 10", 20", 30", 40", 50'', 60'' inch

Stainless steel Material:

304, 316, 316L

Interface form:

222,226,215, M36, M24, M22, M20 thread interface

Layer:

pleated/mesh cartridge filter

Usage:

gas, liquid filtration

Heat resistence:

- 200 -- 500 degree

Working pressure:

0.1 to 30Mpa

Online Customization

Product Description

Plain cylindrical design Stainless Steel Wire Mesh filter cartridge

Pleated configuration design Stainless Steel folded mesh filter cartridge

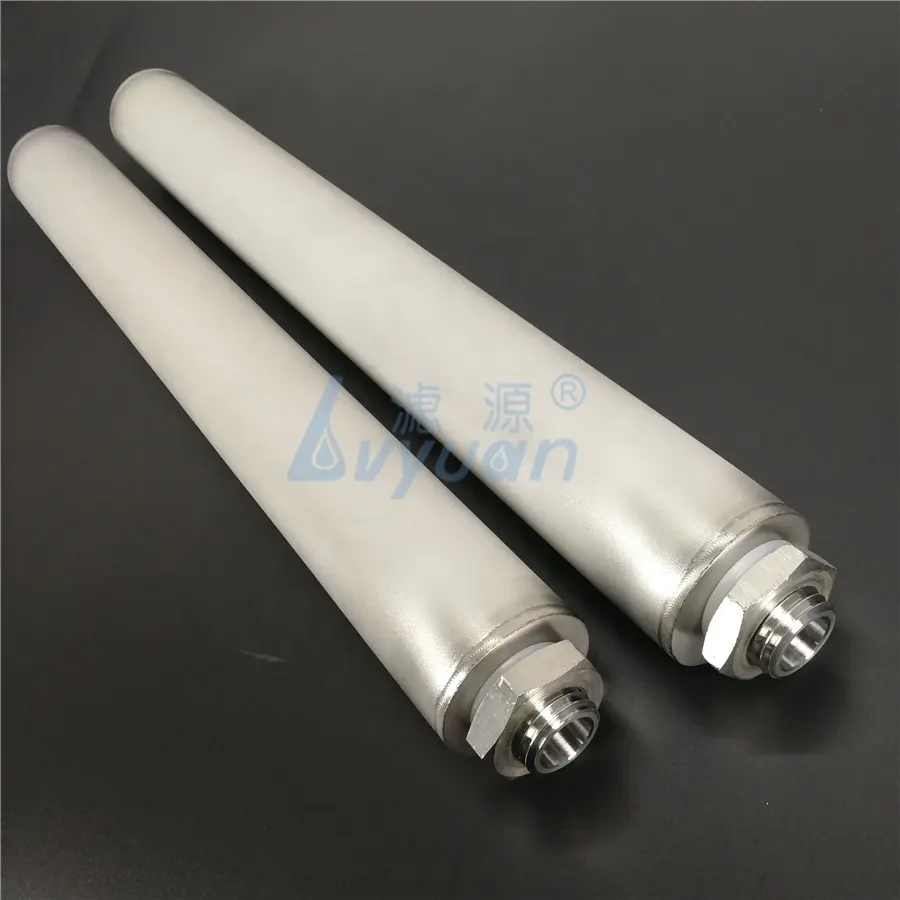

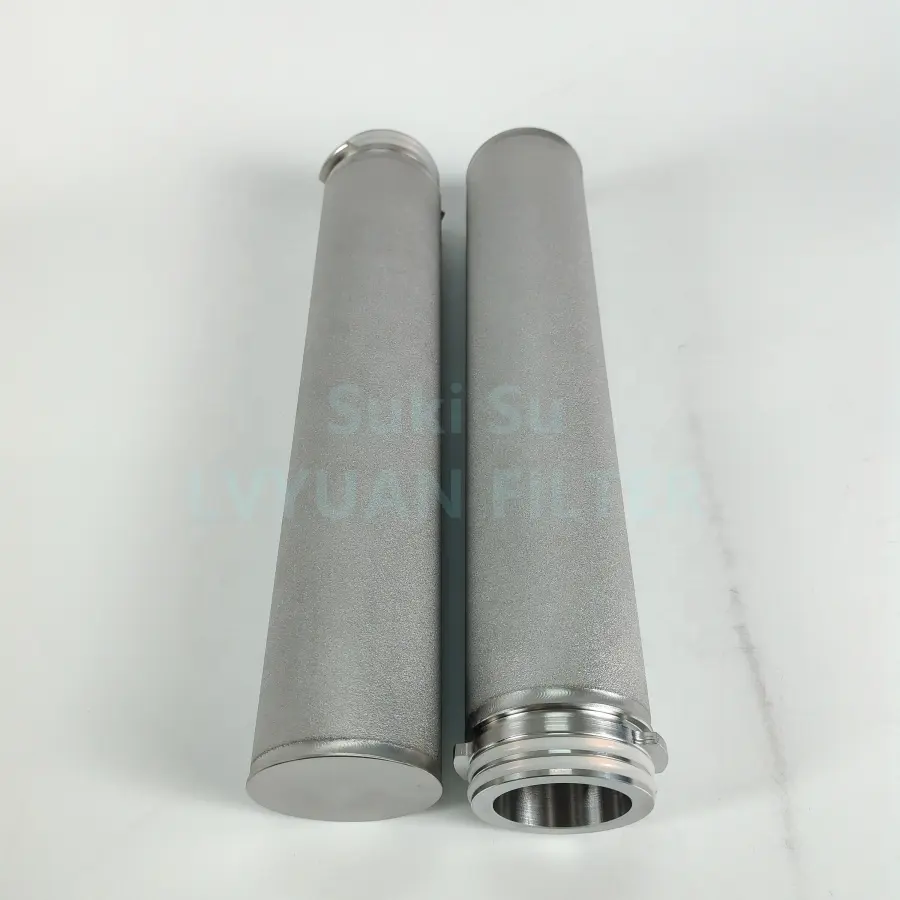

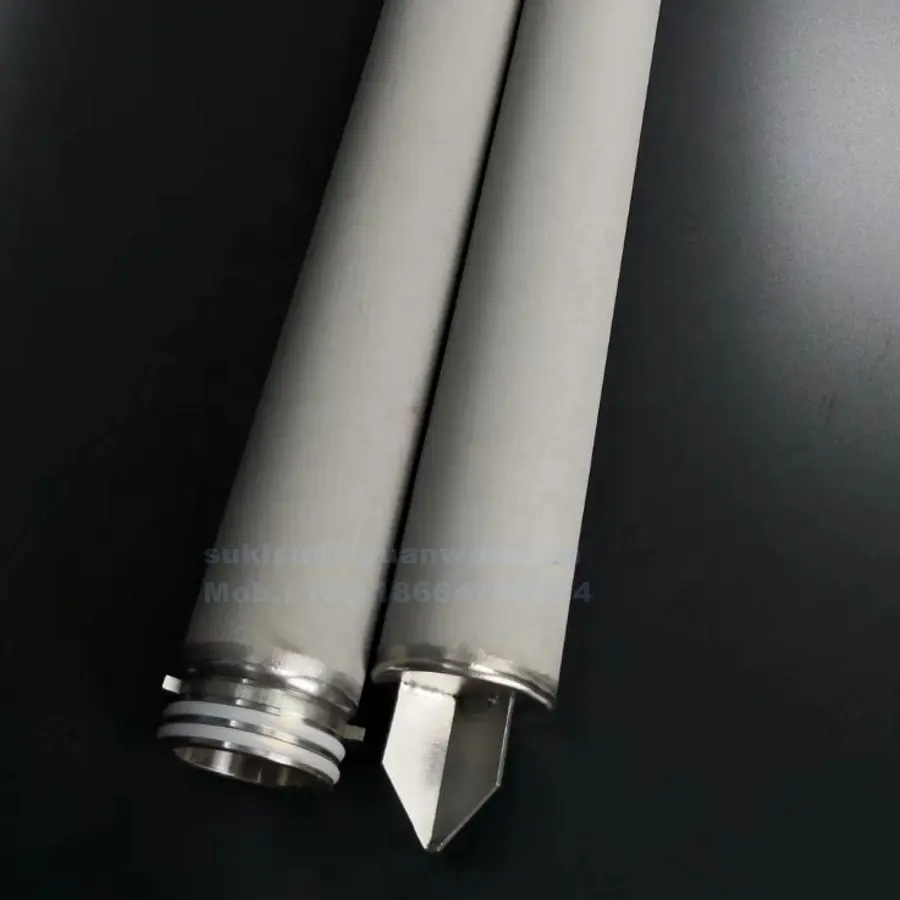

Sintered Porous Stainless Steel SUS316 Powder Filter Cartridge

Customized Porous Stainless Steel Filter cartridge with SS support Frame

0.2 0.22 um Micron compressed air line filter for Sinter Stainless steel precision filter cartridge element

Non-standard Stainless steel filter cartridge specifications (special size, shape, connection, etc) can be customized according to customer's requirement.

Fiter Cartridge dimensions
Length	5'' (125mm), 10'' (250mm), 20'' (500mm), 30'' (750mm), 40'' (1000mm)
Diameter	Ø25, 30, 50, 60, 65, 70mm
Other dimensions	Customized by customer's request.
Material of constructions
Filter media	SUS304, 316, 316L stainless steel
Connector type	Flat, Insert type, Thread type, Fin
End caps	DOE, SOE, 215, 222, 226, M20, M30, M42, 1'' NPT/BSP or as request.
Outside protection net	Optional
Sealing material	Silicone, NBR, EPDM, Buna, Teflon, etc
Performance
Removal rate	1, 3, 5, 10,20, 30, 40, 50, 100um, etc
Effective Surface area	0.65sqm per 10" cartridge element
Operation Temperature	≦480℃
Cleaning method	back flushing, ultrasonic or other non-abrasive cleaning
Maximum Operating Pressure differential	4.0bar

Features:

1.Excellent mechanical strength.2. High dirt holding capacity.3. High pressure resistance, withstand capacity and low pressure drop.4. Temperature ratings from -73°C to 480°C.5. Various micron ratings available from 2um to 1000um nominal.6. Back flushing and cleanable for long service life.7. Strong corrosion resistant for wide chemical compatibility.8.High permeability, no media migration.9.Customized dimension are welcome.

Application

Stainless steeel Filter Cartridge Applications:1. Water filtrations2. Hydraulics3. Automotive4. Pneumatics5. Chemical6. Petrochemical7. Medical8. Oil & gas9. Aeronautical10. Mining11. Food & beverage12. Pharmaceutical

Products Show

stainless steel wire mesh filter cartridge

Various mesh or filtration micron rate available for option.

Slim size 2.5'' OD, and Jumbo cartridge 4.5'' OD.
