Sintered Ss Filters for Manufacturing Factory

Company Advantages

· sintered ss filters also has aesthetic advantages.

· The product has an internationally-certified quality and has a longer service life compared with others.

· Guangzhou Lvyuan Water Purification Equipment Co., Ltd.'s professional production of sintered ss filters has a history of more than ten years.

Overview

Quick Details

Condition:

New

Applicable Industries:

Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops

After Warranty Service:

Online support

Local Service Location:

none

Showroom Location:

none

Video outgoing-inspection:

Provided

Machinery Test Report:

Provided

Marketing Type:

Ordinary Product

Warranty of core components:

1 Year

Core Components:

Pressure vessel

Place of Origin:

Guangdong, China

Brand Name:

Lvyuan/OEM

Warranty:

1 Year

After-sales Service Provided:

Online support

Product name:

sintered metal cartridge filters

Micron Rate:

0.1 to 400 micron

OEM dimension:

Available

Length:

5", 10", 20", 30", 40", 50'', 60'' inch

Material:

304/316L, titanium, Inconel-600

Interface form:

222,226,215, M36, M24, M22, M20 thread interface

Layer:

powder/pleated/mesh cartridge filter

Usage:

gas, liquid filtration

Heat resistence:

- 200 -- 500 degree

Working pressure:

0.1 to 30Mpa

Online Customization

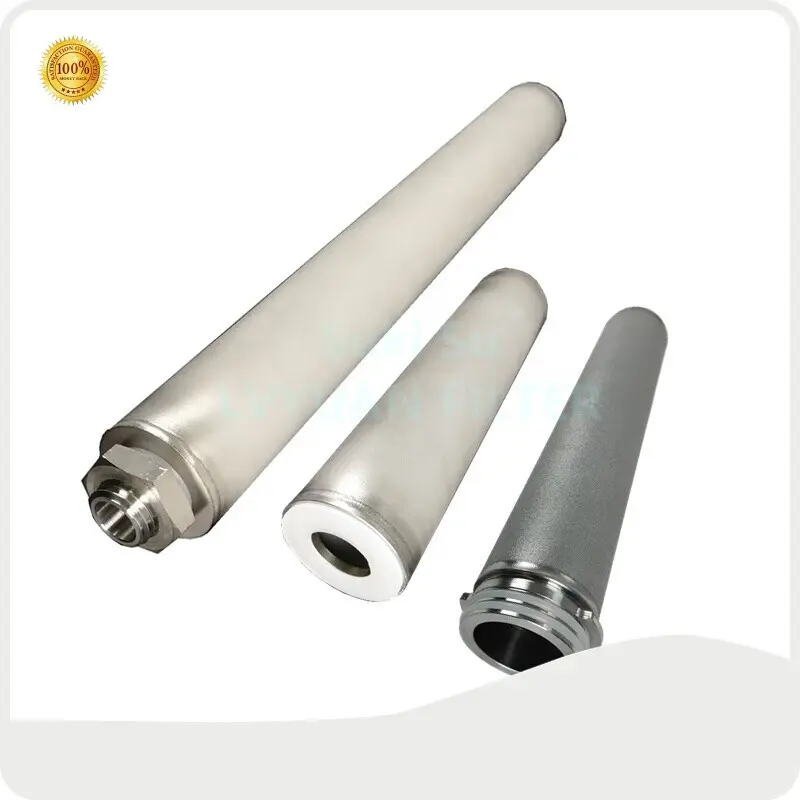

Porous SS/Titanium/Inconel-600 Sintered Metal Cartridge Filter for 0.2 1 3 um water liquid treatment filters cartridges factory

Product Description

Plain cylindrical design Stainless Steel Wire Mesh filter cartridge

Pleated configuration design Stainless Steel folded mesh filter cartridge

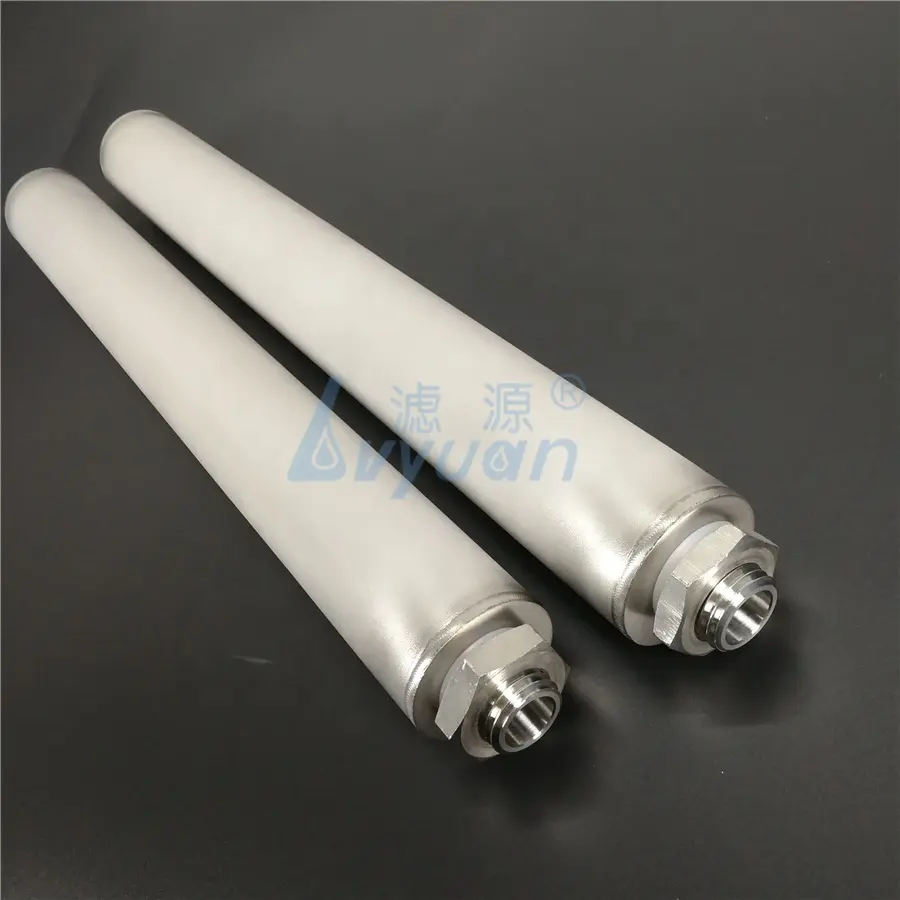

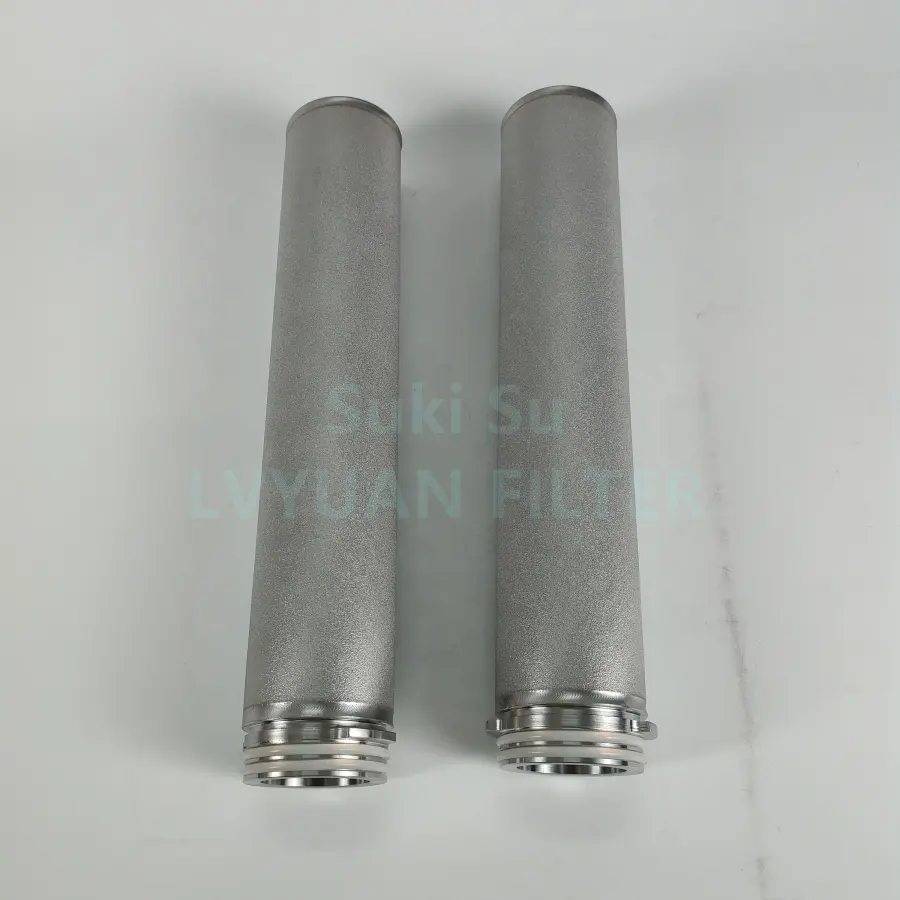

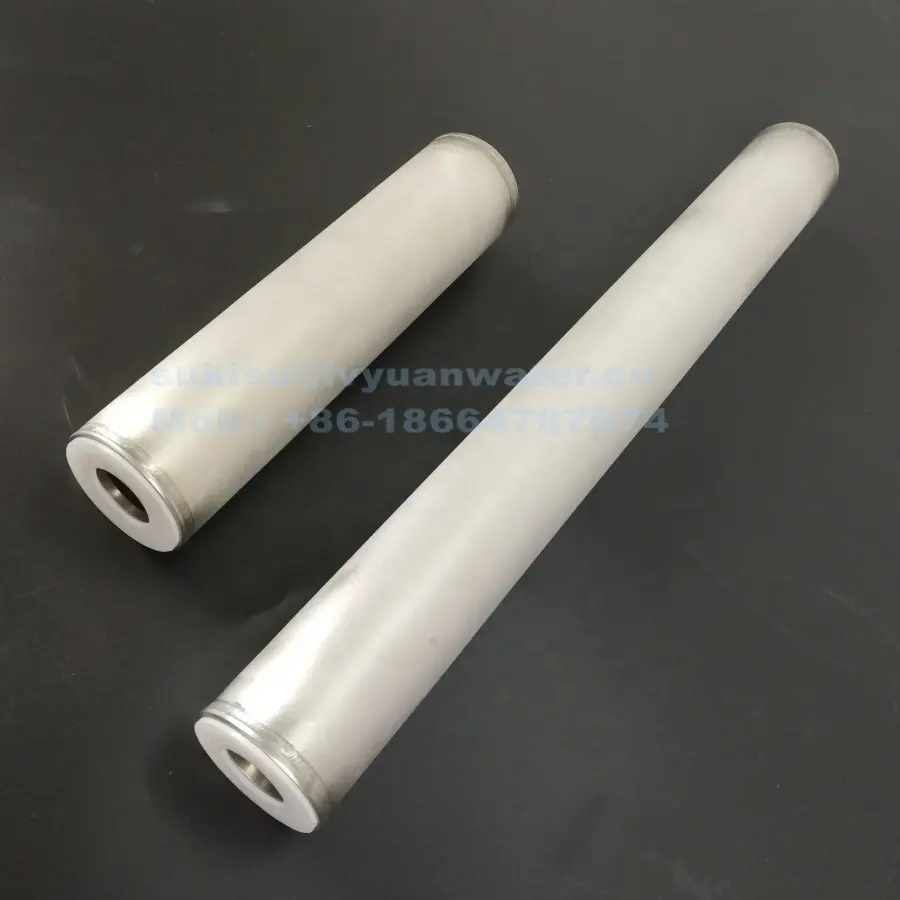

Sintered Porous Stainless Steel SUS316 Powder Filter Cartridge

Customized Porous Stainless Steel Filter cartridge with SS support Frame

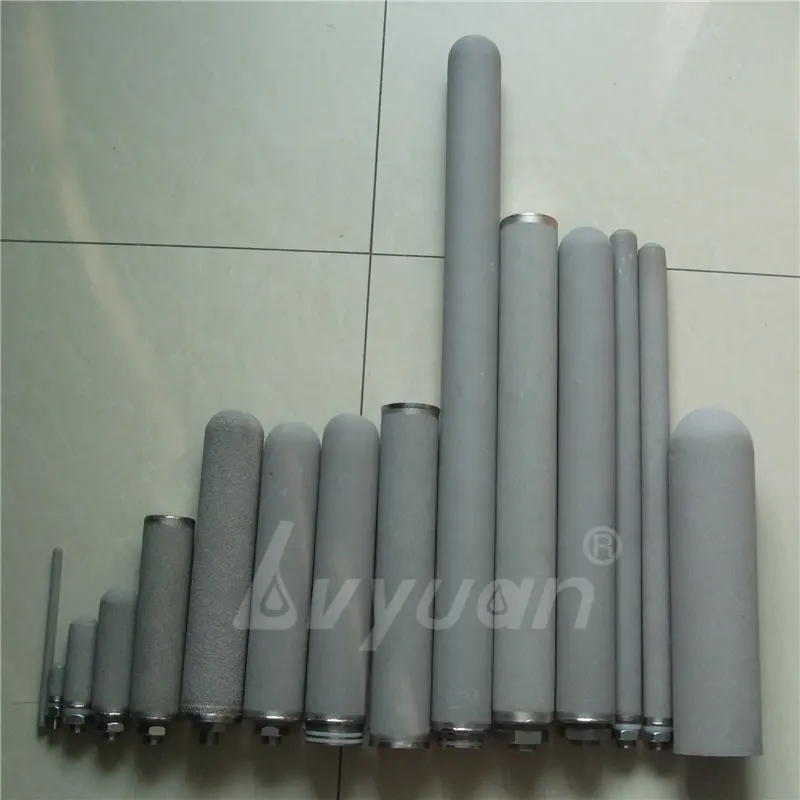

Porosity 0.5 1 5 10 25 50 75 100 um micron Sintered Porous Stainless Steel Filter tube from cartridge filters supplier China

Non-standard Stainless steel filter cartridge specifications (special size, shape, connection, etc) can be customized according to customer's requirement.

Fiter Cartridge dimensions
Length	5'' (125mm), 10'' (250mm), 20'' (500mm), 30'' (750mm), 40'' (1000mm)
Diameter	Ø25, 30, 50, 60, 65, 70mm
Other dimensions	Customized by customer's request.
Material of constructions
Filter media	SUS304, 316, 316L stainless steel, titanium, Inconel-600
Connector type	Flat, Insert type, Thread type, Fin
End caps	DOE, SOE, 215, 222, 226, M20, M30, M42, 1'' NPT/BSP or as request.
Outside protection net	Optional
Sealing material	Silicone, NBR, EPDM, Buna, Teflon, etc
Performance
Removal rate	0.2, 0.45, 1, 3, 5, 10, 20, 25, 30, 40, 50, 100um, micron etc
Effective Surface area	0.65sqm per 10" cartridge element
Operation Temperature	≦480℃
Cleaning method	back flushing, ultrasonic or other non-abrasive cleaning
Maximum Operating Pressure differential	4.0bar

Features:

1.Excellent mechanical strength.2. High dirt holding capacity.3. High pressure resistance, withstand capacity and low pressure drop.4. Temperature ratings from -73°C to 480°C.5. Various micron ratings available from 2um to 1000um nominal.6. Back flushing and cleanable for long service life.7. Strong corrosion resistant for wide chemical compatibility.8.High permeability, no media migration.9.Customized dimension are welcome.

Application

Stainless steeel Filter Cartridge Applications:1. Water filtrations2. Hydraulics3. Automotive4. Pneumatics5. Chemical6. Petrochemical7. Medical8. Oil & gas9. Aeronautical10. Mining11. Food & beverage12. Pharmaceutical

Products Show

stainless steel wire mesh filter cartridge

Various mesh or filtration micron rate available for option.

Slim size 2.5'' OD, and Jumbo cartridge 4.5'' OD.

Our Company

Factory

Our Factory

Workshop

Our Workshop

Warehouse

Our Warehouse

Team

Our Team

Our Certifications

Customer Photo

Contact

Company Features

· Our sintered ss filters are produced by our advanced technology and well-equipped facilities.

· Guangzhou Lvyuan Water Purification Equipment Co., Ltd. has mature production technology and perfect quality guarantee system.

· Our high-quality products, including sintered ss filters, will surely meet your expectations.

Product Details

With a focus on product quality, Lvyuan Water Purification Equipment strives for quality excellence in the production of sintered ss filters.

Product Comparison

Compared with products in the same category, Lvyuan Water Purification Equipment 's sintered ss filters has the following outstanding features.

Enterprise Advantages

Lvyuan Water Purification Equipment has a professional technical team and an excellent R&D team. We also gather a specialized management team whose team members are diligent and are brave in innovation. A new chapter of glorious development is written with our wisdom.

Lvyuan Water Purification Equipment adheres to the service tenet that we always consider for customers and share their worries. We are committed to providing excellent services.

Lvyuan Water Purification Equipment sticks to the core value of 'high level, high quality, and high value'. We always seize the opportunity and develop with the times. With the enterprise spirit, we intend to be tough, determined and tenacious. We look forward to cooperating with more outstanding companies in the industry and creating a wonderful future.

Established in Lvyuan Water Purification Equipment is a modern enterprise that stands out in the years of competition.

The main brand of our company has become a favorite in the market, which is not only widely praised in the domestic market, but also has been favored by consumers in the international market.
