Sintered Stainless Steel Filter Elements Within 7 Working Days - - Lvyuan Filter

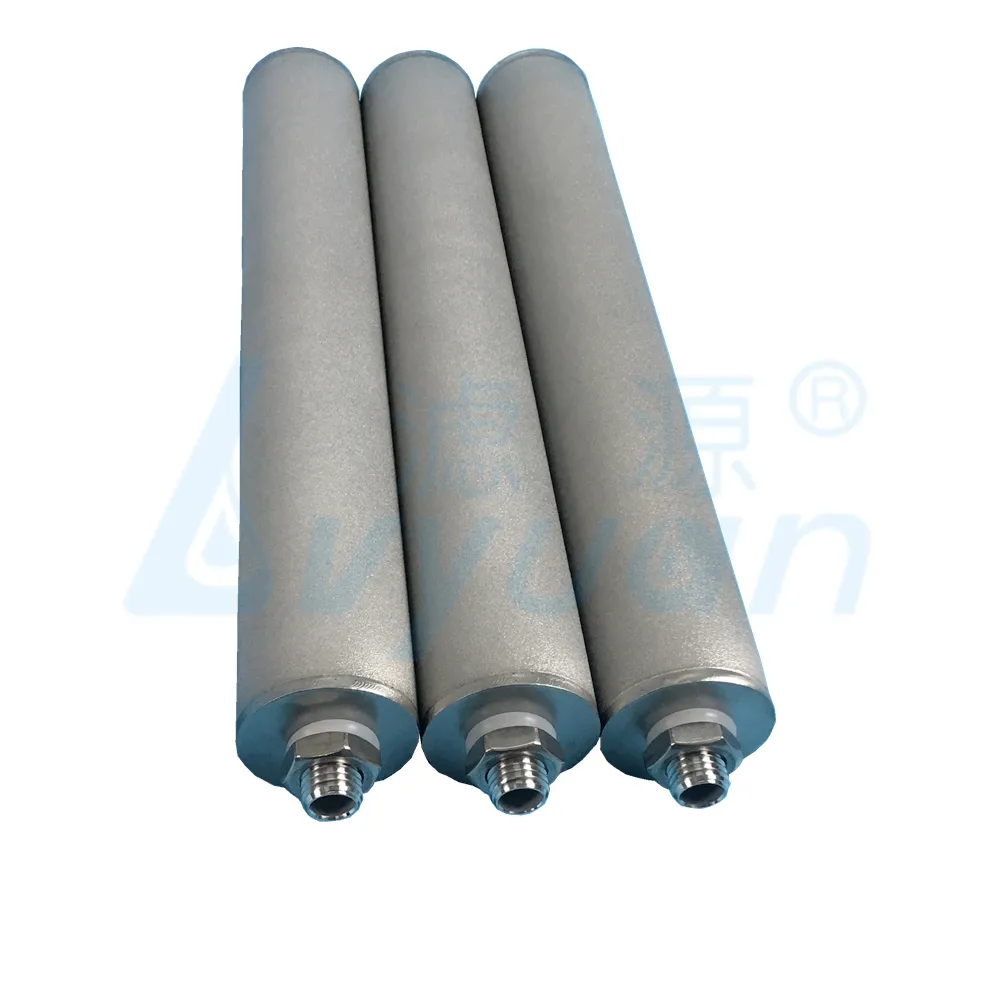

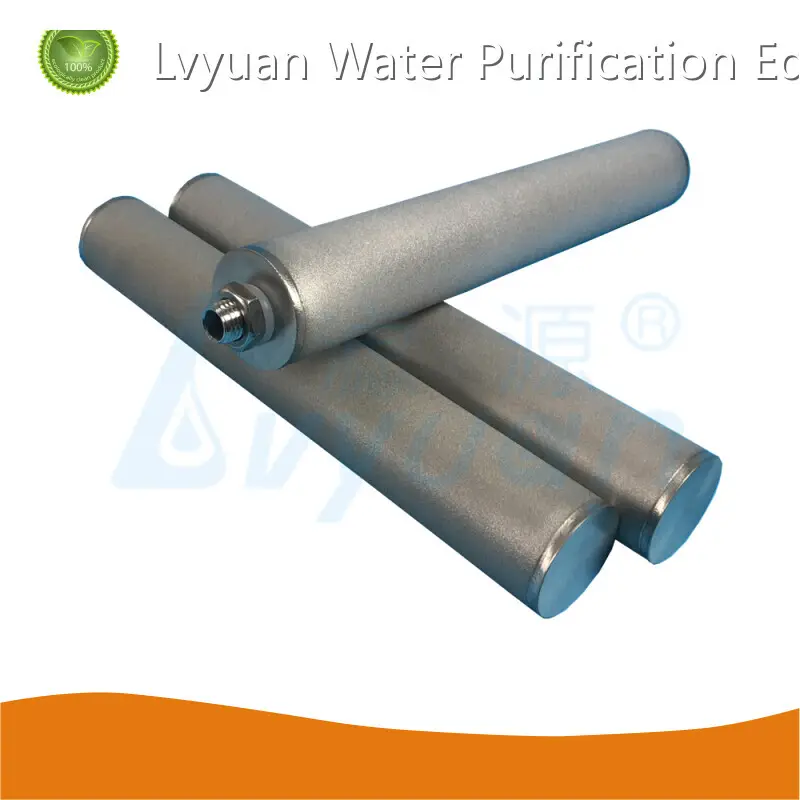

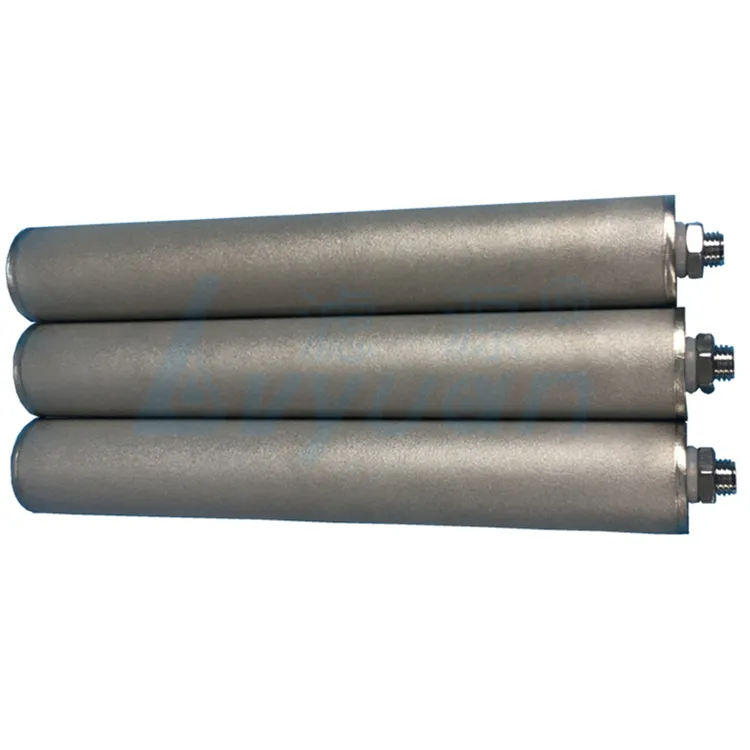

Product details of the sintered stainless steel filter elements
Product Description
Lvyuan Filter sintered stainless steel filter elements is manufactured utilizing premium quality materials sourced from the certified vendors. The performance of the product conforms to the very latest quality standards. Guangzhou Lvyuan Water Purification Equipment Co., Ltd. offers after sales technical service support to its overseas customers.
The sintered metal filter cartridge is made by molding of stainless powder through high temperature sintering, also it adopts unique technology and strictly control production technique(include power grain distribution, molding and sintering).
The stainless steel sintered filters are characterized by high machinery strength, high conditions can be adjusted so as to produce the porous metal sintered filter with a wider precision scope. High-temperature resistance and Good air permeability.
Lvyuan Filter’s metal filter cartridge with excellent machinery strength, applicable to the high temperature, high pressure and strong corrosivity.
◆◆ Main application cases
1. Filtration and recovery of catalyst.
2. Hot gas filtration in petrochemical industry
3. Purification of high temperature flue gas of metallurgy industry
4. Dust recovery of solid emulated bed and gas
5. Dust and end gas purification of thermal power and nuclear electric power generation.
Product Feature
◪ High-porosity and good air permeability, no media migration.
◪ High dirt holding capacity.
◪ High pressure resistance, withstand capacity and low pressure drop.
◪ High temperature resistance，Especially applicable to the hot gas filtration
◪ Various micron ratings available from 1 μm to 200 μm nominal.
◪ Strong corrosion resistant for wide chemical compatibility.
◪ Made entirely of SS316 or SS316L, cleanable and reusable
◪ Customized dimension are welcome.
Product Parameter
Lvyuan Filter's sintered filter cartridges are made through a process of fusing multiple layers of metal or polymer fibers under intense heat and pressure, these sintered cartridge filter offer exceptional durability and performance. With a porous structure, sintered SS filter cartridges excel in trapping fine particles while maintaining high flow rates.
| Fiter Cartridge dimensions | |
| Length | 5’’ (125mm), 10’’ (250mm), 20’’ (500mm), 30’’ (750mm), 40’’ (1000mm) |
| Diameter | Ø60, 65, 70, 80 mm |
| Other dimensions | Customized by customer’s request. |
| Material of constructions | |
| Filter media | SUS316， 316L stainless steel |
| Connector type | Flat, Insert type, Thread type, Fin |
| End caps | DOE, SOE, 215, 222, 226, M20, M30, M42, 1’’ NPT/BSP or as request. |
| Sealing material | Silicone, NBR, EPDM, Buna, Teflon, etc |
| Performance | |
| Removal rate | 0.2-200 μm, etc |
| Operation Temperature | ≥ -270ºC, ≤500ºC |
| Cleaning method | back flushing, ultrasonic or other non-abrasive cleaning |
| Maximum Operating Pressure differential | 4.0 bar |
Product Details
porous stainless steel filter with a wider precision scope.
Product Applications
Whether you need stainless steel filter elements for water treatment plant, sintered filter cartridges for beverage industry, or customized services, Lvyuan Filter can provide it!
Company Feature
• Established in Lvyuan Water Purification Equipment has a development history of years. We accumulate rich professional know-how and experience in the machinery production.
• Lvyuan Water Purification Equipment 's water filter cartridges,cartridge filter manufacturer,cartridge housing manufacture have reasonable design and compact structure. They are stable in performance as well as easy in operation and installation.
• In order to develop continuously, our company has a group of professional personnel. Based on the professional techniques and high quality, they do well in developing products and providing after-sales service.
• We select high-quality products for delivery, and manage them in integrity. They are exported to major cities and highly praised by consumers.
• Lvyuan Water Purification Equipment always insists on the principle to be professional and responsible. We are dedicated to providing quality products and convenient services.
Leave your contact information and get Lvyuan Water Purification Equipment 's limited samples for free!
