porous sintered plastic filter manufacturer for food and beverage1
1. With the assistance of our state-of-the-art technology and proficient team members, Lvyuan sintered stainless steel filter elements has delicate workmanship. It features a high flow rate and stable filtering accuracy
2. The product is fire-proof, protecting the item from damaging. People will find it especially beneficial when using it in item decorations. It has found a variety of applications ranging from industrial, chemical process, food and beverage, cosmetics and water
3. Our professional quality check team conducts strict quality inspections for the sake of high quality. It will not impart taste, odor, or color to the filtered product
4. The product is of superior quality that sets a new standard in the industry. Customized end cap configurations are available to fit specific requirements

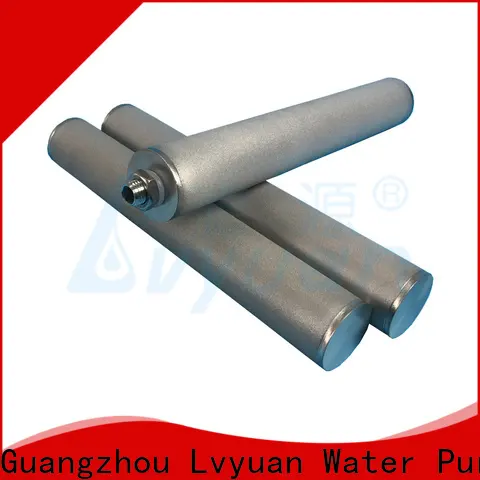

The stainless powder sintered filter is made by molding of stainless powder through high temperature sintering, also it adopts unique technology and strictly control production technique(include power grain distribution, molding and sintering).
The filter is characterized by high machinery strength, high conditions can be adjusted so as to produce the porous metal sintered filter with a wider precision scope. High-temperature resistance and Good air permeability.
Excellent machinery strength, applicable to the high temperature, high pressure and strong corrosivity.
◆◆ Main application cases
1. Filtration and recovery of catalyst.
2. Hot gas filtration in petrochemical industry
3. Purification of high temperature flue gas of metallurgy industry
4. Dust recovery of solid emulated bed and gas
5. Dust and end gas purification of thermal power and nuclear electric power generation.
Product Feature
◪ High-porosity and good air permeability, no media migration.
◪ High dirt holding capacity.
◪ High pressure resistance, withstand capacity and low pressure drop.
◪ High temperature resistance，Especially applicable to the hot gas filtration
◪ Various micron ratings available from 1 μm to 200 μm nominal.
◪ Strong corrosion resistant for wide chemical compatibility.
◪ Made entirely of SS316 or SS316L, cleanable and reusable
◪ Customized dimension are welcome.
Product Parameter
| Fiter Cartridge dimensions | |
| Length | 5’’ (125mm), 10’’ (250mm), 20’’ (500mm), 30’’ (750mm), 40’’ (1000mm) |
| Diameter | Ø60, 65, 70, 80 mm |
| Other dimensions | Customized by customer’s request. |
| Material of constructions | |
| Filter media | SUS316， 316L stainless steel |
| Connector type | Flat, Insert type, Thread type, Fin |
| End caps | DOE, SOE, 215, 222, 226, M20, M30, M42, 1’’ NPT/BSP or as request. |
| Sealing material | Silicone, NBR, EPDM, Buna, Teflon, etc |
| Performance | |
| Removal rate | 0.2-200 μm, etc |
| Operation Temperature | ≥ -270ºC, ≤500ºC |
| Cleaning method | back flushing, ultrasonic or other non-abrasive cleaning |
| Maximum Operating Pressure differential | 4.0 bar |
Product Details
Product Applications
Company Features
1. Guangzhou Lvyuan Water Purification Equipment Co., Ltd. is a reliable Chinese company. We have years of experience in the design, manufacture, wholesale, and marketing of sintered stainless steel filter elements . Lvyuan has been more competitive for its high-quality sintered plastic filter .
2. Guangzhou Lvyuan Water Purification Equipment Co., Ltd. has attracted and nurtured a large number of senior technical management elites in sintered metal filters suppliers industry.
3. sintered powder ss filter enjoys good quality performance and wins more favors from customers. sintered metal filter elements is Guangzhou Lvyuan Water Purification Equipment Co., Ltd.'s business philosophy. Contact us!
