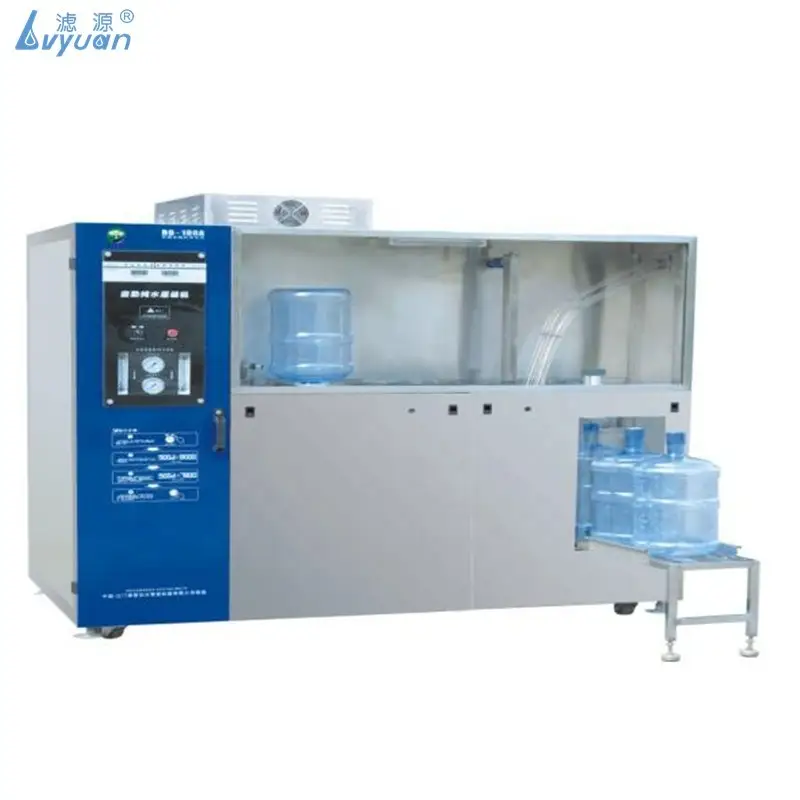

Price 3000GPD 500lph Integrated Automatic Pure RO Drinking Water Bottle Vending Machine with Washing/filling/Capping 1
Price 3000GPD 500lph Integrated Automatic Pure RO Drinking Water Bottle Vending Machine with Washing/filling/Capping 2
Price 3000GPD 500lph Integrated Automatic Pure RO Drinking Water Bottle Vending Machine with Washing/filling/Capping 1
Price 3000GPD 500lph Integrated Automatic Pure RO Drinking Water Bottle Vending Machine with Washing/filling/Capping 2

Price 3000GPD 500lph Integrated Automatic Pure RO Drinking Water Bottle Vending Machine with Washing/filling/Capping

    oops...!

    no product data.

    Go to homepage
    Overview
    Quick Details
    Place of Origin:
    Guangdong, China
    Brand Name:
    Guangzhou Lvyuan
    Material:
    stainless steel
    Weight:
    depends
    Size:
    195x101x169cm
    Power:
    depends
    Warranty:
    1 Year
    After-sales Service Provided:
    Online support
    Product name:
    ro vending machine
    Water output:
    250/500/750/1000/2000 LPH
    Certification:
    ISO9001, SGS
    Bottle Function:
    Washing/Purifying/Filling/Capping
    Feature:
    Integrative RO+Water Filling
    Voltage:
    220V, 380V, 415V, 50/60Hz
    Pipe:
    Stainless Steel, UPVC.
    Usage:
    Domestic, Bottle Water, Irrigation, Drinking, etc
    Accept:
    OEM.
    Pre treatment tank:
    FRP, Stainless Steel tank
    Supply Ability
    Supply Ability:
    10 Piece/Pieces per Month ro water bottle
    Video Description

    Price 3000GPD 500lph Integrated Automatic Pure RO Drinking Water Bottle Vending Machine with Washing/filling/Capping



    Integrative ro drinking water bottle filling vending machine Introduction:
    This RO Pure water filling machine for 5 gallon bottle with RO water purification system, it's also integrated functions of automatic bottle washing, filling, capping etc.

    RO water vending machine, pure water capacity:  1300-3000GPD (200~500LPH), 10-30 bottles per hour. (5G=18.9L per bottle)

    Integrative ro drinking water bottle filling vending machine Features:
    1. Luxury stainless steel waterproof cabinet, safe and easy for installation and maintenance.
    2. Advanced reverse osmosis purification technology, 7/8/9 stages (option) of effective water filtration, output water quality meets national standard.
    3.Automatic bottle washing, filling, capping, etc. Intelligent control system, easy to complete bottled water production.
    4. 24 hours UV sterilization to avoid secondary pollution.
    5. Efficient ozone generation and mixing technology, filling water with a normal ozone levels meet the national standards.
    6. Powerful pre-processing, automatic backwash features, full automatically (option).
    7. Can be customized according to customer's request.



    Integrative ro drinking water bottle filling vending machine flowchart:

    Price 3000GPD 500lph Integrated Automatic Pure RO Drinking Water Bottle Vending Machine with Washing/filling/Capping 3



    Integrative automatic ro drinking water bottle filling machine specifications:

    Product nameautomatic ro water bottle filling and vending machine
    Working capacity1300GPD, 1900GPD, 2500GPD, 3000GPD
    Pure water capacity200L/H, 300L/H, 400L/H, 500L/H
    Filling flow rate10 to 30 B/H, 5 Gallon (18.9L) per bottle
    Rated current8.2A, 11.5A, 13.3 A, 16.5A
    Rated Power1.8KW, 2.53KW, 2.93KW, 3.63KW
    Voltage380V/220V/110V, 50/60Hz
    Filtration stagesFeed pump-Quartz Sand filter-Carbon filter-10u PP filter-5u PP filter-RO HP pump-RO membrance-Post carbon-Mineralization-UV-Ozone.
    UV water Sterilzer16W
    Ozone generator3 to 12 g/H
    Water tank220L
    Air pressure0.6--0.7MPa ( you need to outside connect the air pressure compressor )
    Water SourceMunicipal Tap water
    Machine dimensionW 1950 × D 1014 × H 1690 mm
    Application placesResidential area, School, factory, group, station, airport etc, meet self-made bottle pure water need


    Customization services are available. Please kindly advise the raw water, flow rate, usage, and local power supply.



    Pre-Sales Service

    * Inquiry and consulting support.

    * Sample testing support.

    * View our Factory.

    After-Sales Service

    * Training how to install the machine, training how to use the machine.

    * Engineers available to service machinery overseas.


    Successful Cases:



    Price 3000GPD 500lph Integrated Automatic Pure RO Drinking Water Bottle Vending Machine with Washing/filling/Capping 5 Price 3000GPD 500lph Integrated Automatic Pure RO Drinking Water Bottle Vending Machine with Washing/filling/Capping 7

    Price 3000GPD 500lph Integrated Automatic Pure RO Drinking Water Bottle Vending Machine with Washing/filling/Capping 9Price 3000GPD 500lph Integrated Automatic Pure RO Drinking Water Bottle Vending Machine with Washing/filling/Capping 11











    The adoption of this product brings many benefits to manufacturers. It helps manufacturers achieve efficient mass production and increased productivity. Its unique density gradient construction maximizes efficiency and minimizes pressure drop. The benefits of cost savings and profit maximization have motivated many manufacturers to use this product in their manufacturing. Its unique density gradient construction maximizes efficiency and minimizes pressure drop.
