PP pleated filter cartridge deliver high efficiency and consistent filtration of fluids in a wide range of critical applications. They are constructed of pleated membrane filter media that provides removal of particles from 0.1 to 60um, the pore size is not affected by the vibration of
feeding pressure, due to its unique low differential pressure, high flow volume, excellent filtration microns. The high surface area ensures long service life and low initial pressure drops.
Lvyuan Filter-Industrial Water Filter Cartridge & Housing Manufacturer Since 2009.
Professional pleated sediment filter wholesaler for factory
Company Advantages
1. To guarantee the luminous efficiency of Lvyuan stainless steel pleated filter cartridge, its materials have undergone rigorous screening and only those that meet international lighting standards are selected. Customized end cap configurations are available to fit specific requirements
2. With this product, more work can be done with less man input and the cost of production will be decreased. It does not secrete dissoluble material during operation
3. The product has the desired capabilities. It is developed with programs based upon the specifications of the part that defines what operation the product should perform. With a large number of tapered fixing holes inside, it has a high dirt holding capacity
4. This product is safe to use. It uses the appropriate safety devices, including emergency stop buttons and protective covers. It can also filter particulates, microbial organisms, ferric oxide, and other impurities
5. High dimensional accuracy is the prominent point of the product. Advanced cutting tools and techniques are applied to ensure its dimension precision. It is designed with graded pores to help trap contaminants throughout the entire cross section for improved efficiency
![Professional pleated sediment filter wholesaler for factory 6]()

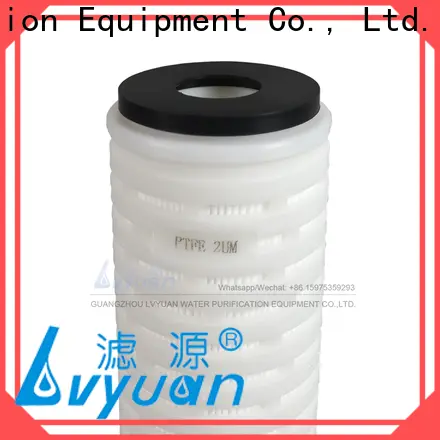

Pleated design DOE EPDM 10 20 30 40 50 60 70 inch PTFE membrane 0.22 micron cartridge filter for pharmacy filtration industry
![Professional pleated sediment filter wholesaler for factory 8]()
![Professional pleated sediment filter wholesaler for factory 10]()
![Professional pleated sediment filter wholesaler for factory 12]()
![Professional pleated sediment filter wholesaler for factory 14]()
Nylon N66 pleated membrane filter cartridge
![Professional pleated sediment filter wholesaler for factory 16]()
![Professional pleated sediment filter wholesaler for factory 18]()
![Professional pleated sediment filter wholesaler for factory 20]()
![Professional pleated sediment filter wholesaler for factory 22]()
![Professional pleated sediment filter wholesaler for factory 24]()
![Professional pleated sediment filter wholesaler for factory 26]()
![Professional pleated sediment filter wholesaler for factory 28]()
![Professional pleated sediment filter wholesaler for factory 30]()
![Professional pleated sediment filter wholesaler for factory 32]()
![Professional pleated sediment filter wholesaler for factory 34]()
![Professional pleated sediment filter wholesaler for factory 36]()
![Professional pleated sediment filter wholesaler for factory 38]()
![Professional pleated sediment filter wholesaler for factory 40]()
![Professional pleated sediment filter wholesaler for factory 42]()
![Professional pleated sediment filter wholesaler for factory 44]()
![Professional pleated sediment filter wholesaler for factory 46]()
![Professional pleated sediment filter wholesaler for factory 48]()
![Professional pleated sediment filter wholesaler for factory 50]()
![Professional pleated sediment filter wholesaler for factory 52]()
![Professional pleated sediment filter wholesaler for factory 54]()
![Professional pleated sediment filter wholesaler for factory 56]()
Company Features
1. Guangzhou Lvyuan Water Purification Equipment Co., Ltd. is one of China's more efficient pleated sediment filter makers. Advanced manufacture technology have been applied for pleated water filters processing methods in Guangzhou Lvyuan Water Purification Equipment Co., Ltd..
2. Owing to stainless steel pleated filter cartridge technology, the quality of pp pleated filter cartridge can be guaranteed.
3. Guangzhou Lvyuan Water Purification Equipment Co., Ltd. has leading technology and highly advanced machines. Our mission is to help customers create something amazing, a product that grabs the attention of their customers. Whatever customers make, we are ready, willing and able to help them differentiate their product in the marketplace. It’s what we do for every one of our customers. Every day. Ask online!
1. To guarantee the luminous efficiency of Lvyuan stainless steel pleated filter cartridge, its materials have undergone rigorous screening and only those that meet international lighting standards are selected. Customized end cap configurations are available to fit specific requirements
2. With this product, more work can be done with less man input and the cost of production will be decreased. It does not secrete dissoluble material during operation
3. The product has the desired capabilities. It is developed with programs based upon the specifications of the part that defines what operation the product should perform. With a large number of tapered fixing holes inside, it has a high dirt holding capacity
4. This product is safe to use. It uses the appropriate safety devices, including emergency stop buttons and protective covers. It can also filter particulates, microbial organisms, ferric oxide, and other impurities
5. High dimensional accuracy is the prominent point of the product. Advanced cutting tools and techniques are applied to ensure its dimension precision. It is designed with graded pores to help trap contaminants throughout the entire cross section for improved efficiency
Product Description
Pleated design DOE EPDM 10 20 30 40 50 60 70 inch PTFE membrane 0.22 micron cartridge filter for pharmacy filtration industry
Microporous pleated filter element, the main filter material is : Polypropylene, Hydrophobic PTFE, Hydrophilic PTFE,Polyether sulfone, Nylon, etc.
Most of the raw materials are imported from abroad.Pleated filter element is a kind of deep filtration filter,it is usuaslly used as liquid overheating,clarification, filtration and terminal filter.
It has the following characteristics: the superfine polypropylene fiber membrane as the filtration medium, low pressure differential, high flux, good filtration precision, lower economic cost.
The whole structure of polypropylene, end cover, housing and center pole adopts polypropylene material; It adopts the hot melt welding process, PP and PP melt bonding,without any binder.
It has wide range of chemical compatibility, and also has a series of pore size and form a variety of interface.Material: Pleated filter, Support layer, End-cover, Inside & Outside cylinder are polypropylene.
Welding: It adopts the uniquehot melting methods, no glue, no foreign body fall off.
Typical use: Pharmaceutical, Food, Chemical, Electronics, Environmental protection, etc.
Microporous membrane pleated filter cartridge main features: High interception rate, high liquidity, low pressure differential and a wide range of chemical compatibility;
The production process adopts unique hot melting process technology, no any adhesive, no foreign body release.
It can meet the food,beverage, beer, chemical, pharmaceutical and other industries production requirements.
Polypropylene microporous membrane filter
PTFE membrane pleated filter
Hydrophobic PTFE filter
The filter medium is Hydrophobic PTFE microporous membrane filter: Strong hydrophobicity,
High holding rate, excellent chemical resistance and thermal stability, good strength, impact resistance of the forward & reverse pressure.
Hydrophilic PTFE filter
The filter element medium for hydrphilic PTFE microporous membrane filter: The hydrophilic stability, high entrapment rate, excellent chemical resistance thermal stability, good strength, impact resistance of the forward & reverse pressure.
Polyether Sulphone PES Pleated Filter
The PES pleated filter cartridge is constructed of imported polyethersulfone(PES) membrane media and non-woven support materials.The material of cage core and end caps are polypropylene.Adapters are thermally welded with media without using any glue, no any pollution. The PES filter cartridge is ideally suited for critical prefiltration in sterilizing applications and final filtration in a broad range of demanding non-sterile application, the inherently hydrophilic membrane contains no surfactant or wetting agents, which results in good filtration and flow rates.
Nylon N66 pleated membrane filter cartridge
The filter medium is hydrophilic nylon microporous membrane filter, It is composed by nylon membrane and the polypropylene support material hot melting, it is no dung, also applicable for the strict chemical and pharmaceutical industries.
PVDF pleated cartridge filter
The PVDF pleated cartridge filter is constructed of imported natural hydrophobic polyvinylenedifluoride(PVDF) membrane media and non-woven support materials. The adaptors are thermally welded with media without using any glue, no any pollution.
High filtration microns, high flow rate, better hydrophobicity, sterilization at high temperature as well as chemical resistance. It is widely used in gas or liquid pre-filtration and widely used in final filtration.
Jumbo pleated membrane filter cartridge
The big jumbo pleated filter cartridge is constructed of deep polypropylene membrane, melt blown polypropylene, hydrophilic PES & PTFE. The non-woven support materials. This filter cartridges design increased the effective filtration area, not only can reduct the filter cartridges quantity, but also it can make the smaller housing size. Big flow rate and long service life, lower cost and human cost. The size is divided into 2 kinds of size: 83mm diameter & 131mm diameter. Adaptors are thermally welded with media without using any glue, no any pollution and droppings. Clean & stable, each filter cartridge has passed strict testing by 100% integrity.
Pleated design DOE EPDM 10 20 30 40 50 60 70 inch PTFE membrane 0.22 micron cartridge filter for pharmacy filtration industry | |||||
Filtration media | PP/PTFE/PES/PVDF/Nylon | ||||
Support material | Polypropylene | ||||
Core & Structural components | Polypropylene | ||||
Inner core | PP/Stainless steel | ||||
Packing method | Polybag/Vacuum | ||||
Filtration precision | 0.1μm, 0.2μm, 0.45μm, 0.65μm,0.8μm,1μm,2μm,3μm,5μm,10μm,20μm,25μm,30μm,50μm | ||||
Length | 2.5", 5". 10", 20", 30", 40", 50", 60", OEM | ||||
Adaptor | 215/222/226/Fin/Flat/Thread/OEM | ||||
Sealing method | Hot melting welding | ||||
Sealing gasket & O-ring material | Silicone rubber; Nitrile butadiene rubber, EPDM, Fluorine rubber. | ||||
Effect filtration area | ≥0.6m² | ||||
Filter cartridge diameter | 69mm | ||||
Max. working temperature | PP: 88℃,0.27Mpa PTFE: 80℃, 0.173Mpa PES: 85℃, 0.28Mpa PVDF: 80℃, 0.173Mpa Nylon: 49℃, 0.21Mpa | ||||
Max. positive differential pressure | 0.42Mpa (25℃) | ||||
Max. back pressure differential pressure | 0.28Mpa (25℃) | ||||
Sterilization conditions | 121℃ 30min | ||||
Applications | Chemical industry; Organic solvents; Various of alcohols; Chemical reagents filtration; Sterile tank breathing apparatus; Pharmaceutical industry; Food industry; Electronic industry; RO water treatment; Medical liquid filtration; | ||||
Detailed Images
DOE opened pleated filter
The membrane's micron rating is optional. Options to order for this site include 0.03 to 0.45 microns in 10" to 40" length with either.
OEM customized size filter
Different length & variety end cap are optional.
Different end caps pleated filter
SDouble Open End (DOE), 222 or 226 end configurations, all come standard with EPDM/PTFE/SILICONE/TEFLON seals.
Application
RO WATER TREATMENT
BOTTLED MINERAL WATER
CHEMICAL TECHNOLOGY FILTRATION
BEER & BEVERAGE FILTRATION
PETROCHMICAL INDUSTRY
SEA DESALINATION WATER EQUIPMENT
Packing & Delivery
Container for shipment
Container for shipment
